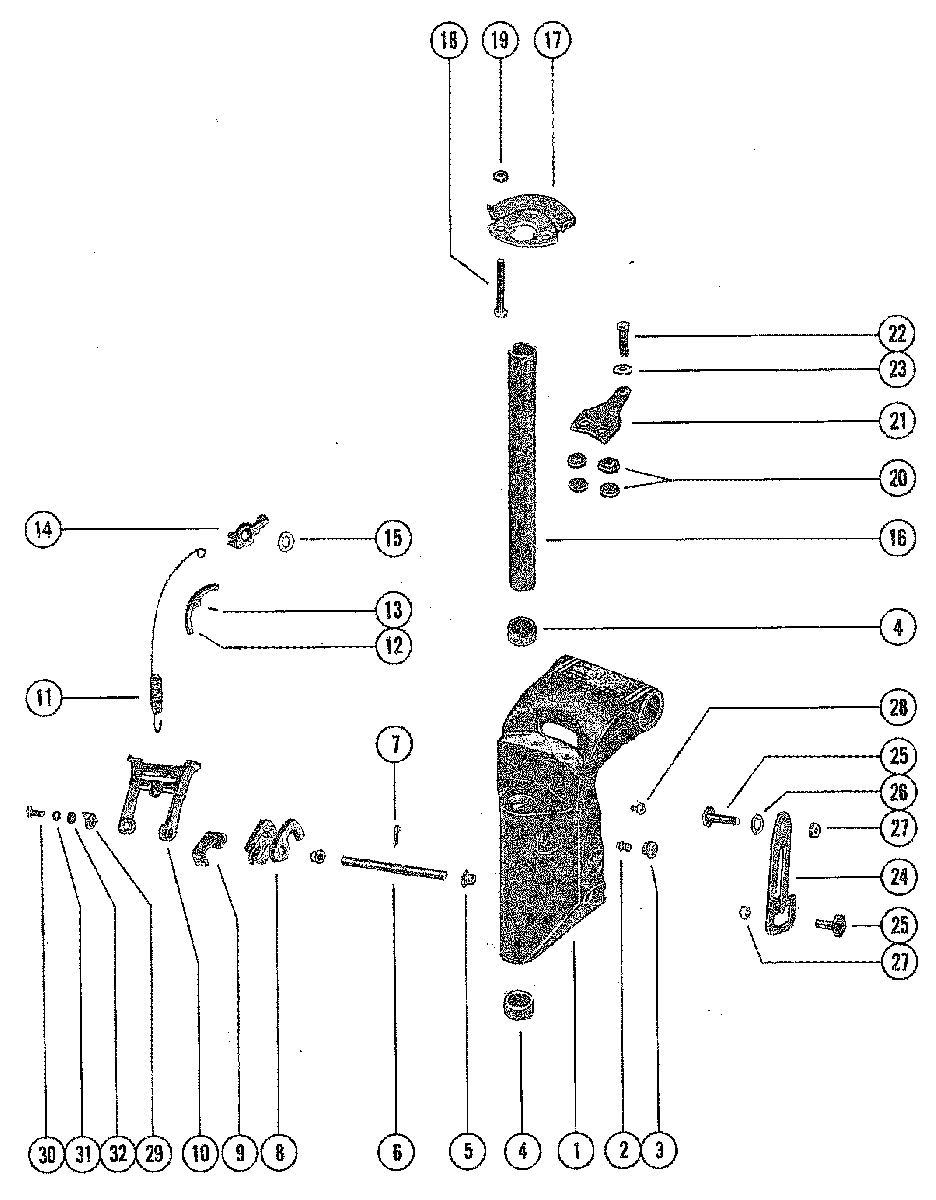

SWIVEL BRACKET ASSEMBLY для Mercury - 75 3801458 THRU 4851692

  • №
    Артикул
    Название
  • 1
    1471-5822A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    0 ₽
  • 1
    1471-5822A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4131610 THRU 4314384
    AUSTRALIA 8028840 THRU 8035569
    BELGIUM 9079489 THRU 9102613
    CANADA 7050208 THRU 7065472
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4131610 THRU 4314384
    AUSTRALIA 8028840 THRU 8035569
    BELGIUM 9079489 THRU 9102613
    CANADA 7050208 THRU 7065472
    0 ₽
  • 1
    1471-7324A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    0 ₽
  • 2
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    340 ₽
  • 2
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    340 ₽
  • 3
    19-77633Q LUBRICAP, GREASE FITTING - SWIVEL BRACKET
    LUBRICAP, GREASE FITTING - SWIVEL BRACKET
    450 ₽
  • 4
    23-64028 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
    0 ₽
  • 5
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
    450 ₽
  • 6
    63551 ROD, REVERSE LOCK TO SWIVEL BRACKET
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    ROD, REVERSE LOCK TO SWIVEL BRACKET
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    0 ₽
  • 6
    71419 ROD, REVERSE LOCK TO SWIVEL BRACKET
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    ROD, REVERSE LOCK TO SWIVEL BRACKET
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    0 ₽
  • 7
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
    280 ₽
  • 8
    63628T LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
    0 ₽
  • 9
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
    640 ₽
  • 10
    63559T BRACKET, TROLL
    BRACKET, TROLL
    0 ₽
  • 11
    24-63630 SPRING, EXTENSION - TROLL BRACKET
    SPRING, EXTENSION - TROLL BRACKET
    0 ₽
  • 12
    63554 GUIDE, SPRING
    GUIDE, SPRING
    0 ₽
  • 13
    17-25319 ROLL PIN, SPRING GUIDE
    ROLL PIN, SPRING GUIDE
    320 ₽
  • 14
    79744 LEVER, CONTROL - TROLL BRACKET
    LEVER, CONTROL - TROLL BRACKET
    0 ₽
  • 15
    13-63631 WASHER, WAVE - TROLL BRACKET LEVER
    WASHER, WAVE - TROLL BRACKET LEVER
    0 ₽
  • 16
    66559 TUBE, SWIVEL BRACKET TO SADDLE
    TUBE, SWIVEL BRACKET TO SADDLE
    0 ₽
  • 17
    77334 CO-PILOT DISC
    UNITED STATES 3801458 THRU 4691221
    AUSTRALIA 8015315 THRU 8045674
    BELGIUM 9043194 THRU 9150904
    CANADA 7028598 THRU 7095422
    CO-PILOT DISC
    UNITED STATES 3801458 THRU 4691221
    AUSTRALIA 8015315 THRU 8045674
    BELGIUM 9043194 THRU 9150904
    CANADA 7028598 THRU 7095422
    0 ₽
  • 17
    77334 CO-PILOT DISC
    UNITED STATES 4691222 AND UP
    AUSTRALIA 8045675 AND UP
    BELGIUM 9150905 AND UP
    CANADA 7095423 AND UP
    CO-PILOT DISC
    UNITED STATES 4691222 AND UP
    AUSTRALIA 8045675 AND UP
    BELGIUM 9150905 AND UP
    CANADA 7095423 AND UP
    0 ₽
  • 18
    10-30679 SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
    SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
    0 ₽
  • 19
    11-24652 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
    130 ₽
  • 20
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    630 ₽
  • 21
    63647 PLATE, CLAMP - CO PILOT
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    PLATE, CLAMP - CO PILOT
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    0 ₽
  • 22
    10-62506 SCREW, CLAMP PLATE ADJUSTING (1 5/8')
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    SCREW, CLAMP PLATE ADJUSTING (1 5/8')
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    0 ₽
  • 21
    72845A1 PLATE ASSEMBLY, CLAMP - CO-PILOT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    PLATE ASSEMBLY, CLAMP - CO-PILOT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 22
    10-76081 SCREW, CLAMP PLATE ADJUSTING
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    SCREW, CLAMP PLATE ADJUSTING
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 23
    12-35462 WASHER, CLAMP PLATE ADJUSTING SCREW
    WASHER, CLAMP PLATE ADJUSTING SCREW
    150 ₽
  • 24
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
    0 ₽
  • 25
    10-41433 SCREW, TILT STOP LEVER
    SCREW, TILT STOP LEVER
    0 ₽
  • 26
    13-31030 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
    140 ₽
  • 27
    11-35888 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
    490 ₽
  • 28
    10-36398 SCREW, SWIVEL BRACKET
    SCREW, SWIVEL BRACKET
    0 ₽
  • 29
    72794 STOP, REVERSE LOCK
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    STOP, REVERSE LOCK
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    0 ₽
  • 30
    10-71056 SCREW, REVERSE STOP TO SWIVEL BRACKET
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    SCREW, REVERSE STOP TO SWIVEL BRACKET
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    0 ₽
  • 31
    13-26992 LOCKWASHER, REVERSE STOP SCREW
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    LOCKWASHER, REVERSE STOP SCREW
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    70 ₽
  • 32
    12-71055 WASHER, REVERSE STOP SCREW
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    WASHER, REVERSE STOP SCREW
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    130 ₽
