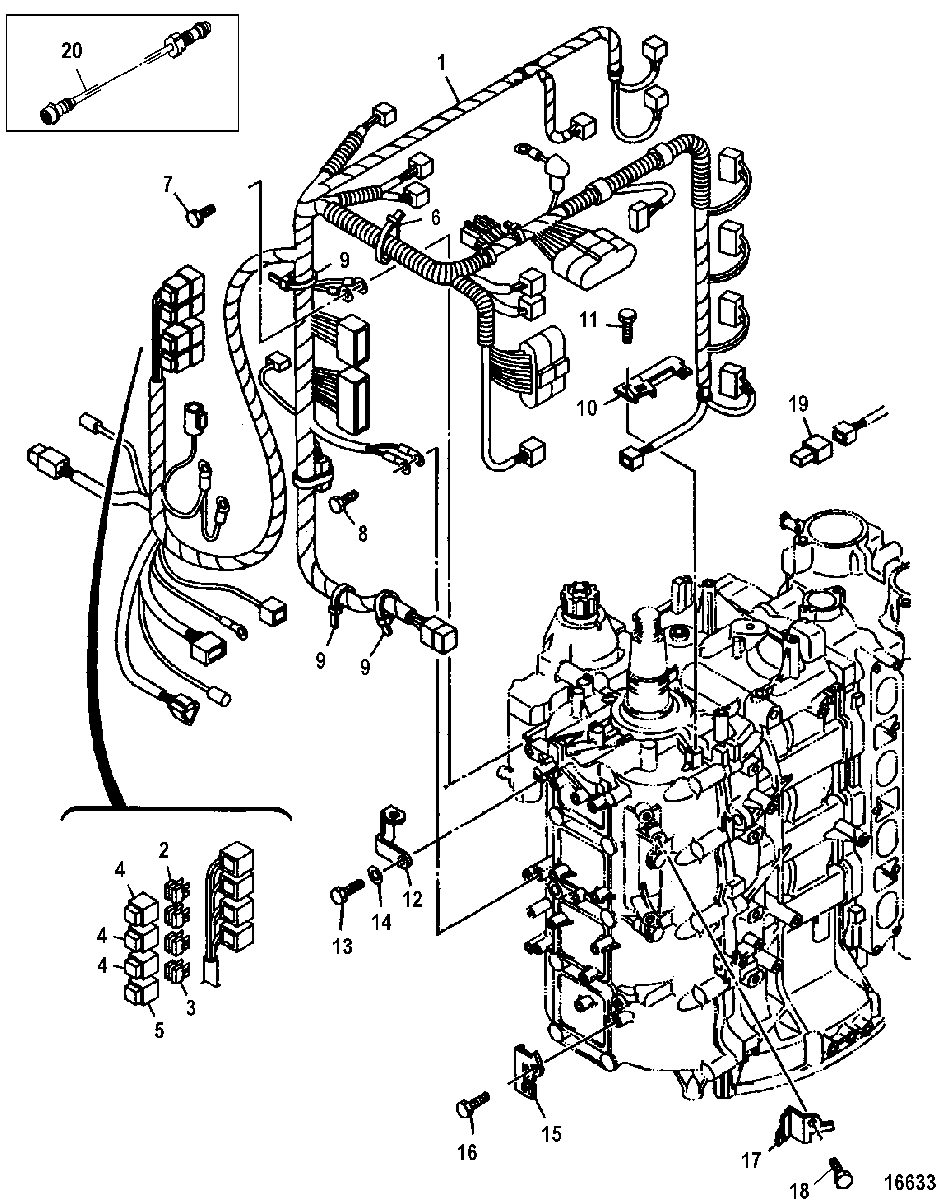

Electrical Components, Engine Wiring Harness для Mercury - 75 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
184-881364T03 HARNESS ASSEMBLY, Engine
(75/90)HARNESS ASSEMBLY, Engine
(75/90) -
184-881364A07 HARNESS ASSEMBLY, Engine
(80/100)HARNESS ASSEMBLY, Engine
(80/100) -
288-832969T20 FUSE, 20 AmpereFUSE, 20 Ampere
-
388-8M0057159 FUSE, 30 AmpereFUSE, 30 Ampere
-
4891824010 COVER, Fuse (Yellow)COVER, Fuse (Yellow)
-
5891824020 COVER, Fuse (Green)COVER, Fuse (Green)
-
654-881530002 CLAMPCLAMP
-
710-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
810-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
108M0059045 PLATEPLATE
-
1110-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
128M0059044 BRACKETBRACKET
-
1310-84368M BOLTBOLT
-
1412-82214M WASHERWASHER
-
158M0059047 PLATEPLATE
-
1610-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
178M0059046 PLATEPLATE
-
1810-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
19888326001 COVERCOVER
-
2015976M EXTENSION
(80/100)EXTENSION
(80/100) -
-8M0094898 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
