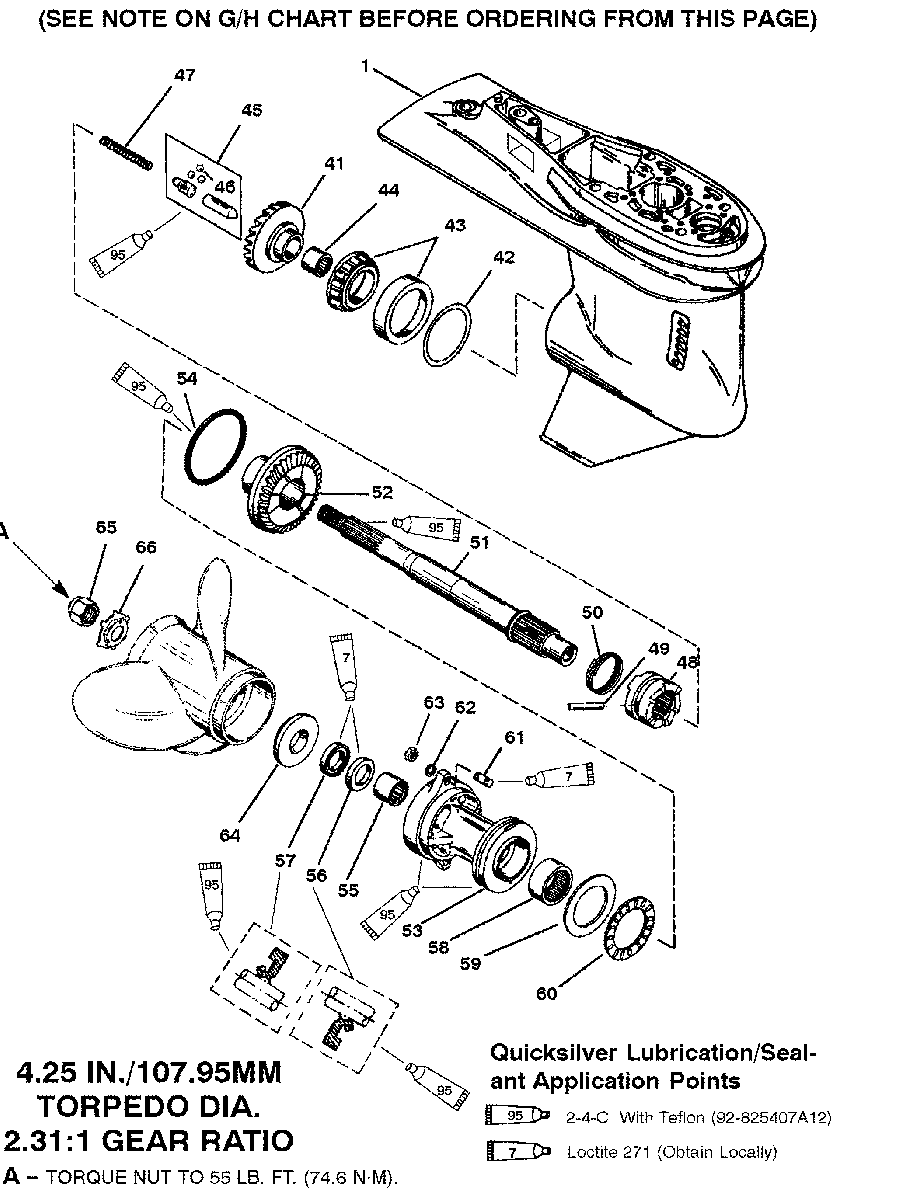

GEAR HOUSING (PROP SHAFT)(6 JAW REVERSE CLUTCH) для Mercury - 75 (3 CYL.) 9793577 THRU 0P016999
-
№АртикулНазвание
-
11667-9011G59 GEAR HOUSING
(BLACK)GEAR HOUSING
(BLACK) -
11667-9011G59 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
4143-859472A3 FORWARD GEAR (30 TEETH)FORWARD GEAR (30 TEETH)
-
4215-8M0063266 SHIM ASSEMBLYSHIM ASSEMBLY
-
4331-30894A1 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
4431-30895T ROLLER BEARINGROLLER BEARING
-
45850315A1 CAM FOLLOWER ASSEMBLYCAM FOLLOWER ASSEMBLY
-
4630-44530 BALLBALL
-
4724-850327 SPRINGSPRING
-
4852-850048T CLUTCHCLUTCH
-
4917-8M0100263 CROSS PINCROSS PIN
-
5024-30893 SPRINGSPRING
-
5144-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
5243-850034T REVERSE GEAR (30 TEETH)REVERSE GEAR (30 TEETH)
-
5312596T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5425-861844 O-RINGO-RING
-
5531-30956T ROLLER BEARINGROLLER BEARING
-
5626-70080 OIL SEAL (INNER)OIL SEAL (INNER)
-
5726-70081 OIL SEAL (OUTER)OIL SEAL (OUTER)
-
5831-12578T ROLLER BEARINGROLLER BEARING
-
5912-12577 THRUST WASHERTHRUST WASHER
-
6031-12576 THRUST BEARINGTHRUST BEARING
-
6116-8M0034456 STUD (M8 X 48)STUD (M8 X 48)
-
6212-855941 WASHERWASHER
-
6311-401378 NUTNUT
-
6413191Q01 THRUST HUB ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTTHRUST HUB ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
6511-52707Q1 PROPELLER NUT ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTPROPELLER NUT ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
6614-816629Q TAB WASHER GEAR HOUSING
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTTAB WASHER GEAR HOUSING
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
-26-43035A4 G/H SEAL KITG/H SEAL KIT
-
-27-43004A99 GASKET SETGASKET SET
