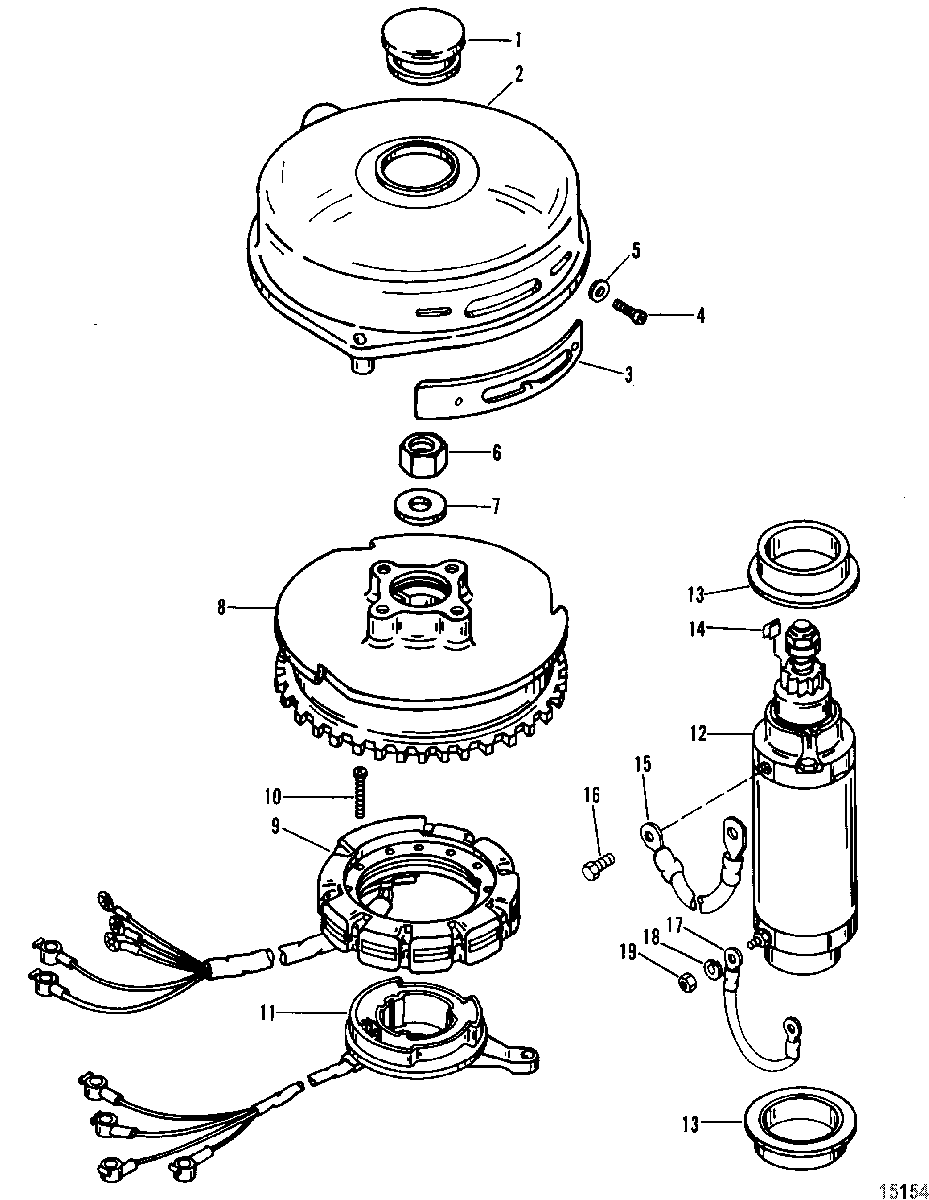

Flywheel and Starter Motor для Mercury - 75 (3 CYL.) 9506481 THRU 9589038

‹-+›
  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, Yellow, Flywheel
    PLUG, Yellow, Flywheel
  • 2
    42956A1 COVER ASSEMBLY, Flywheel
    COVER ASSEMBLY, Flywheel
  • 3
    79022 MARKER, Timing
    MARKER, Timing
  • 4
    10-37572 SCREW, (.190-32 x .380), Timing Marker
    SCREW, (.190-32 x .380), Timing Marker
  • 5
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw
    WASHER, (.203 x .562 x .060) Stainless Steel, Timing Marker Screw
  • 6
    11-42979 NUT, (M16), Flywheel
    NUT, (M16), Flywheel
  • 7
    12-33001 WASHER, (.641 x 1.250 x .190), Flywheel
    WASHER, (.641 x 1.250 x .190), Flywheel
  • 8
    261-859234T30 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 9
    398-8778A10 STATOR ASSEMBLY, Stamped 398-8778A16
    STATOR ASSEMBLY, Stamped 398-8778A16
  • 9
    398-832075A5 STATOR ASSEMBLY, Stamped 398-9710A14
    STATOR ASSEMBLY, Stamped 398-9710A14
  • 10
    10-4007325 SCREW, (M5 x 25), Stator
    SCREW, (M5 x 25), Stator
  • 11
    99021A3 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 12
    50-893891T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 13
    23-8M0034918 COLLAR, Starter Motor
    COLLAR, Starter Motor
  • 14
    8M0043376 STOP, Rubber, Starter Motor
    STOP, Rubber, Starter Motor
  • 15
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, Starter Motor To Plate
    CABLE ASSEMBLY, (6.00 Inches) Black, Starter Motor To Plate
  • 16
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire To Starter Motor
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, Wire To Starter Motor
  • 17
    84-88439A20 WIRE, Starter Motor, Black
    WIRE, Starter Motor, Black
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel, Starter Motor Terminal
    LOCKWASHER, (.250) Stainless Steel, Starter Motor Terminal
  • 19
    11-64015 NUT, (.250-20), Starter Motor Terminal
    NUT, (.250-20), Starter Motor Terminal
