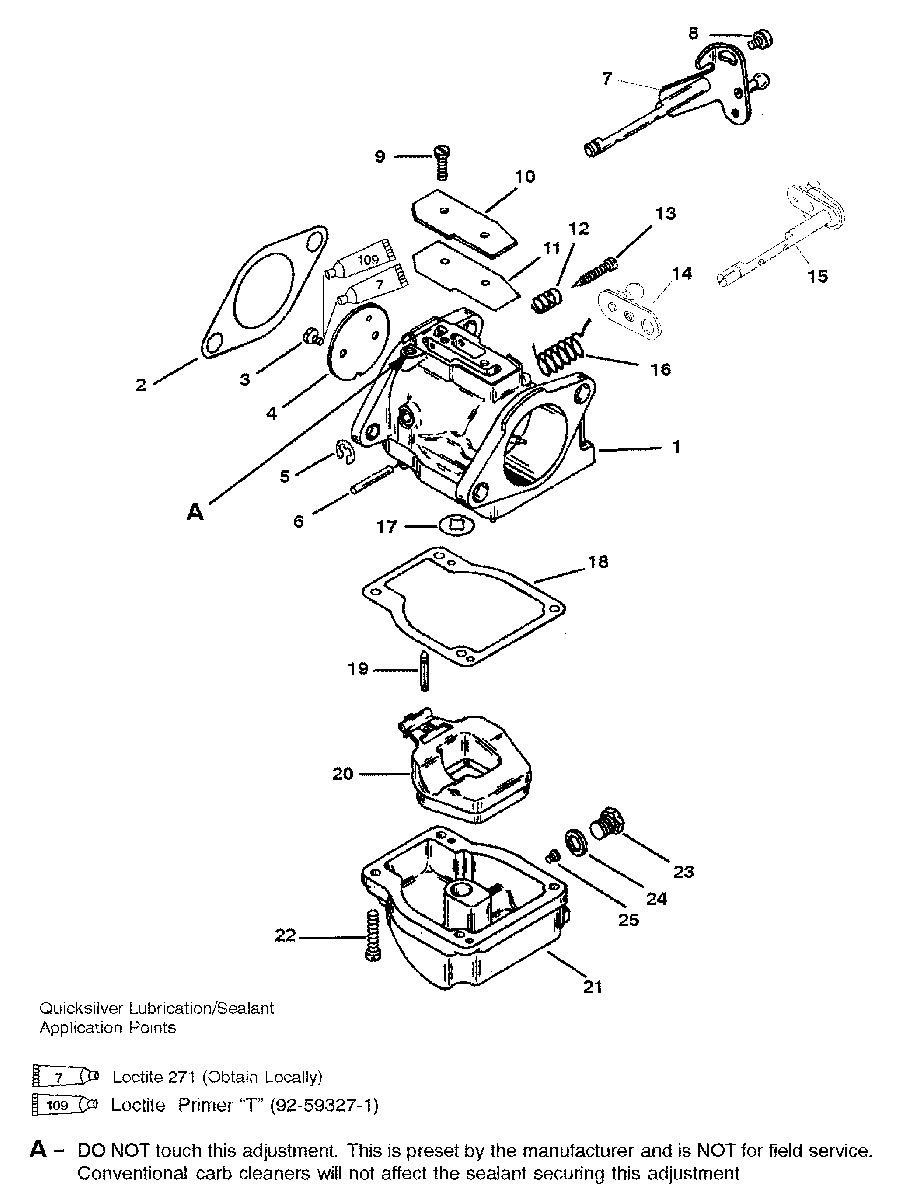

CARBURETOR (WME-59/60/61/62/75/76/77/78) для Mercury - 75 (3 CYL.) 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3301-824924T26 CARBURETOR (TOP)
    75 MANUAL-WME-76
    CARBURETOR (TOP)
    75 MANUAL-WME-76
  • 1
    3301-824924T27 CARBURETOR (CENTER)
    75 MANUAL-WME-76
    CARBURETOR (CENTER)
    75 MANUAL-WME-76
  • 1
    3301-824924T28 CARBURETOR (BOTTOM)
    75 MANUAL-WME-76
    CARBURETOR (BOTTOM)
    75 MANUAL-WME-76
  • 1
    3301-824924T48 CARBURETOR (TOP)
    75 ELECTRIC-WME-75
    CARBURETOR (TOP)
    75 ELECTRIC-WME-75
  • 1
    3301-824924T49 CARBURETOR (CENTER)
    75 ELECTRIC-WME-75
    CARBURETOR (CENTER)
    75 ELECTRIC-WME-75
  • 1
    3301-824924T50 CARBURETOR (BOTTOM)
    75 ELECTRIC-WME-75
    CARBURETOR (BOTTOM)
    75 ELECTRIC-WME-75
  • 1
    3301-824924T29 CARBURETOR (TOP)
    75 ELECTRIC-WME-77 NON -OIL
    CARBURETOR (TOP)
    75 ELECTRIC-WME-77 NON -OIL
  • 1
    3301-824924T30 CARBURETOR (CENTER)
    75 ELECTRIC-WME-77 NON -OIL
    CARBURETOR (CENTER)
    75 ELECTRIC-WME-77 NON -OIL
  • 1
    3301-824924T31 CARBURETOR (BOTTOM)
    75 ELECTRIC-WME-77 NON -OIL
    CARBURETOR (BOTTOM)
    75 ELECTRIC-WME-77 NON -OIL
  • 1
    3301-824854T15 CARBURETOR (TOP)
    90-WME-78
    CARBURETOR (TOP)
    90-WME-78
  • 1
    3301-824854T16 CARBURETOR (CENTER)
    90-WME-78
    CARBURETOR (CENTER)
    90-WME-78
  • 1
    3301-824854T17 CARBURETOR (BOTTOM)
    90-WME-78
    CARBURETOR (BOTTOM)
    90-WME-78
  • 1
    3301-824854T15 CARBURETOR (TOP)
    90-WME-62
    CARBURETOR (TOP)
    90-WME-62
  • 1
    3301-824854T16 CARBURETOR (CENTER)
    90-WME-62
    CARBURETOR (CENTER)
    90-WME-62
  • 1
    3301-824854T17 CARBURETOR (BOTTOM)
    90-WME-62
    CARBURETOR (BOTTOM)
    90-WME-62
  • 2
    27-151724 GASKET-FLANGE
    GASKET-FLANGE
  • 3
    10-F10155 SCREW-THROTTLE VALVE
    SCREW-THROTTLE VALVE
  • 4
    1395-97244 THROTTLE VALVE
    THROTTLE VALVE
  • 5
    90-8M0143356 RETAINING RING
    RETAINING RING
  • 6
    F10064 FLOAT SHAFT
    FLOAT SHAFT
  • 7
    1395-8236321 THROTTLE SHAFT (CENTER)
    THROTTLE SHAFT (CENTER)
  • 8
    1395-823634 SCREW-LEVER ADJUSTMENT
    SCREW-LEVER ADJUSTMENT
  • 9
    1395-811220 SCREW
    SCREW
  • 10
    1395-811221 COVER PLATE
    COVER PLATE
  • -
    1395-8112231 CARB GASKET KIT
    CARB GASKET KIT
  • -
    1395-8236354 CARB REPAIR KIT
    CARB REPAIR KIT
  • -
    27-43004A99 GASKET SET
    GASKET SET
