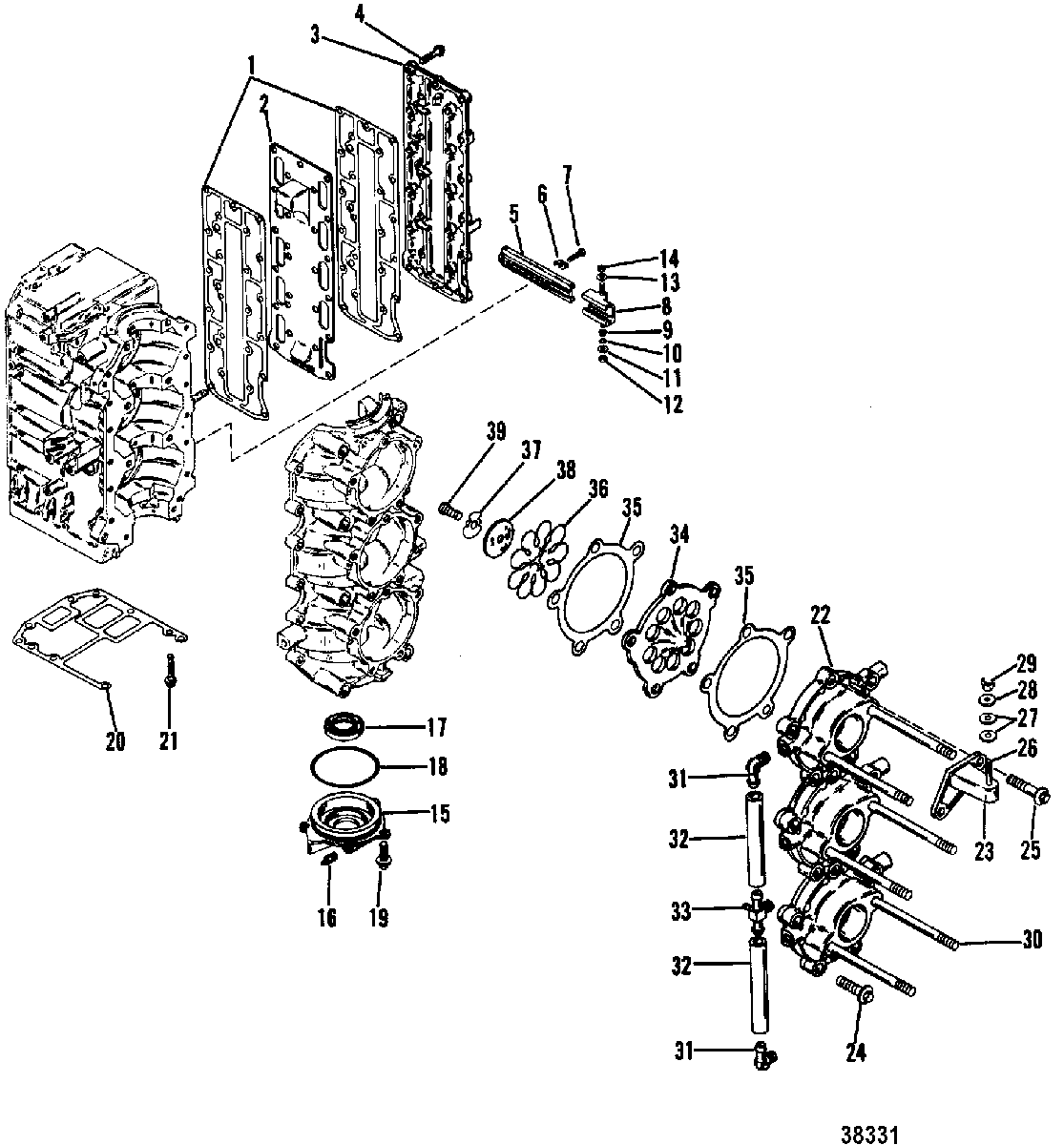

INDUCTION MANIFOLD AND REED BLOCK для Mercury - 75 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
127-43004009 GASKETGASKET
-
242878A2 PLATE, BafflePLATE, Baffle
-
342878A2 COVERCOVER
-
410-82127335 SCREW, (M8 x 1.25 x 35)SCREW, (M8 x 1.25 x 35)
-
542881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
614-42981 TAB WASHERTAB WASHER
-
710-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
8988851 SLIDESLIDE
-
923-42994 BUSHINGBUSHING
-
1013-29720 WAVE WASHERWAVE WASHER
-
1112-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
1211-401386 NUT, (M6)NUT, (M6)
-
1312-35459 WASHERWASHER
-
1411-401386 NUT, (M6)NUT, (M6)
-
151169-858552T2 END CAP ASSEMBLYEND CAP ASSEMBLY
-
1621-426585 CHECK VALVECHECK VALVE
-
1726-41953 SEALSEAL
-
1825-89224 O-RINGO-RING
-
1910-40011149 SCREWSCREW
-
2027-430075 GASKETGASKET
-
2110-809060A1 SCREW, POWERHEADSCREW, POWERHEAD
-
22884296T MANIFOLD, InductionMANIFOLD, Induction
-
2342923 BRACKET, FLYWHEEL COVERBRACKET, FLYWHEEL COVER
-
2410-82127335 SCREW, (M8 x 1.25 x 35) , MANIFOLDSCREW, (M8 x 1.25 x 35) , MANIFOLD
-
2510-81742740 SCREW, BRACKET AND MANIFOLDSCREW, BRACKET AND MANIFOLD
-
2616-8M0045410 STUD, FLYWHEEL COVERSTUD, FLYWHEEL COVER
-
2712-49221 WASHER, COVER STUDWASHER, COVER STUD
-
2812-22887 WASHER, COVER STUDWASHER, COVER STUD
-
2911-816874 WING NUT, COVER STUDWING NUT, COVER STUD
-
3016-824470 STUD, CARBURETORSTUD, CARBURETOR
-
3122-996642 ELBOWELBOW
-
3232-8M0108349 TUBINGTUBING
-
3322-432881 TEETEE
-
3442963A4 REED BLOCK ASSEMBLY
(70)REED BLOCK ASSEMBLY
(70) -
3442963A11 REED BLOCK ASSEMBLY
(75/80/90)REED BLOCK ASSEMBLY
(75/80/90) -
3527-139376 GASKET, REED BLOCKGASKET, REED BLOCK
-
3634-43018A2 REED SET
(70)REED SET
(70) -
3634-43018A1 REED SET
(75/80/90)REED SET
(75/80/90) -
3742924 RETAINER, REEDRETAINER, REED
-
3910-4000171 SCREW, (M6 x 16), REED TO REED BLOCKSCREW, (M6 x 16), REED TO REED BLOCK
-
-27-43004A99 GASKET SETGASKET SET
