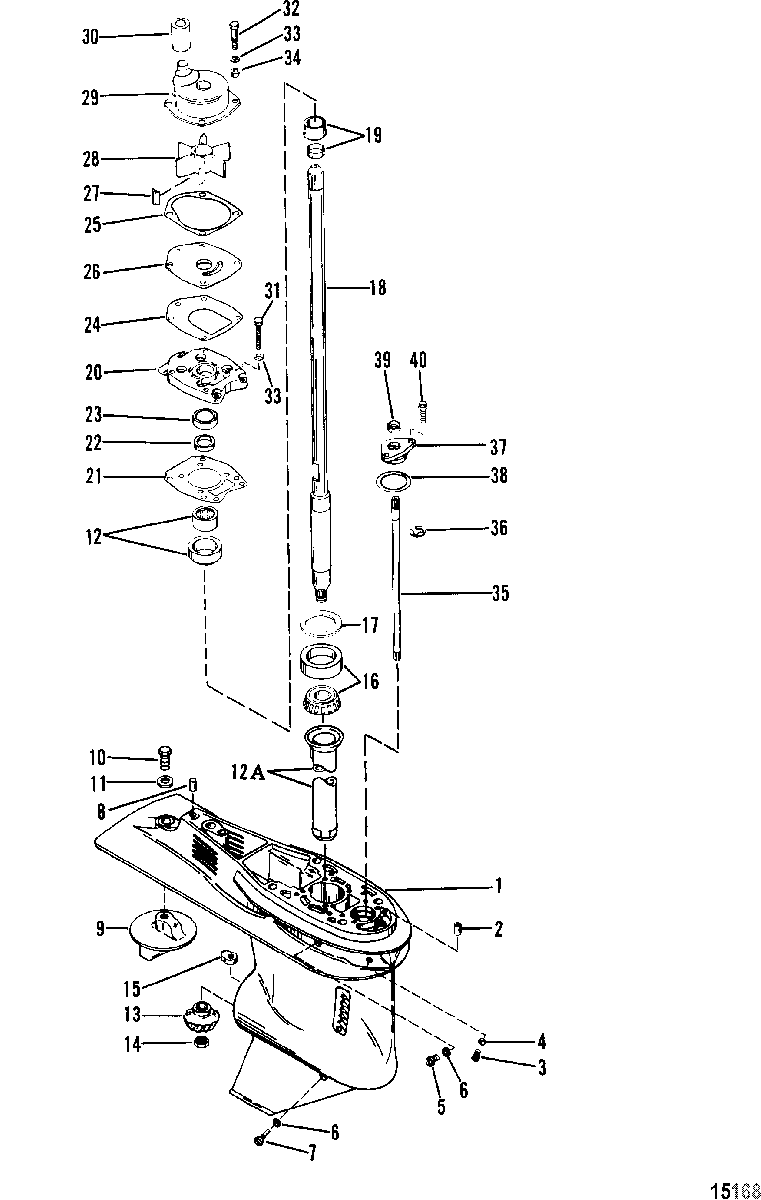

Gear Housing, Driveshaft для Mercury - 70 (3 CYL.) 9506481 THRU 9589038

  • №
    Артикул
    Название
  • -
    1667-9011J16 GEAR HOUSING ASSEMBLY, Long, Black
    GEAR HOUSING ASSEMBLY, Long, Black
  • -
    1667-9011G34 GEAR HOUSING ASSEMBLY, X-Long, Black
    GEAR HOUSING ASSEMBLY, X-Long, Black
  • -
    1667-9011J16 GEAR HOUSING ASSEMBLY, Long, Gray
    GEAR HOUSING ASSEMBLY, Long, Gray
  • -
    1667-9011J24 GEAR HOUSING ASSEMBLY, X-Long, Gray
    GEAR HOUSING ASSEMBLY, X-Long, Gray
  • -
    1667-9011J16 GEAR HOUSING ASSEMBLY, Long, Oyster
    GEAR HOUSING ASSEMBLY, Long, Oyster
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Black
    GEAR HOUSING ASSEMBLY, Black
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Gray
    GEAR HOUSING ASSEMBLY, Gray
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Oyster
    GEAR HOUSING ASSEMBLY, Oyster
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front, Quanitity Of Two On X-Long
    PIN, Dowel - With Hole (.375 x .625) , Front, Quanitity Of Two On X-Long
  • 3
    10-28653 SCREW, (#10-32 x 0.25), Vent
    SCREW, (#10-32 x 0.25), Vent
  • 4
    19643 SEAL, Vent Screw
    SEAL, Vent Screw
  • 5
    10-79953Q04 SCREW, (.375-16 x .250), Grease Filler
    SCREW, (.375-16 x .250), Grease Filler
  • 6
    12-191833 WASHER, Fiber, Drain/Filler Screw
    WASHER, Fiber, Drain/Filler Screw
  • 7
    22-8M0058389 SCREW, Magnetic, Drain
    SCREW, Magnetic, Drain
  • 8
    17-43044 PIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-Long
    PIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-Long
  • 9
    97-31640Q4 TRIM TAB ASSEMBLY
    TRIM TAB ASSEMBLY
  • 10
    10-825427 SCREW, (.437-14 x 1.250), Trim Tab
    SCREW, (.437-14 x 1.250), Trim Tab
  • 11
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, Trim Tab Screw
    WASHER, (.453 x .812 x .105) Stainless Steel, Trim Tab Screw
  • 12
    43040T1 CARRIER ASSEMBLY, Roller Bearing
    CARRIER ASSEMBLY, Roller Bearing
  • 12A
    43046 TUBE, Oiler
    TUBE, Oiler
  • 13
    43-44484T GEAR, Pinion (13 Teeth)
    GEAR, Pinion (13 Teeth)
  • 14
    11-35921 NUT, (.625-18), Pinion GearTo Drive Shaft
    NUT, (.625-18), Pinion GearTo Drive Shaft
  • 15
    760394 CAM, Shift Control
    CAM, Shift Control
  • 16
    31-42677A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 17
    15-8M0063265 SHIM SET
    SHIM SET
  • 18
    45-43031A1 DRIVESHAFT ASSEMBLY, Long
    DRIVESHAFT ASSEMBLY, Long
  • 18
    45-43032A4 DRIVESHAFT ASSEMBLY, X-Long
    DRIVESHAFT ASSEMBLY, X-Long
  • 19
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 20
    46-8M0113262 COVER ASSEMBLY, Alluminum Cover
    COVER ASSEMBLY, Alluminum Cover
  • 21
    27-430472 GASKET, Cover, Alluminum Cover
    GASKET, Cover, Alluminum Cover
  • 22
    26-43036 SEAL, Oil, Lower, Alluminun Cover
    SEAL, Oil, Lower, Alluminun Cover
  • 23
    26-43035 SEAL, Oil, Upper, Alluminum Cover
    SEAL, Oil, Upper, Alluminum Cover
  • 24
    27-430331 GASKET, Cover, Alluminum Cover
    GASKET, Cover, Alluminum Cover
  • 25
    27-430341 GASKET, Aluminum Cover, Water Pump, Alluminun Cover
    GASKET, Aluminum Cover, Water Pump, Alluminun Cover
  • 20
    46-8M0113262 COVER ASSEMBLY, Plastic Cover
    COVER ASSEMBLY, Plastic Cover
  • 20
    46-8M0113262 COVER ASSEMBLY, Aluminum Cover
    COVER ASSEMBLY, Aluminum Cover
  • 22
    26-43036 SEAL, Oil, Lower, Plastic Cover
    SEAL, Oil, Lower, Plastic Cover
  • 23
    26-43035 SEAL, Oil, Upper, Plastic Cover
    SEAL, Oil, Upper, Plastic Cover
  • 25
    27-430341 GASKET, Aluminum Cover, Water Pump, Plastic Cover
    GASKET, Aluminum Cover, Water Pump, Plastic Cover
  • 26
    817275A2 FACE PLATE
    FACE PLATE
  • 27
    28-8M0032833 KEY, Impeller Drive
    KEY, Impeller Drive
  • 28
    47-43026T2 IMPELLER
    IMPELLER
  • 29
    817275A2 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 30
    43023 SEAL, Water Tube
    SEAL, Water Tube
  • 31
    10-4000330 SCREW, (M6 x 25), Cover
    SCREW, (M6 x 25), Cover
  • 32
    10-4000332 SCREW, (M6 x 35), Water Pump
    SCREW, (M6 x 35), Water Pump
  • 33
    12-4002315 WASHER, (6.60 X 12.5 X 1.5 mm -SS)
    WASHER, (6.60 X 12.5 X 1.5 mm -SS)
  • 34
    23-43045 INSULATOR, Water Pump Screw
    INSULATOR, Water Pump Screw
  • 35
    43048A1 SHIFT SHAFT ASSEMBLY, Long
    SHIFT SHAFT ASSEMBLY, Long
  • 35
    43049A1 SHIFT SHAFT ASSEMBLY, X-Long
    SHIFT SHAFT ASSEMBLY, X-Long
  • 36
    53-29641 E RING, Shift Shaft
    E RING, Shift Shaft
  • 37
    23-43052A4 BUSHING ASSEMBLY, Shift Shaft
    BUSHING ASSEMBLY, Shift Shaft
  • 38
    25-457101 O-RING, (1.424 x .103), Bushing
    O-RING, (1.424 x .103), Bushing
  • 39
    26-8164641 SEAL, Oil, Bushing
    SEAL, Oil, Bushing
  • 40
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel, Bushing
    SCREW, (M6 x 20) Stainless Steel, Bushing
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    46-8M0113799 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    27-43004A99 GASKET SET
    GASKET SET
