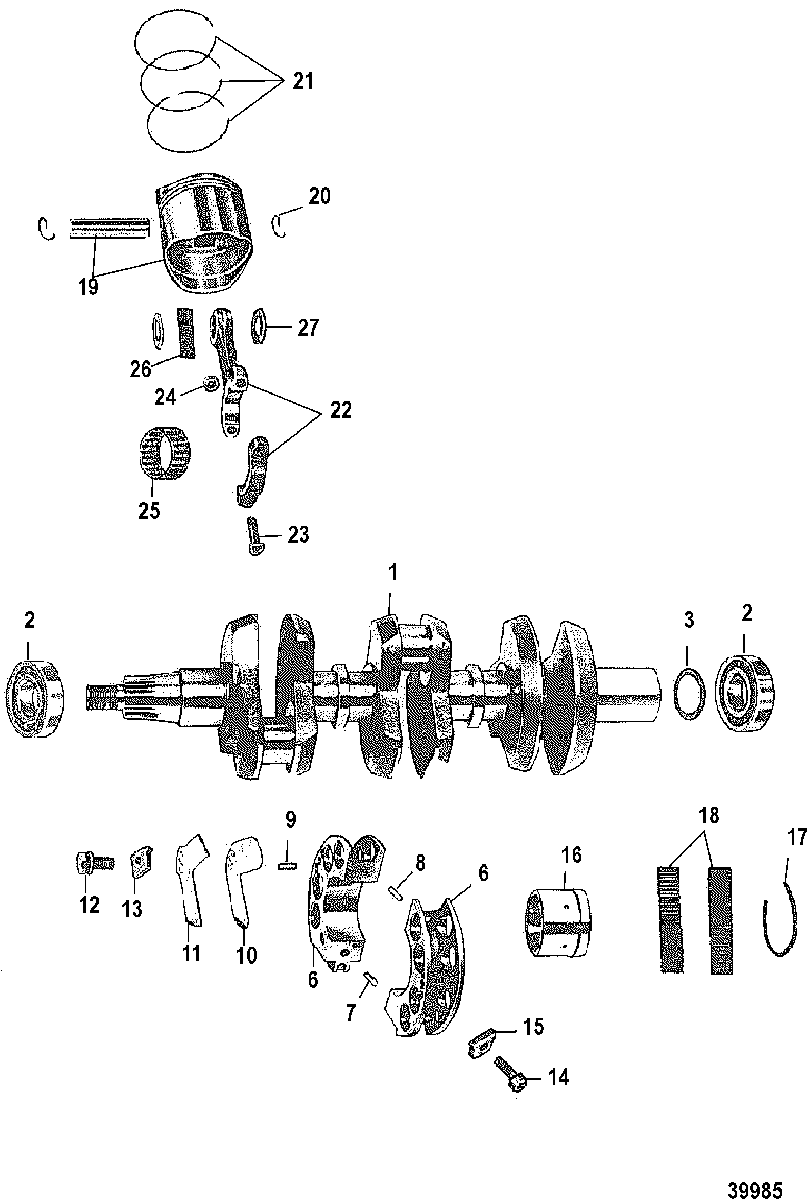

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 70 (3 CYL.) 9255131 THRU 9385910
-
№АртикулНазвание
-
1462-8839A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-64424T BEARING, BALL-LOWER AND UPPERBEARING, BALL-LOWER AND UPPER
-
315-22369A1 SHIM SET, LOWER BEARING TO CRANKSHAFTSHIM SET, LOWER BEARING TO CRANKSHAFT
-
6542-7509A3 BEARING ASSEMBLY, Main (VALVE TYPE)BEARING ASSEMBLY, Main (VALVE TYPE)
-
717-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
817-60282 PIN, Dowel (STEPPED)PIN, Dowel (STEPPED)
-
917-65855 PIN, Dowel, REED STOPPIN, Dowel, REED STOP
-
1034-66051A1 REED SET, MATCHED-MAIN BEARINGREED SET, MATCHED-MAIN BEARING
-
1134-65946 STOP, ReedSTOP, Reed
-
1210-77280 SCREW, (.190-32 x .560), REED STOP MOUNTINGSCREW, (.190-32 x .560), REED STOP MOUNTING
-
1311-20110 NUT, (#10-32), REED STOP MOUNTING SCREWNUT, (#10-32), REED STOP MOUNTING SCREW
-
1410-45775 SCREW, (#12-28 x .560) , MAIN BEARING CLAMPINGSCREW, (#12-28 x .560) , MAIN BEARING CLAMPING
-
1511-45774 NUT, MAIN BEARING SCREW CLAMPINGNUT, MAIN BEARING SCREW CLAMPING
-
1626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1753-26933 RING, Snap, OUTER RACE CLAMPINGRING, Snap, OUTER RACE CLAMPING
-
1829-714221 BEARING, NeedleBEARING, Needle
-
19774-9137A12 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
19774-9137A13 PISTON ASSEMBLY
(.015O.S.)PISTON ASSEMBLY
(.015O.S.) -
19774-9137A14 PISTON ASSEMBLY
(.030 O.S.)PISTON ASSEMBLY
(.030 O.S.) -
2053-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
2139-78816A12 RING, PISTON
(STANDARD)RING, PISTON
(STANDARD) -
2139-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
2139-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
22624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2310-54803 SCREW, (.250-28 x 1.500), CAP TO CONNECTING ROD
W/NUTSCREW, (.250-28 x 1.500), CAP TO CONNECTING ROD
W/NUT -
2310-91012 SCREW, (.250-28 Special), CAP TO CONNECTING ROD
W/O NUTSCREW, (.250-28 Special), CAP TO CONNECTING ROD
W/O NUT -
2411-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2531-62596A1 BEARING ASSEMBLYBEARING ASSEMBLY
-
2629-47270 BEARING, NEEDLE-PISTON PINBEARING, NEEDLE-PISTON PIN
-
2712-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
