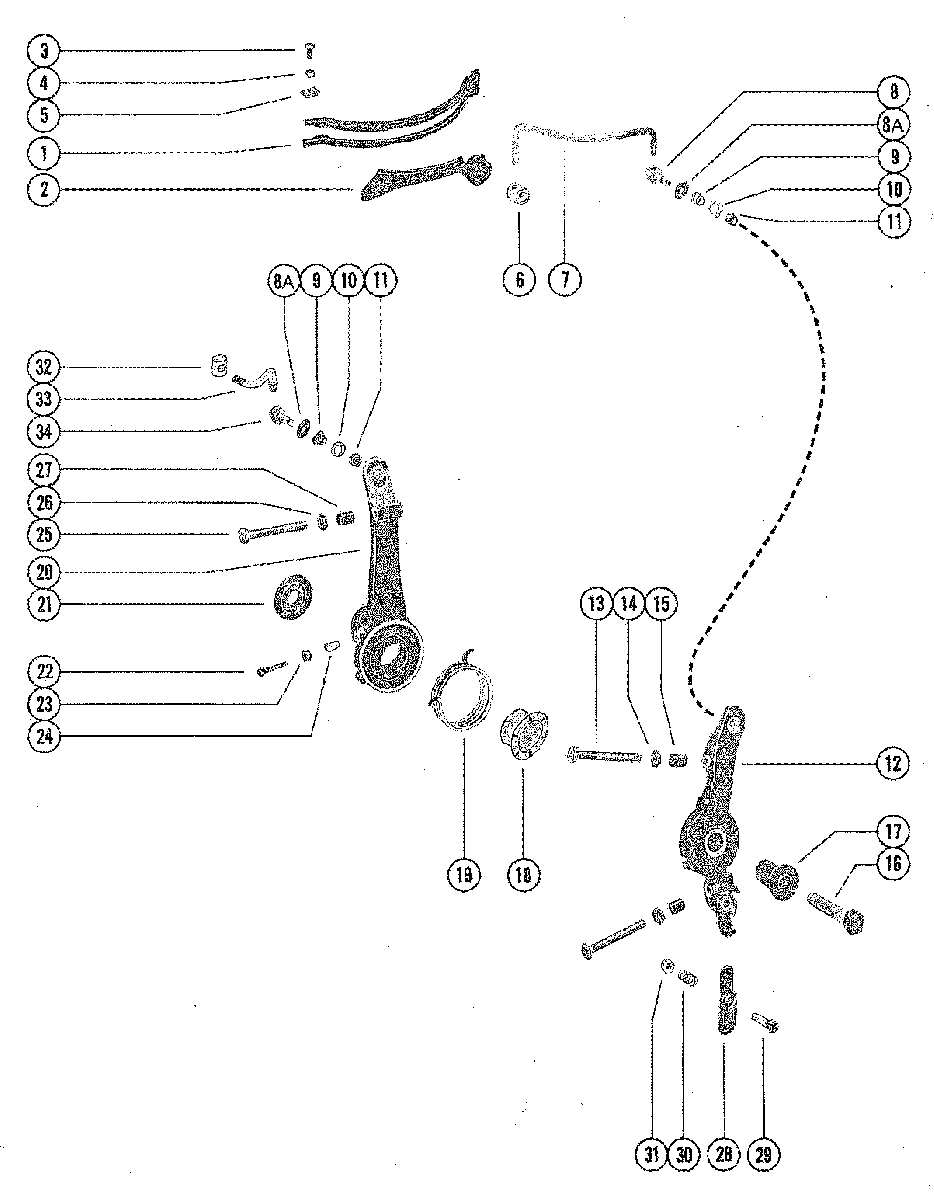

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 70 (3 CYL.) 8042350 THRU 8065064

  • №
    Артикул
    Название
  • 1
    76864 HOUSING, NYLON-THROTTLE ACTUATOR
    HOUSING, NYLON-THROTTLE ACTUATOR
  • 2
    77025 CAM, NYLON-THROTTLE ACTUATOR
    CAM, NYLON-THROTTLE ACTUATOR
  • 3
    10-37571 SCREW, HOUSING TO CRANKCASE (1/2")
    SCREW, HOUSING TO CRANKCASE (1/2")
  • 4
    13-26996 LOCKWASHER, HOUSING TO CRANKCASE SCREW
    LOCKWASHER, HOUSING TO CRANKCASE SCREW
  • 5
    60570 PLATE, RETAINER-ACTUATOR HOUSING
    PLATE, RETAINER-ACTUATOR HOUSING
  • 6
    23-74213 BARREL, NYLON-THROTTLE LINK ROD
    BARREL, NYLON-THROTTLE LINK ROD
  • 7
    74164 ROD, LINK-THROTTLE
    ROD, LINK-THROTTLE
  • 8
    77013A1 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
  • 8A
    13-29402 WAVE WASHER, LINK ROD SWIVEL
    WAVE WASHER, LINK ROD SWIVEL
  • 9
    23-26856 BUSHING, LINK ROD SWIVEL
    BUSHING, LINK ROD SWIVEL
  • 10
    12-73288 WASHER, LINK ROD SWIVEL
    WASHER, LINK ROD SWIVEL
  • 11
    11-45774 NUT, LINK ROD SWIVEL
    NUT, LINK ROD SWIVEL
  • 12
    77032A2 LEVER ASSEMBLY, THROTTLE CONTROL
    LEVER ASSEMBLY, THROTTLE CONTROL
  • 13
    10-67916 SCREW, ADJUSTING-THROTTLE LEVER (2")
    SCREW, ADJUSTING-THROTTLE LEVER (2")
  • 14
    11-29598 NUT, JAM-ADJUSTING SCREW
    NUT, JAM-ADJUSTING SCREW
  • 15
    52023 CAP, ADJUSTING SCREW
    CAP, ADJUSTING SCREW
  • 16
    10-818165 SCREW
    THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
    SCREW
    THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
  • 17
    23-55164 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 18
    23-55171 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 19
    24-55162 SPRING, RETURN-SPARK ADVANCE LEVER
    SPRING, RETURN-SPARK ADVANCE LEVER
  • 20
    77031A2 LEVER ASSEMBLY, SPARK ADVANCE
    LEVER ASSEMBLY, SPARK ADVANCE
  • 21
    12-46765 WASHER, THROTTL CONTROL LEVER SCREW
    WASHER, THROTTL CONTROL LEVER SCREW
  • 22
    10-73656 SCREW, SPARK ADVANCE ADJUSTING (1 1/2")
    SCREW, SPARK ADVANCE ADJUSTING (1 1/2")
  • 23
    11-68219 NUT, SPARK ADVANTAGE ADJUSTING SCREW
    NUT, SPARK ADVANTAGE ADJUSTING SCREW
  • 24
    48039 CAP, SPARK ADVANCE ADJUSTING SCREW
    CAP, SPARK ADVANCE ADJUSTING SCREW
  • 25
    10-77650 SCREW
    ADJUSTING-SPARK ADVANCE LEVER (2 1/4")
    SCREW
    ADJUSTING-SPARK ADVANCE LEVER (2 1/4")
  • 26
    11-29598 NUT, JAM-ADJUSTING SCREW
    NUT, JAM-ADJUSTING SCREW
  • 27
    52023 CAP, ADJUSTING SCREW
    CAP, ADJUSTING SCREW
  • 28
    39483 LATCH
    THROTTLE CONTROL LEVER (THROTTLE CABLE)
    LATCH
    THROTTLE CONTROL LEVER (THROTTLE CABLE)
  • 29
    10-69026 SCREW
    LATCH TO THROTTLE CONTROL LEVER (7/8")
    SCREW
    LATCH TO THROTTLE CONTROL LEVER (7/8")
  • 30
    24-20099 SPRING, COMPRESSION-LATCH SCREW
    SPRING, COMPRESSION-LATCH SCREW
  • 31
    11-826709109 NUT, LATCH ATTACHING SCREW
    NUT, LATCH ATTACHING SCREW
  • 32
    74897T BARREL, LINK ROD TO STATOR
    BARREL, LINK ROD TO STATOR
  • 33
    74212 ROD, LINK-SPARK ADVANCE
    ROD, LINK-SPARK ADVANCE
  • 34
    77013A1 SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
    SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
