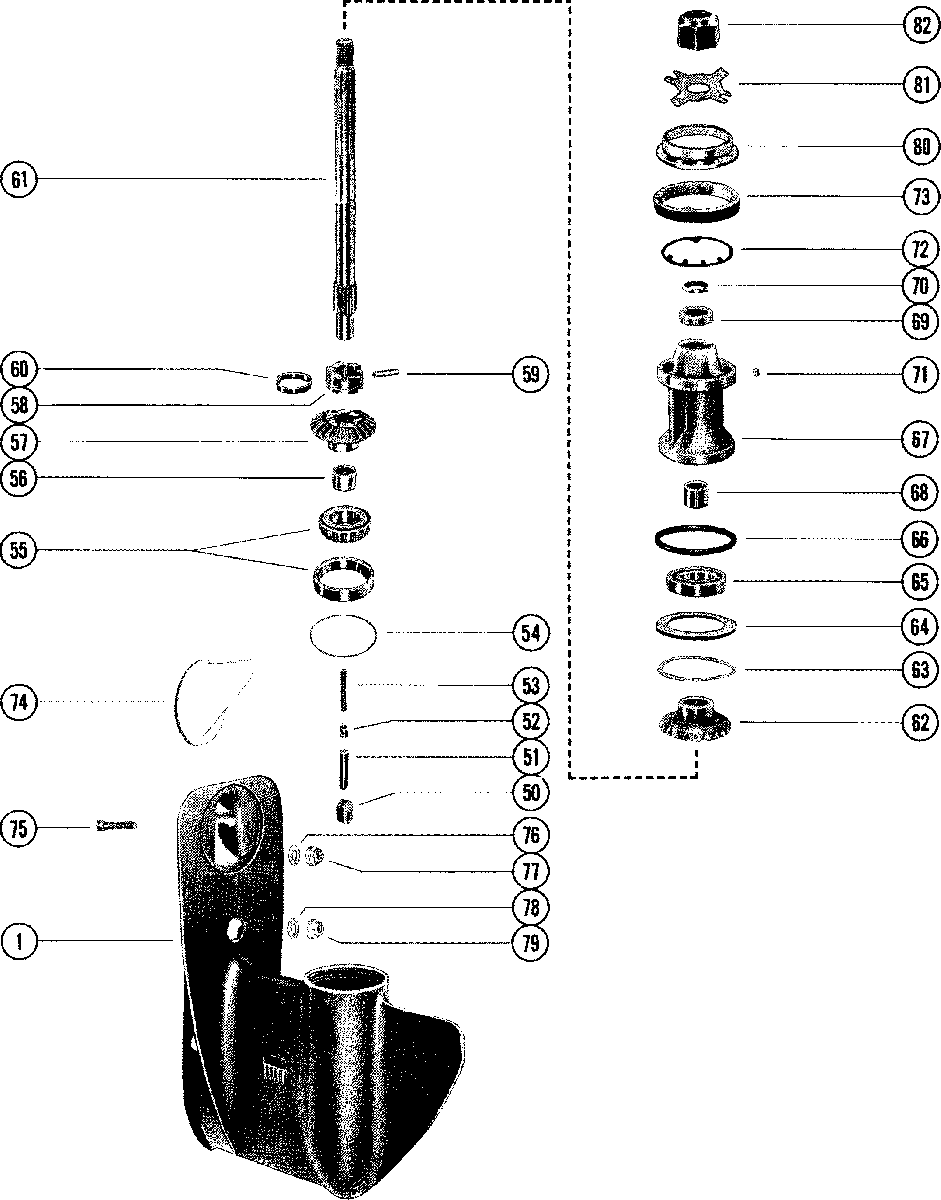

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 2) для Mercury - 70 (3 CYL.) 4571652 THRU 5579016
-
№АртикулНазвание
-
-1643-9539A2 GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887 -
-1643-9539A3 GEAR HOUSING ASS'Y COMP. (LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887GEAR HOUSING ASS'Y COMP. (LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 -
-1643-9539A2 GEAR HOUSING ASS'Y COMP (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPGEAR HOUSING ASS'Y COMP (SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
-1643-9539A3 GEAR ASS'Y COMP. (LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPGEAR ASS'Y COMP. (LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
11643-9539T1 GEAR HOUSING ASSEMBLY - F10
SEE F10 FOR BREAKDOWN
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887GEAR HOUSING ASSEMBLY - F10
SEE F10 FOR BREAKDOWN
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887 -
11643-9539T1 GEARE HOUSING ASSEMBLY
SEE F10 FOR BREAKDOWN
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPGEARE HOUSING ASSEMBLY
SEE F10 FOR BREAKDOWN
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
50760394 CAM, SHIFT
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887CAM, SHIFT
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887 -
50760394 CAM, SHIFT
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPCAM, SHIFT
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
5138441 FOLLOWER, CAMFOLLOWER, CAM
-
5220843 SLIDE, CROSSSLIDE, CROSS
-
5324-39845 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5415-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
-
5531-38356A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5631-21739 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5743-60247T5 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5852-92911T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6024-38114 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6144-75365 SHAFT, PROPELLERSHAFT, PROPELLER
-
6243-79159T REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6412-32004 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
6530-20839T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6625-31986 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6769386T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6831-21700 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6926-69188 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7026-69189 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7128-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7214-53012 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7311-87763 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSINGSCREW, TRIM TAB TO GEAR HOUSING
-
7612-856774 WASHER
DRIVE SHAFT HOUSING STUD (3/8')WASHER
DRIVE SHAFT HOUSING STUD (3/8') -
7711-8M0042636 NUT
DRIVE SHAFT HOUSING STUD (3/8")NUT
DRIVE SHAFT HOUSING STUD (3/8") -
7812-65791 WASHER
DRIVE SHAFT HOUSING GEAR HOUSING STUD (7/16")WASHER
DRIVE SHAFT HOUSING GEAR HOUSING STUD (7/16") -
7911-34933 NUT, DRIVE SHAFT HOUSING TO GEAR STUD (7/16")NUT, DRIVE SHAFT HOUSING TO GEAR STUD (7/16")
-
8073345A1 THRUST HUB, FRONTTHRUST HUB, FRONT
-
8114-76281 TAB WASHER, PROPELLERTAB WASHER, PROPELLER
-
8211-69578Q1 NUT, PROPELLERNUT, PROPELLER
