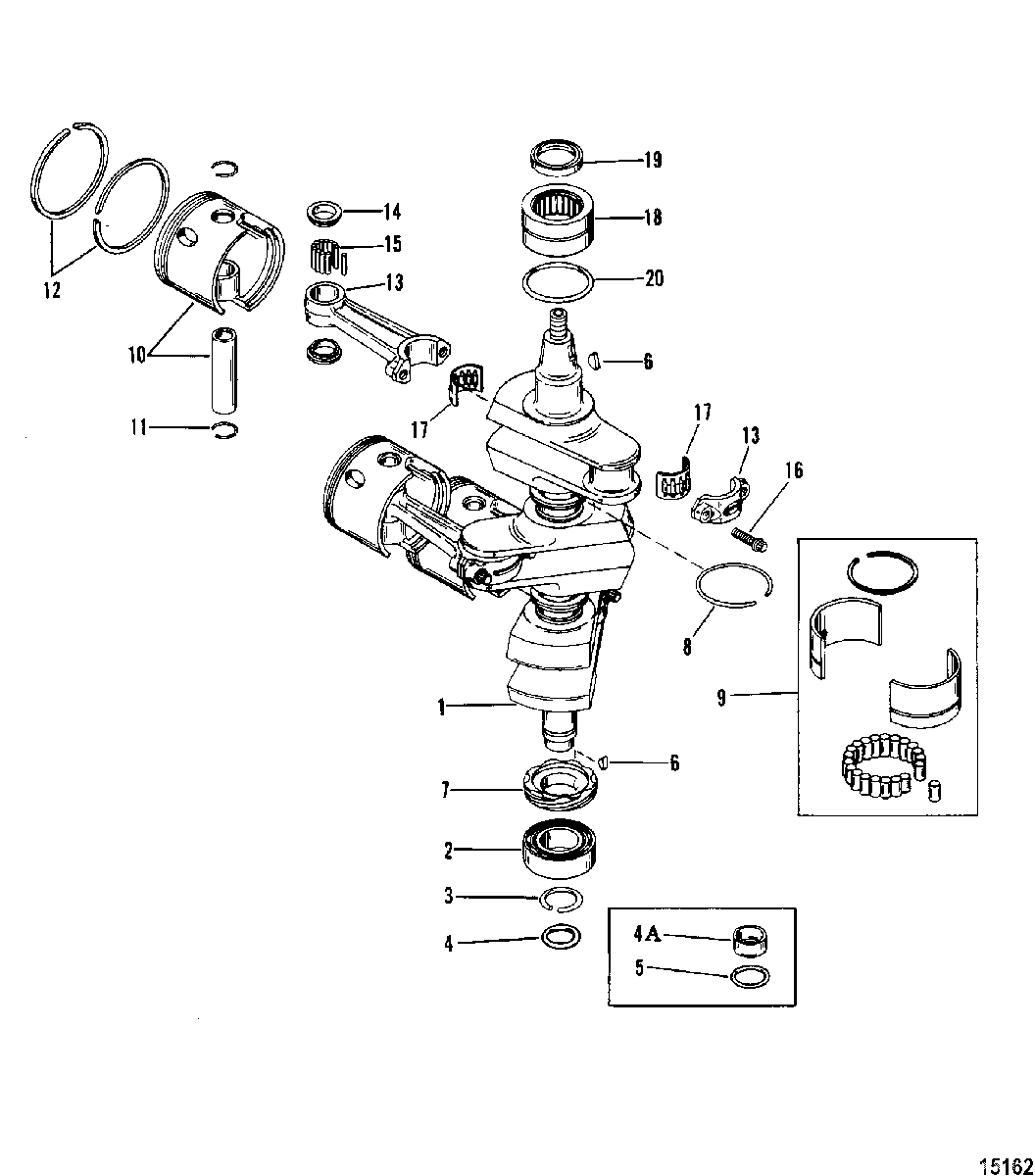

Crankshaft, Pistons/Connecting Rods (#638-8532--1) для Mercury - 70 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    472-9001T3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-43011T BEARING, Ball, Crankshaft, Lower
    BEARING, Ball, Crankshaft, Lower
  • 3
    53-93412 RING, Retaining, Ball Bearing
    RING, Retaining, Ball Bearing
  • 4A
    54196A6 CARRIER ASSEMBLY, Seal, Old Design
    CARRIER ASSEMBLY, Seal, Old Design
  • 5
    65800 PACKING, Carrier, Old Design
    PACKING, Carrier, Old Design
  • 4
    25-35126 O-RING, (.859 x .139), New Design
    O-RING, (.859 x .139), New Design
  • 6
    28-91800 KEY, Woodruff, Drive
    KEY, Woodruff, Drive
  • 7
    43-43019A1 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 8
    39-42079A4 RING ASSEMBLY, Sealing
    RING ASSEMBLY, Sealing
  • 9
    42943A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    777-9009T13 PISTON ASSEMBLY, Standard
    PISTON ASSEMBLY, Standard
  • 10
    777-9009A6 PISTON ASSEMBLY (.015) Oversize
    PISTON ASSEMBLY (.015) Oversize
  • 10
    777-9009A7 PISTON ASSEMBLY (.030) Oversize
    PISTON ASSEMBLY (.030) Oversize
  • 11
    53-857196 RING, Lock, Piston
    RING, Lock, Piston
  • 12
    39-96170A12 RING SET, Piston, Standard
    RING SET, Piston, Standard
  • 12
    39-96170A3 RING SET, Piston (.015) Oversize
    RING SET, Piston (.015) Oversize
  • 12
    39-96170A4 RING SET, Piston (.030) Oversize
    RING SET, Piston (.030) Oversize
  • 13
    638-9002A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    12-8M0032839 WASHER, Needle Locating
    WASHER, Needle Locating
  • 15
    29-88258001 NEEDLE, Roller Bearing, Piston End
    NEEDLE, Roller Bearing, Piston End
  • 16
    10-94320 SCREW, Connecting Rod
    SCREW, Connecting Rod
  • 17
    31-844338A01 BEARING/CAGE KIT, Crankshaft End
    BEARING/CAGE KIT, Crankshaft End
  • 18
    31-43013T3 BEARING ASSEMBLY, Roller, Upper
    BEARING ASSEMBLY, Roller, Upper
  • 19
    26-43993 SEAL, Oil
    SEAL, Oil
  • 20
    25-823683 O-RING
    O-RING
  • -
    27-43004A99 GASKET SET
    GASKET SET
