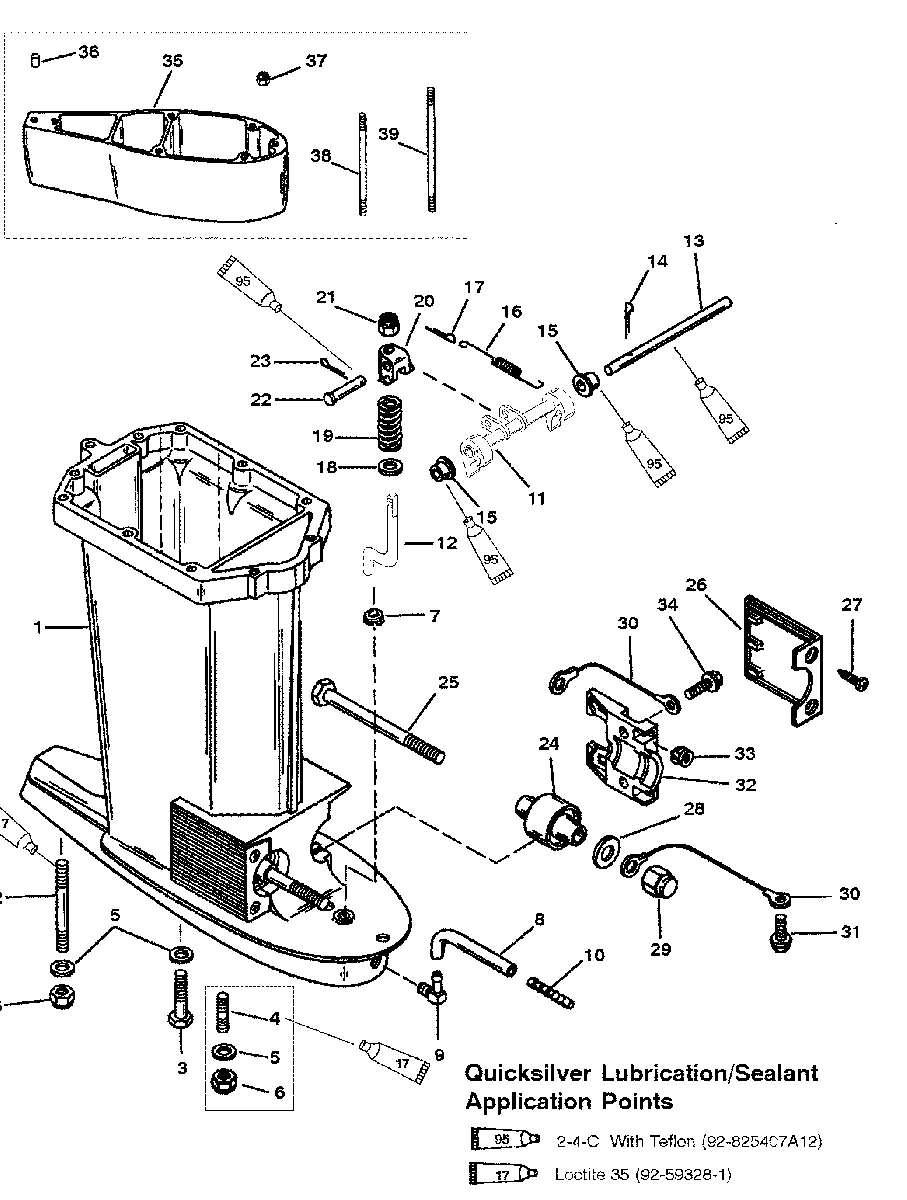

DRIVE SHAFT HOUSING для Mercury - 65 JET 9793577 THRU 0P016999

№

Артикул

Название
1

898289A49 DRIVE SHAFT HOUSING ASSEMBLY
(BLACK)

DRIVE SHAFT HOUSING ASSEMBLY
(BLACK)
1

898289A49 DRIVE SHAFT HOUSING ASSEMBLY
(GRAY)

DRIVE SHAFT HOUSING ASSEMBLY
(GRAY)
1

898289A49 DRIVE SHAFT HOUSING
(TRACKER-GRAPHITE GRAY)

DRIVE SHAFT HOUSING
(TRACKER-GRAPHITE GRAY)
1

1598-8974A26 DRIVE SHAFT HOUSING ASSEMBLY
(BLACK-JET)

DRIVE SHAFT HOUSING ASSEMBLY
(BLACK-JET)
1

1598-8974A27 DRIVE SHAFT HOUSING ASSEMBLY
(GRAY-JET)

DRIVE SHAFT HOUSING ASSEMBLY
(GRAY-JET)
2

16-903501 STUD (100MM)
(LONG)

STUD (100MM)
(LONG)
2

16-8M0034445 STUD (166MM)
(LL)

STUD (166MM)
(LL)
3

10-4000380 SCREW (M10 X 1.5 X 45)
(LONG)(DESIGN I)

SCREW (M10 X 1.5 X 45)
(LONG)(DESIGN I)
4

16-9035012 STUD (63MM)
(LONG)(DESIGN II)

STUD (63MM)
(LONG)(DESIGN II)
4

16-8M0034446 STUD (124M)
(LL)

STUD (124M)
(LL)
5

12-45176 WASHER

WASHER
6

11-40140 NUT

NUT
7

429222 GUIDE
(NON POWER TRIM)

GUIDE
(NON POWER TRIM)
8

22-85822A4 SPEEDOMETER PICK-UP ASSEMBLY

SPEEDOMETER PICK-UP ASSEMBLY
9

22-433351 CONNECTOR (90 DEGREES)

CONNECTOR (90 DEGREES)
10

22-85822T CONNECTOR (STRAIGHT)

CONNECTOR (STRAIGHT)
11

14664A2 REVERSE HOOK ASSEMBLY
NON POWER TRIM

REVERSE HOOK ASSEMBLY
NON POWER TRIM
12

16686 PUSH ROD
NON POWER TRIM

PUSH ROD
NON POWER TRIM
13

99606 SHAFT
NON POWER TRIM

SHAFT
NON POWER TRIM
14

18-45882 COTTER PIN
NON POWER TRIM

COTTER PIN
NON POWER TRIM
15

23-69132 BUSHING
NON POWER TRIM

BUSHING
NON POWER TRIM
16

24-996261 SPRING
NON POWER TRIM

SPRING
NON POWER TRIM
17

18-47959 COTTER PIN
NON POWER TRIM

COTTER PIN
NON POWER TRIM
18

12-8M0042642 WASHER
NON POWER TRIM

WASHER
NON POWER TRIM
19

24-16733 SPRING
NON POWER TRIM

SPRING
NON POWER TRIM
20

996361 YOKE
NON POWER TRIM

YOKE
NON POWER TRIM
21

11-82670911 JAM NUT
NON POWER TRIM

JAM NUT
NON POWER TRIM
22

17-99663 CLEVIS PIN
NON POWER TRIM

CLEVIS PIN
NON POWER TRIM
23

18-25191 COTTER PIN
NON POWER TRIM

COTTER PIN
NON POWER TRIM
24

42930A1 MOUNT
(OIL INJECTION) (JET 65)

MOUNT
(OIL INJECTION) (JET 65)
24

44343T1 MOUNT
(NON OIL INJECTION)

MOUNT
(NON OIL INJECTION)
25

10-898835001 BOLT (M12 X 1.75 X 154)

BOLT (M12 X 1.75 X 154)
26

100-8M4500752 COVER
(BLACK)

COVER
(BLACK)
26

100-8M4500752 COVER
(GRAY)

COVER
(GRAY)
26

100-8M4500752 COVER
(TRACKER-GRAPHITE GRAY)

COVER
(TRACKER-GRAPHITE GRAY)
27

10-88417 SCREW (12-24 X 5/8 IN.)

SCREW (12-24 X 5/8 IN.)
28

12-30119 WASHER

WASHER
29

11-43528 NUT

NUT
30

88238A10 GROUND WIRE ASSEMBLY

GROUND WIRE ASSEMBLY
31

10-41508 SCREW (1/4-20 X 3/8)

SCREW (1/4-20 X 3/8)
32

8M0036730 CLAMP

CLAMP
33

11-35521 NUT

NUT
34

10-4010725 SCREW (M8 X 1.25 X 25)

SCREW (M8 X 1.25 X 25)
35

816696T7 SPACER
(BLACK)(2-1/2 IN.) LL & X-LONG

SPACER
(BLACK)(2-1/2 IN.) LL & X-LONG
35

816696T8 SPACER
(GRAY)(2-1/2 IN.) LL & X-LONG

SPACER
(GRAY)(2-1/2 IN.) LL & X-LONG
35

12092A3 SPACER
(BLACK)(5 IN.) LL & X-LONG

SPACER
(BLACK)(5 IN.) LL & X-LONG
35

12092A4 SPACER
(GRAY)(5 IN.) LL & X-LONG

SPACER
(GRAY)(5 IN.) LL & X-LONG
36

17-43044 DOWEL PIN
LL & X-LONG

DOWEL PIN
LL & X-LONG
36

17-8M0084244 DOWEL PIN (W/HOLE)
LL & X-LONG

DOWEL PIN (W/HOLE)
LL & X-LONG
37

11-40140 NUT
LL & X-LONG

NUT
LL & X-LONG
38

16-8M0034446 STUD (124MM)
(2-1/2 IN. SPACER) LL & X-LONG

STUD (124MM)
(2-1/2 IN. SPACER) LL & X-LONG
38

16-903503 STUD (190MM)
(5 IN. SPACER) LL & X-LONG

STUD (190MM)
(5 IN. SPACER) LL & X-LONG
39

16-8M0034445 STUD (166MM)
(2-1/2 IN. SPACER) LL & X-LONG

STUD (166MM)
(2-1/2 IN. SPACER) LL & X-LONG
39

16-903502 STUD (227MM)
(5 IN. SPACER) LL & X-LONG

STUD (227MM)
(5 IN. SPACER) LL & X-LONG
