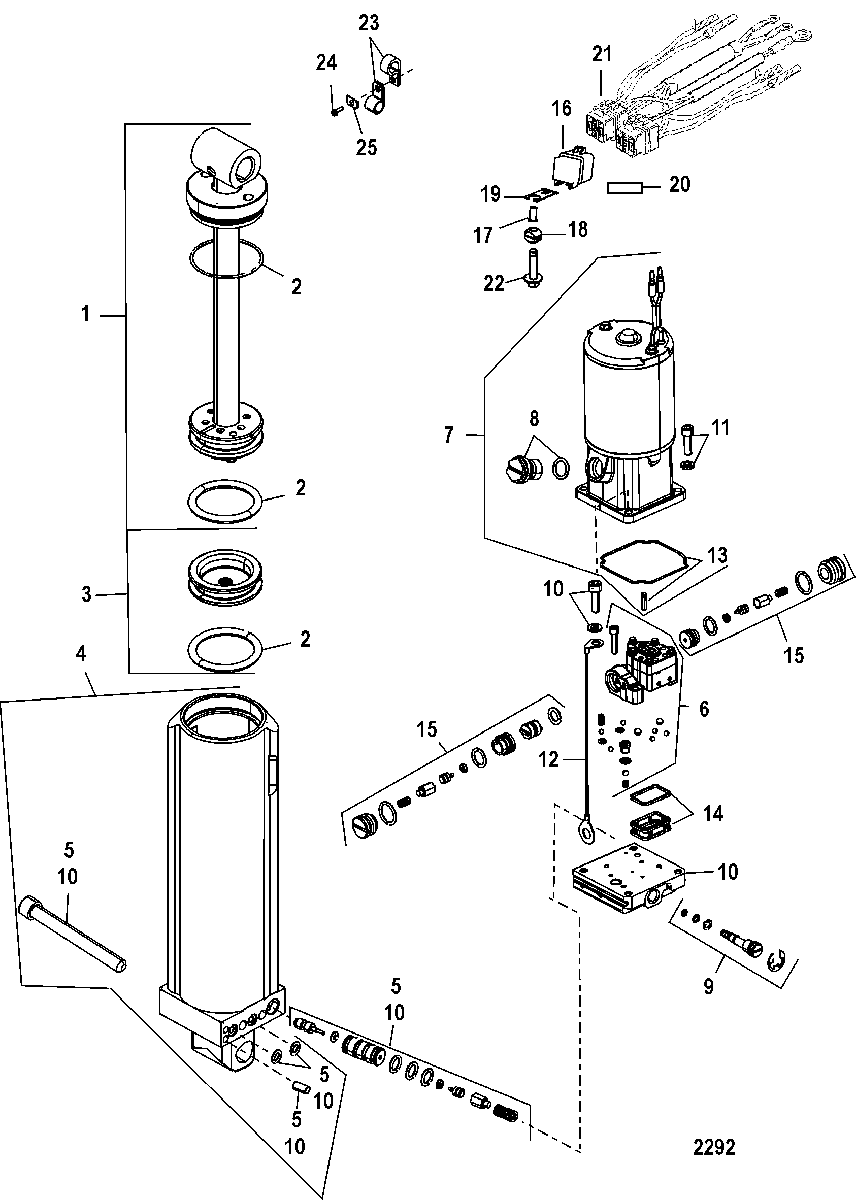

Power Trim Components, 2B092562 and Below для Mercury - 65 JET (3 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
-8M0090335 PUMP ASSEMBLY, Power TrimPUMP ASSEMBLY, Power Trim
-
-8M0090335 PUMP ASSEMBLY, Power TrimPUMP ASSEMBLY, Power Trim
-
18M0089942 SHOCK ROD KITSHOCK ROD KIT
-
225-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
3810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
48M0055015 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
58M0090404 VALVE KIT, Trim LimitVALVE KIT, Trim Limit
-
68M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
7893907A02 MOTOR KITMOTOR KIT
-
822-8134351 PLUGPLUG
-
9893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
108M0055018 MANIFOLD KITMANIFOLD KIT
-
1110-809876A1 SCREW KIT, MotorSCREW KIT, Motor
-
1288238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
-25-8M0089947 O-RING KIT (COMPLETE TRIM)O-RING KIT (COMPLETE TRIM)
-
16882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
1723-818968 BUSHINGBUSHING
-
1825-818967 GROMMETGROMMET
-
19828102 BRACKETBRACKET
-
20NSS NOT SOLD SEPARATE, Decal, Trim RelayNOT SOLD SEPARATE, Decal, Trim Relay
-
2184-819514A15 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2210-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2354-22740 CLIPCLIP
-
2410-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
258M0084613 C WASHERC WASHER
