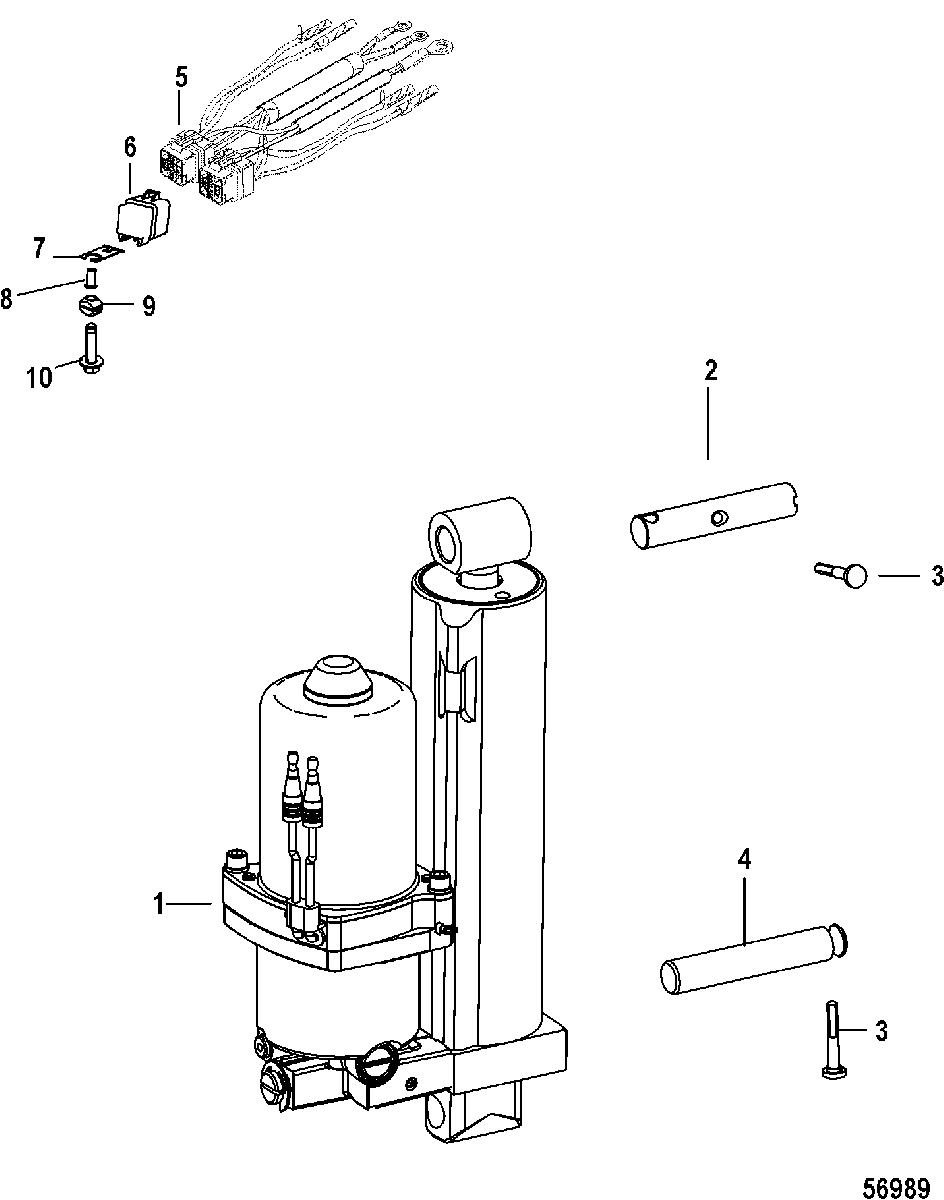

Power Trim Assembly, 2B092563 and Up для Mercury - 65 JET (3 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
18M0090335 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
217-8M0094889 PIN, Shock RodPIN, Shock Rod
-
317-821539 PIN, TrilobePIN, Trilobe
-
417-818898 PIN, AnchorPIN, Anchor
-
584-8M0092077 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
6882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
7828102 BRACKETBRACKET
-
823-818968 BUSHINGBUSHING
-
925-818967 GROMMETGROMMET
-
1010-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
