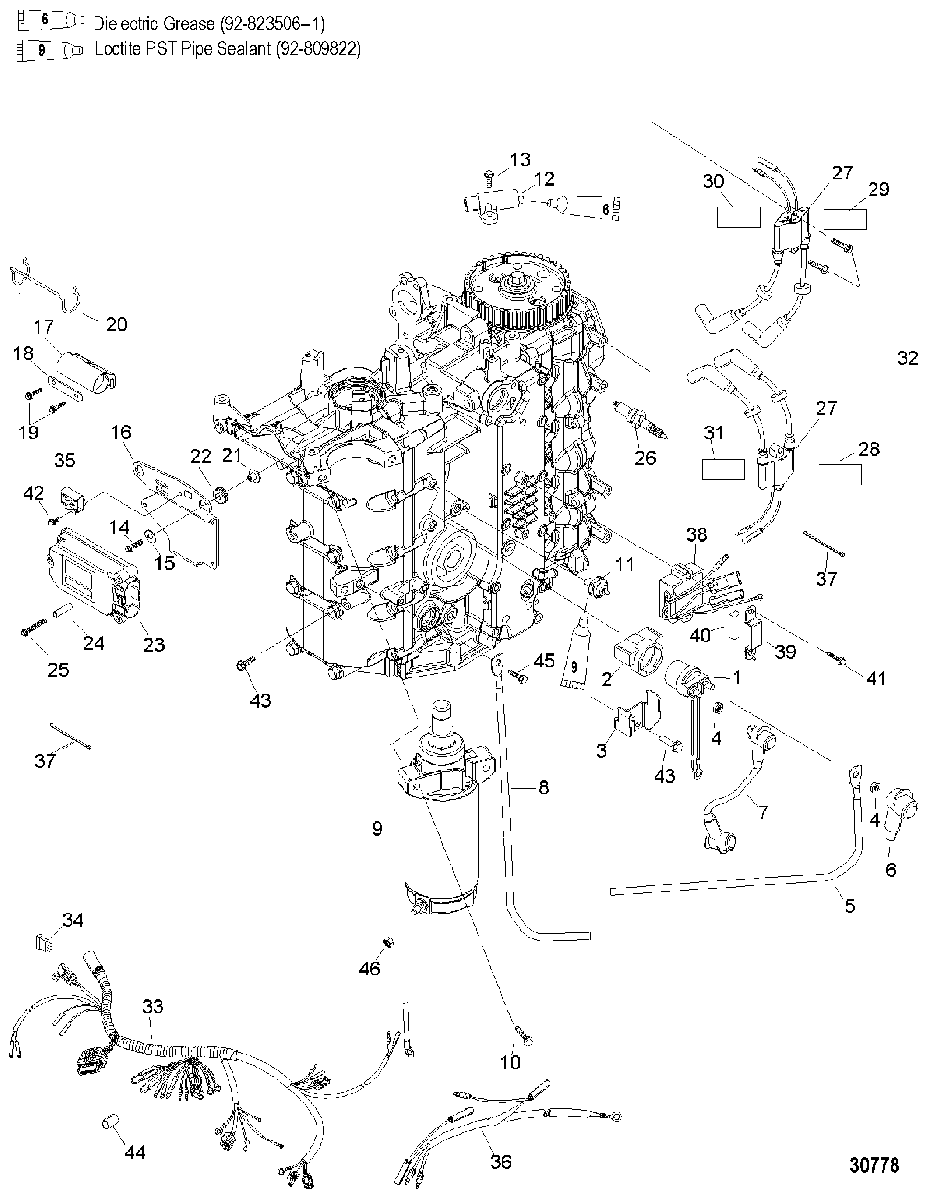

ELECTRICAL COMPONENTS для Mercury - 60 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999

  • №
    Артикул
    Название
  • 1
    89-8M0098898 RELAY
    RELAY
  • 2
    8M0010250 BRACKET
    BRACKET
  • 3
    825074 SOLENOID PLATE
    SOLENOID PLATE
  • 4
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 5
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 6
    85-880786 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 7
    84-93388A16 CABLE ASSEMBLY, (8.50 Inches)
    CABLE ASSEMBLY, (8.50 Inches)
  • 8
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 9
    50-893888T STARTER MOTOR ASSEMBLY (SEE BREAKDOWN ON STARTER MOTOR)
    STARTER MOTOR ASSEMBLY (SEE BREAKDOWN ON STARTER MOTOR)
  • 10
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 11
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 12
    8M0082988 SENSOR
    SENSOR
  • 13
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 14
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-4002316 WASHER
    WASHER
  • 16
    859224 PLATE
    PLATE
  • 17
    856836001 RETAINER
    RETAINER
  • 18
    856040 BRACKET
    BRACKET
  • 19
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 20
    92753 RETAINER
    RETAINER
  • 21
    23-856954 BUSHING
    BUSHING
  • 22
    25-834985 GROMMET
    GROMMET
  • 23
    87843303S ECM, Engine Control Module
    ECM, Engine Control Module
  • 24
    23-8539201 BUSHING
    BUSHING
  • 25
    10-82129140 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 26
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 27
    339-859738T1 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 28
    NSS NOT SOLD SEPARATE, Decal
    (COIL ID #1)
    NOT SOLD SEPARATE, Decal
    (COIL ID #1)
  • 29
    NSS NOT SOLD SEPARATE, Decal
    (COIL ID #2)
    NOT SOLD SEPARATE, Decal
    (COIL ID #2)
  • 30
    NSS NOT SOLD SEPARATE, Decal
    (COIL ID #3)
    NOT SOLD SEPARATE, Decal
    (COIL ID #3)
  • 31
    NSS NOT SOLD SEPARATE, Decal
    (COIL ID #4)
    NOT SOLD SEPARATE, Decal
    (COIL ID #4)
  • 32
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 33
    84-857111T2 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 34
    88-812619 FUSE, Yellow - 20 Ampere (SFE)
    FUSE, Yellow - 20 Ampere (SFE)
  • 35
    828054 COVER, Fuse
    COVER, Fuse
  • 36
    84-852375A6 HARNESS ASSEMBLY, Extension
    (HANDLE)
    HARNESS ASSEMBLY, Extension
    (HANDLE)
  • 37
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 38
    883071T1 REGULATOR, Voltage
    REGULATOR, Voltage
  • 39
    893771 BRACKET
    BRACKET
  • 40
    8308971 FOAM PAD
    FOAM PAD
  • 41
    10-8248329 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 42
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 43
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 44
    13541 PLUG, Male
    PLUG, Male
  • 45
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 46
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • -
    61-893678T03 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
