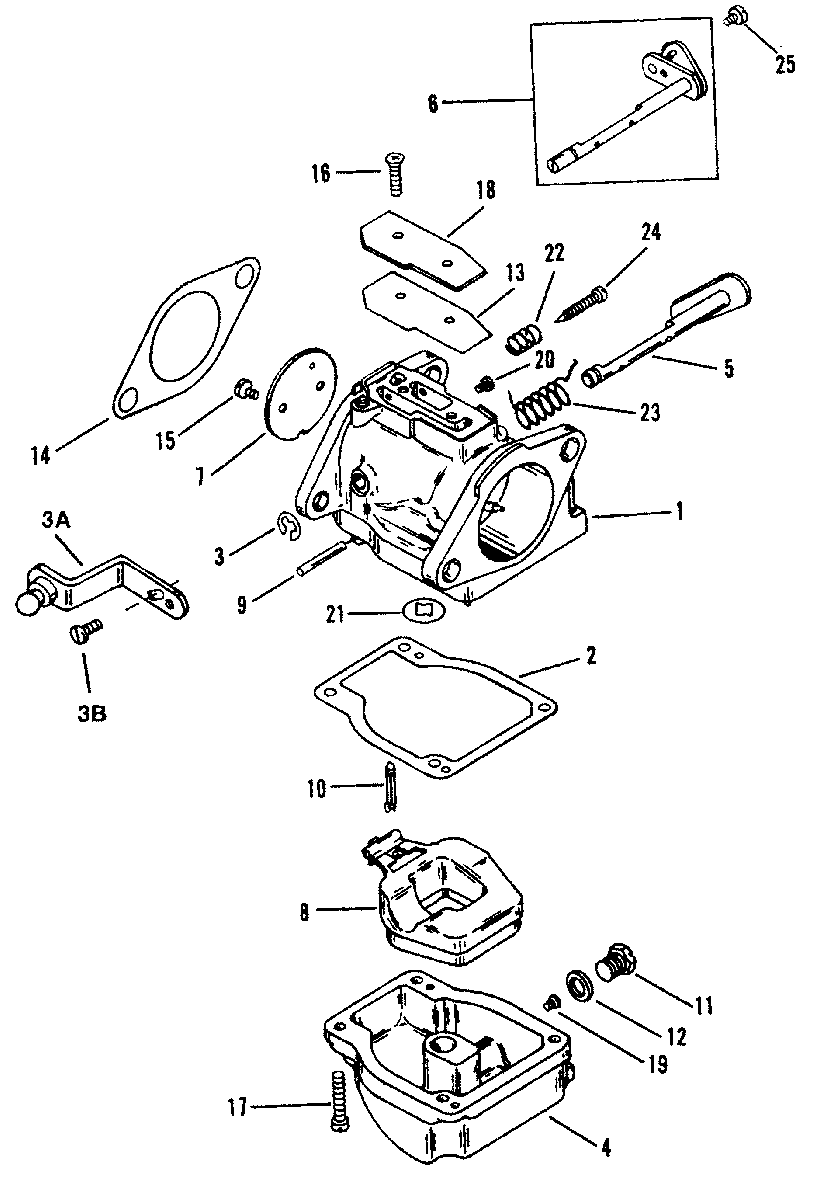

CARBURETOR (WME-26/27/28/28/43/44/45) для Mercury - 60 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
13301-821679T17 CARBURETOR (TOP)
50 - WME-26CARBURETOR (TOP)
50 - WME-26 -
13301-821679T18 CARBURETOR (CENTER)
50 - WME-26CARBURETOR (CENTER)
50 - WME-26 -
13301-821679T19 CARBURETOR (BOTTOM)
50 - WME-26CARBURETOR (BOTTOM)
50 - WME-26 -
13301-821946A45 CARBURETOR (TOP)
55 - WME-27CARBURETOR (TOP)
55 - WME-27 -
13301-821946A46 CARBURETOR (CENTER)
55 - WME-27CARBURETOR (CENTER)
55 - WME-27 -
13301-821946A47 CARBURETOR (BOTTOM)
55 - WME-27CARBURETOR (BOTTOM)
55 - WME-27 -
13301-821946T42 CARBURETOR (TOP)
60 - WME-28CARBURETOR (TOP)
60 - WME-28 -
13301-821946T43 CARBURETOR (CENTER)
60 - WME-28CARBURETOR (CENTER)
60 - WME-28 -
13301-821946T44 CARBURETOR (BOTTOM)
60 - WME-28CARBURETOR (BOTTOM)
60 - WME-28 -
13301-821679T17 CARBURETOR (TOP)
50 - WME-43CARBURETOR (TOP)
50 - WME-43 -
13301-821679T18 CARBURETOR (CENTER)
50 - WME-43CARBURETOR (CENTER)
50 - WME-43 -
13301-821679T19 CARBURETOR (BOTTOM)
50 - WME-43CARBURETOR (BOTTOM)
50 - WME-43 -
13301-821946A45 CARBURETOR (TOP)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44CARBURETOR (TOP)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44 -
13301-821946A46 CARBURETOR (CENTER)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44CARBURETOR (CENTER)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44 -
13301-821946A47 CARBURETOR (BOTTOM)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44CARBURETOR (BOTTOM)
55/60 SEAPRO/MARATHON 60 PONTOON WME-44 -
13301-821946T42 CARBURETOR (TOP)
60 - WME-45CARBURETOR (TOP)
60 - WME-45 -
13301-821946T43 CARBURETOR (CENTER)
60 - WME-45CARBURETOR (CENTER)
60 - WME-45 -
13301-821946T44 CARBURETOR (BOTTOM)
60 - WME-45CARBURETOR (BOTTOM)
60 - WME-45 -
2NSS GASKET, FUEL BOWLGASKET, FUEL BOWL
-
3NSS RETAINING RINGRETAINING RING
-
3A1395-8113522 LEVER, OIL PUMP
WME43/45 - BOTTOMLEVER, OIL PUMP
WME43/45 - BOTTOM -
3B1395-8086121 SCREW, OIL PUMP LEVER
WME43/45 - BOTTOMSCREW, OIL PUMP LEVER
WME43/45 - BOTTOM -
41395-811695 FUEL BOWL (UPPER)FUEL BOWL (UPPER)
-
41395-811693 FUEL BOWL (CENTER/BOTTOM)FUEL BOWL (CENTER/BOTTOM)
-
51395-823632 THROTTLE SHAFT (UPPER)
50/60THROTTLE SHAFT (UPPER)
50/60 -
61395-823633 THROTTLE SHAFT (CENTER)
50/60THROTTLE SHAFT (CENTER)
50/60 -
61395-823636 THROTTLE SHAFT (BOTTOM)
50/60THROTTLE SHAFT (BOTTOM)
50/60 -
51395-823632 THROTTLE SHAFT (UPPER/BOTTOM)
WME-27THROTTLE SHAFT (UPPER/BOTTOM)
WME-27 -
61395-823633 THROTTLE SHAFT (CENTER)
WME-44THROTTLE SHAFT (CENTER)
WME-44 -
71395-823637 THROTTLE VALVE
50 - WME 26THROTTLE VALVE
50 - WME 26 -
71395-9593 THROTTLE VALVE
55/60 - WME 27/28THROTTLE VALVE
55/60 - WME 27/28 -
797243 THROTTLE VALVE
WME 43/44/45THROTTLE VALVE
WME 43/44/45 -
81395-9594 FLOATFLOAT
-
9F10064 FLOAT SHAFTFLOAT SHAFT
-
101395-879194011 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
111395-811694 PLUG KITPLUG KIT
-
12NSS SEAL, BOWL DRAINSEAL, BOWL DRAIN
-
13NSS GASKET, COVER PLATEGASKET, COVER PLATE
-
1427-8144461 GASKET, FLANGEGASKET, FLANGE
-
1510-F10155 SCREW, THROTTLE VALVESCREW, THROTTLE VALVE
-
161395-811220 SCREW, COVER PLATESCREW, COVER PLATE
-
171395-808612 SCREW, FUEL BOWL
(WME 26/27/28)SCREW, FUEL BOWL
(WME 26/27/28) -
171395-808612 SCREW, FUEL BOWL
(WME 43/44/45)SCREW, FUEL BOWL
(WME 43/44/45) -
181395-811221 COVER PLATECOVER PLATE
-
191395-6246 MAIN FUEL JET
(.048 - 50)MAIN FUEL JET
(.048 - 50) -
191395-6487 MAIN JET
(.060 - 55/60 SEAPRO/MARATHON/PONTOON)MAIN JET
(.060 - 55/60 SEAPRO/MARATHON/PONTOON) -
191399-4217 MAIN FUEL JET
(.062 - 60)MAIN FUEL JET
(.062 - 60) -
201395-6247 VENT JET
(.090) (50/60)VENT JET
(.090) (50/60) -
21NSS GASKET, NOZZLE WELLGASKET, NOZZLE WELL
-
22NSS SPRING, IDLE NEEDLESPRING, IDLE NEEDLE
-
23NSS SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
24NSS IDLE NEEDLEIDLE NEEDLE
-
251395-823634 SCREW, THROTTLE ADJUSTMENT (UPPER/BOTTOM)SCREW, THROTTLE ADJUSTMENT (UPPER/BOTTOM)
-
-1395-8236354 CARB REPAIR KITCARB REPAIR KIT
-
-1395-8112231 CARB GASKET KITCARB GASKET KIT
-
-27-812867A97 ENGINE GASKET SETENGINE GASKET SET
