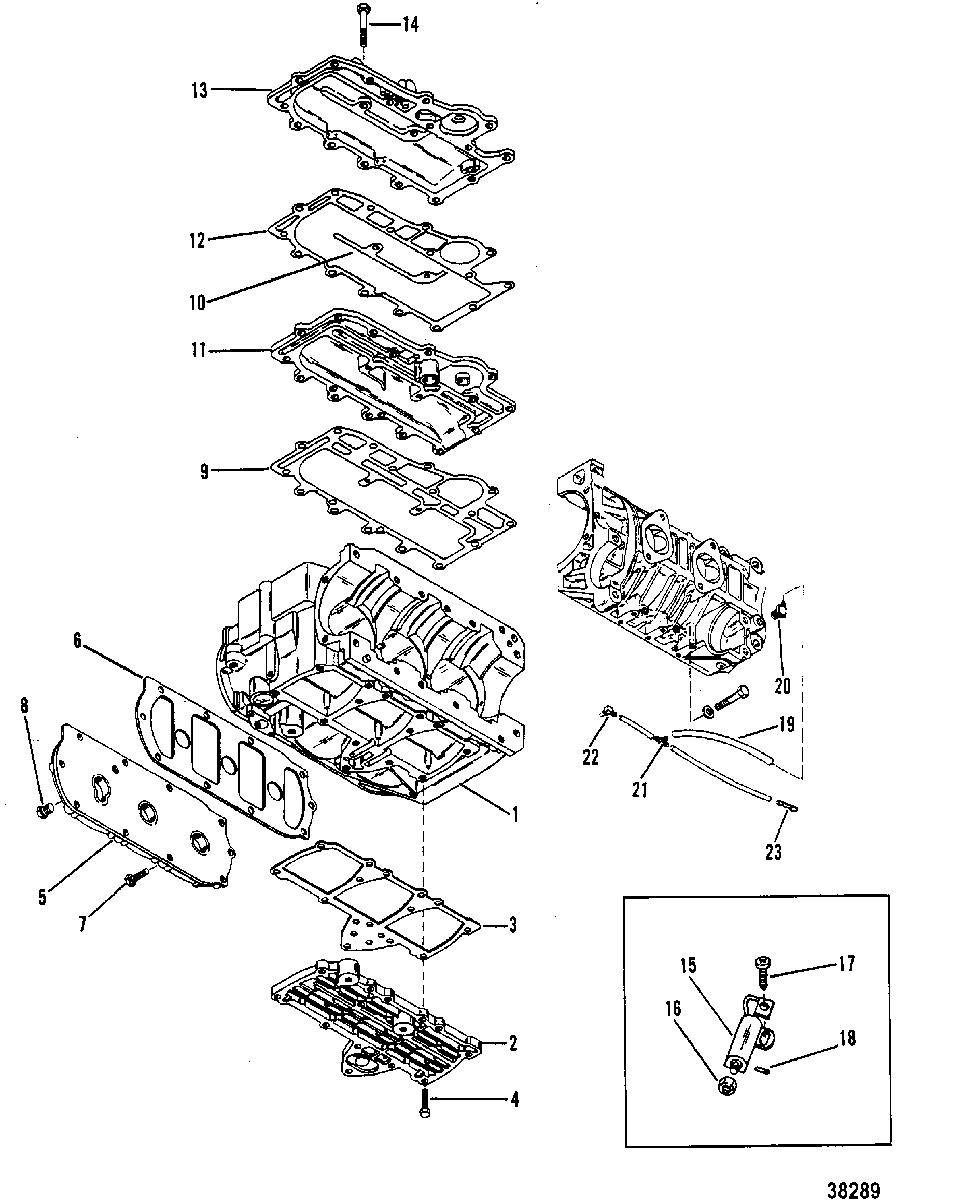

EXHAUST AND MANIFOLD COVERS для Mercury - 60 (3 CYL.) 6428681 THRU 0B122929

  • №
    Артикул
    Название
  • 1
    865-8362A11 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    99523A1 COVER ASSEMBLY, TRANSFER
    COVER ASSEMBLY, TRANSFER
  • 3
    27-768621 GASKET, TRANSFER COVER
    GASKET, TRANSFER COVER
  • 4
    10-38837 SCREW, (.312-18 x 1.12), TRANSFER COVER
    SCREW, (.312-18 x 1.12), TRANSFER COVER
  • 5
    1025-8364A1 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 6
    27-437792 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 7
    10-76630 SCREW, CYLINDER BLOCK COVER (1")
    SCREW, CYLINDER BLOCK COVER (1")
  • 7
    10-76596 SCREW, (.250-20 x 1.250), CYLINDER BLOCK COVER
    SCREW, (.250-20 x 1.250), CYLINDER BLOCK COVER
  • 8
    22-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK COVER
    PLUG, Pipe (.125-27), CYLINDER BLOCK COVER
  • 9
    27-695252 GASKET, BAFFLE PLATE TO CYLINDER BLOCK
    GASKET, BAFFLE PLATE TO CYLINDER BLOCK
  • 10
    27-703351 GASKET, BAFFLE PLATE TO COVER
    GASKET, BAFFLE PLATE TO COVER
  • 11
    69579 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 12
    27-695242 GASKET, PLATE TO EXHAUST MANIFOLD COVER
    GASKET, PLATE TO EXHAUST MANIFOLD COVER
  • 13
    78529 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 14
    10-38837 SCREW, (.312-18 x 1.12), PLATE AND MANIFOLD COVER
    SCREW, (.312-18 x 1.12), PLATE AND MANIFOLD COVER
  • 14
    10-74824 SCREW, (1.25), PLATE AND MANIFOLD COVER (1-1/4")
    SCREW, (1.25), PLATE AND MANIFOLD COVER (1-1/4")
  • 14
    10-70602 SCREW, (.250-20 x 2.00), PLATE/MANIFOLD COVER
    SCREW, (.250-20 x 2.00), PLATE/MANIFOLD COVER
  • 15
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 16
    11-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
    NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
  • 17
    10-37655 SCREW, (#10-32 x .500), MERCURY SWITCH TO CRANKCASE
    SCREW, (#10-32 x .500), MERCURY SWITCH TO CRANKCASE
  • 18
    17-36242 PIN, Roll, MERCURY SWITCH
    PIN, Roll, MERCURY SWITCH
  • 19
    32-892024122 TUBING, (20.00 Feet Bulk), CRANKCASE BLEED
    TUBING, (20.00 Feet Bulk), CRANKCASE BLEED
  • 20
    21-428641 FITTING, CRANKCASE BLEED
    FITTING, CRANKCASE BLEED
  • 21
    22-59169003 FITTING, CRANKCASE BLEED HOSE
    FITTING, CRANKCASE BLEED HOSE
  • 22
    22-15133 ELBOW, CRANKCASE (PRESS-IN)
    ELBOW, CRANKCASE (PRESS-IN)
  • 23
    21-428651 CONNECTOR, ATTENUATOR
    CONNECTOR, ATTENUATOR
  • -
    27-88449A32 GASKET SET
    GASKET SET
