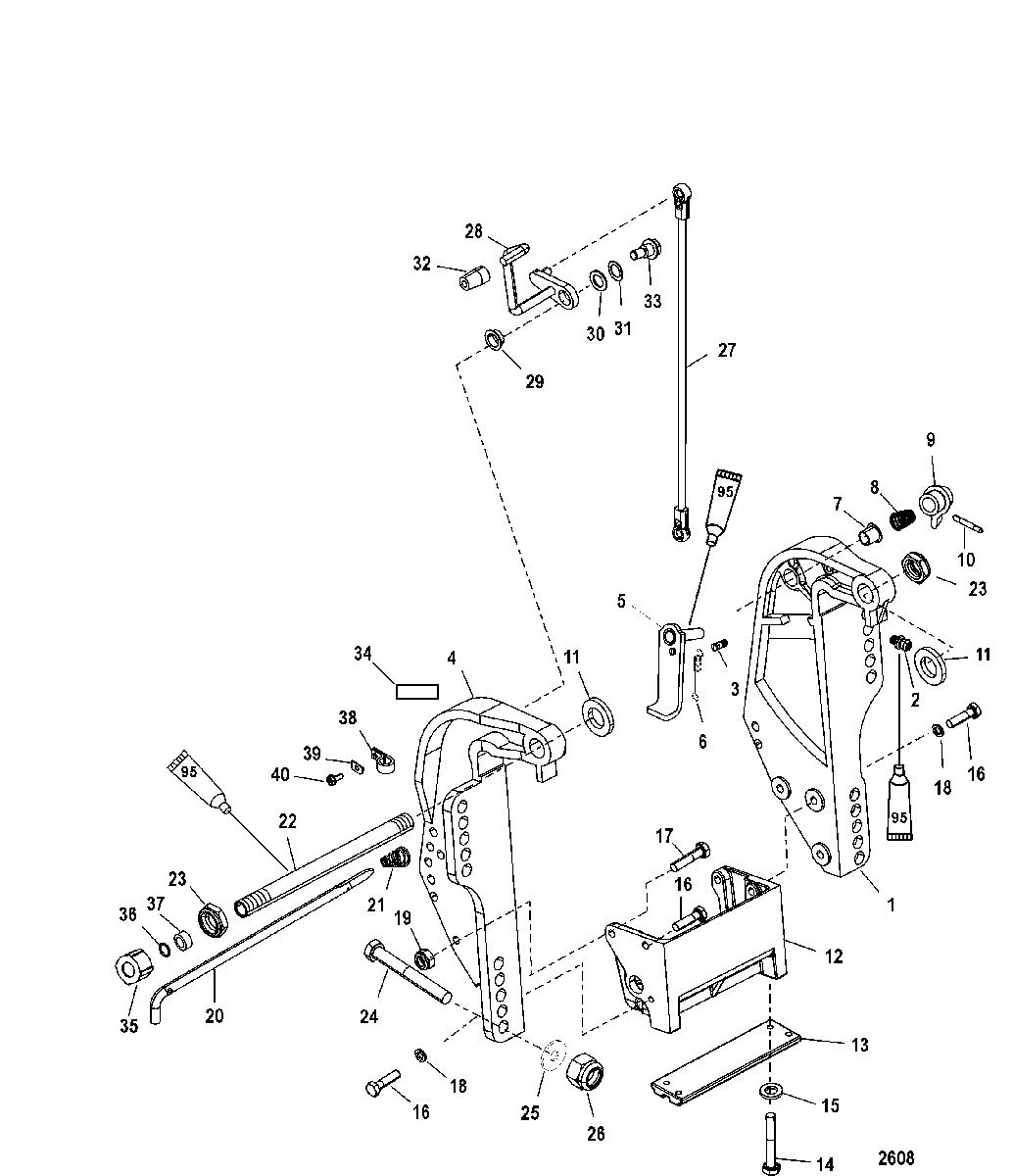

Transom Bracket(Electric) для Mercury - 60 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
13418-822866T04 BRACKET ASSEMBLY, Transom
(Black-Port)BRACKET ASSEMBLY, Transom
(Black-Port) -
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43418-822865T05 BRACKET, Transom
(Black-Starboard)BRACKET, Transom
(Black-Starboard) -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(Black)LEVER ASSEMBLY, Tilt Lock
(Black) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(Black)KNOB
(Black) -
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor (Black)
SN# 1B267730 & BelowBRACKET, Anchor (Black)
SN# 1B267730 & Below -
1218486A08 BRACKET, Anchor (Black)
SN# 0P413370 & BelowBRACKET, Anchor (Black)
SN# 0P413370 & Below -
1218486A08 BRACKET KIT, Anchor (Black)
SN# 1B267731 & UpBRACKET KIT, Anchor (Black)
SN# 1B267731 & Up -
1218486A08 BRACKET KIT, Anchor (Black)
SN# 0P413371 & UpBRACKET KIT, Anchor (Black)
SN# 0P413371 & Up -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-85594030 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1710-8M0000586 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1812-843108 WASHER, (.330 x .560 x .060) Stainless SteelWASHER, (.330 x .560 x .060) Stainless Steel
-
1911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2017-8M0026068 PIN ASSEMBLY, Tilt Lock
(Non Power Trim)PIN ASSEMBLY, Tilt Lock
(Non Power Trim) -
2124-821461 SPRING
(Non Power Trim)SPRING
(Non Power Trim) -
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (.875-14)NUT, (.875-14)
-
2410-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2512-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2611-82671117 NUT, (.500-20)NUT, (.500-20)
-
278M0084737 LINK
(Non Power Trim)LINK
(Non Power Trim) -
2819615A05 LEVER ASSEMBLY, Tilt
(Non Power Trim)LEVER ASSEMBLY, Tilt
(Non Power Trim) -
2923-812707 BUSHING
(Non Power Trim)BUSHING
(Non Power Trim) -
3012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
(Non Power Trim)WASHER, (.520 x .850 x .060) Nylon - Black
(Non Power Trim) -
3113-99611 WAVE WASHER
(Non Power Trim)WAVE WASHER
(Non Power Trim) -
328M0007469 TILT KNOB
(Non Power Trim)TILT KNOB
(Non Power Trim) -
3310-19611 SCREW, (.375-16 x .62)
(Non Power Trim)SCREW, (.375-16 x .62)
(Non Power Trim) -
3437-830253 DECAL, Tilt Lock
(Non Power Trim)DECAL, Tilt Lock
(Non Power Trim) -
3519624A1 SEAL KITSEAL KIT
-
3625-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
3723-78861 SPACERSPACER
-
3854-22740 CLIP
(Power Trim)CLIP
(Power Trim) -
398M0084613 C WASHER
(Power Trim)C WASHER
(Power Trim) -
4010-878608 SCREW, (#10-16 x .500)
(Power Trim)SCREW, (#10-16 x .500)
(Power Trim)
