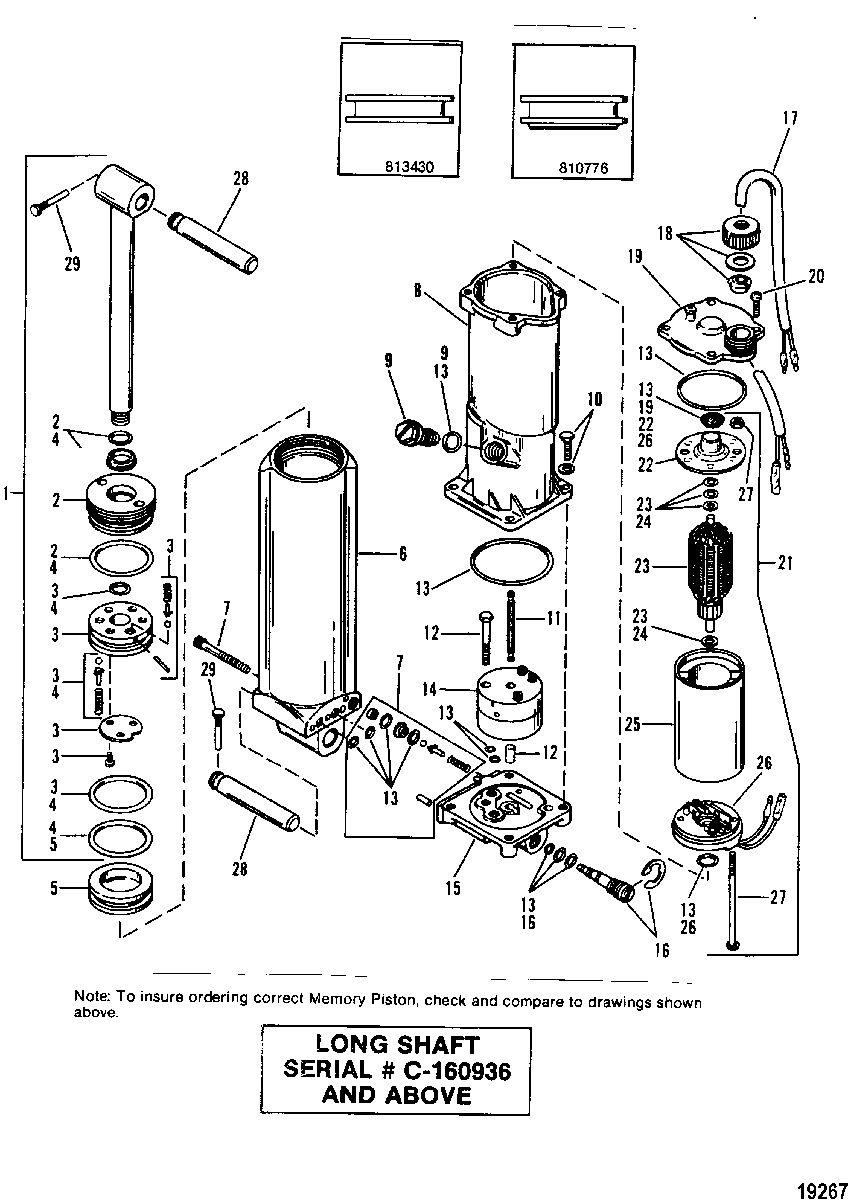

Electric Trim Components(Long-S/N-0C160936 & Up) для Mercury - 60 (3 CYL.) 0B122930 THRU 0D000749

  • №
    Артикул
    Название
  • 1
    813427 SHOCK ROD ASSEMBLY KIT
    SHOCK ROD ASSEMBLY KIT
  • 2
    813428 END CAP ASSEMBLY, Trim Cylinder
    END CAP ASSEMBLY, Trim Cylinder
  • 3
    813429 PISTON ASSEMBLY, Shock
    PISTON ASSEMBLY, Shock
  • 4
    813432A1 CYLINDER REBUILD KIT
    CYLINDER REBUILD KIT
  • 5
    893903A01 PISTON KIT, Trim Memory (SEE NOTE)
    PISTON KIT, Trim Memory (SEE NOTE)
  • 5
    810776 PISTON KIT, Memory (SEE NOTE)
    PISTON KIT, Memory (SEE NOTE)
  • 6
    810777 CYLINDER KIT
    CYLINDER KIT
  • 7
    893919A01 SCREW AND SEAL KIT, CYLINDER
    SCREW AND SEAL KIT, CYLINDER
  • 8
    813434A1 RESERVOIR
    RESERVOIR
  • 9
    22-8134351 PLUG KIT
    PLUG KIT
  • 10
    10-813436 SCREW KIT
    SCREW KIT
  • 11
    813437 DRIVESHAFT
    DRIVESHAFT
  • 12
    813438 SCREW AND PIN KIT
    SCREW AND PIN KIT
  • 13
    25-813439A3 SEAL KIT
    SEAL KIT
  • 14
    811227 PUMP
    PUMP
  • 15
    813441 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 16
    893929A01 RELIEF VALVE KIT
    RELIEF VALVE KIT
  • 17
    84-811698 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 18
    84-811698 BEZEL KIT
    BEZEL KIT
  • 19
    813445 CAP KIT, Reservoir
    CAP KIT, Reservoir
  • 20
    10-813446 SCREW, CAP
    SCREW, CAP
  • 21
    813447 MOTOR KIT
    MOTOR KIT
  • 22
    813448 END CAP
    END CAP
  • 23
    813449A1 ARMATURE
    ARMATURE
  • 24
    12-813450 THRUST WASHER KIT
    THRUST WASHER KIT
  • 25
    813451 SHELL AND MAGNET KIT
    SHELL AND MAGNET KIT
  • 26
    813452 END FRAME KIT
    END FRAME KIT
  • 27
    10-813453 BOLT AND NUT KIT
    BOLT AND NUT KIT
  • 28
    17-19607 PIN
    PIN
  • 29
    17-821539 PIN, Groove
    PIN, Groove
  • 30
    19686 BRACKET
    BRACKET
  • 31
    84-19758A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 32
    87-18211 RELAY SWITCH
    RELAY SWITCH
  • 34
    10-20401 SCREW, (.190-24 x .38)
    SCREW, (.190-24 x .38)
  • -
    854472A3 PUMP ASSEMBLY, Trim, COMPLETE
    INCLUDES ALL PARTS ON THIS PAGE
    PUMP ASSEMBLY, Trim, COMPLETE
    INCLUDES ALL PARTS ON THIS PAGE
