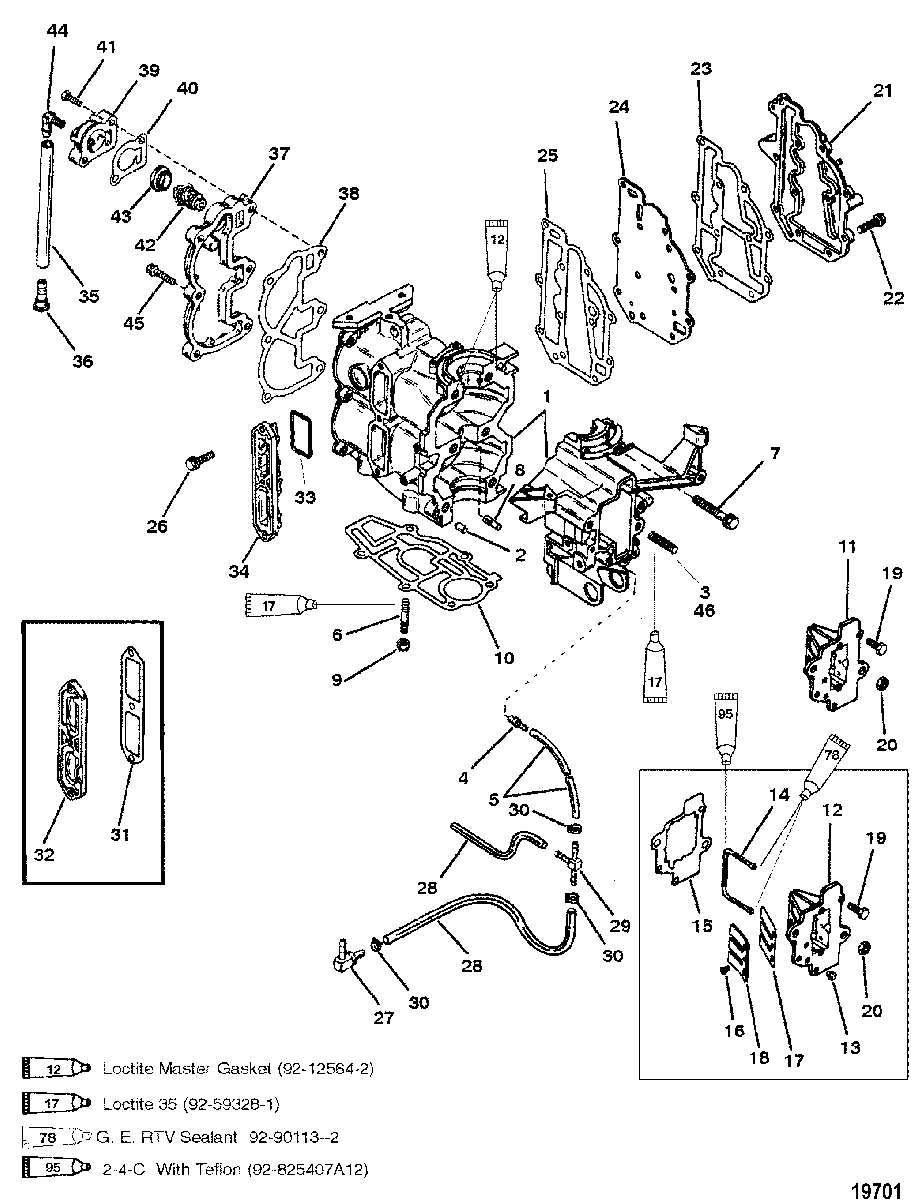

Cylinder Block and Covers для Mercury - 6 9792200 THRU 0P016999
-
№АртикулНазвание
-
1881-9727T2 CYLINDER BLOCK
(15) SN# USA-0G112449/BEL-9831799 & BelowCYLINDER BLOCK
(15) SN# USA-0G112449/BEL-9831799 & Below -
1881-9727T12 CYLINDER BLOCK
(15) SN# USA-0G112450/BEL-9831800 & UpCYLINDER BLOCK
(15) SN# USA-0G112450/BEL-9831800 & Up -
1875-8473T20 CYLINDER BLOCK
(6)CYLINDER BLOCK
(6) -
1875-8473T21 CYLINDER BLOCK
(8)CYLINDER BLOCK
(8) -
1881-9727T12 CYLINDER BLOCK
(9.9)CYLINDER BLOCK
(9.9) -
217-85171 PIN, DowelPIN, Dowel
-
316-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
421-426982 CHECK VALVECHECK VALVE
-
532-892024122 TUBING, (20.00 Feet Bulk) (2-1/2 IN.)TUBING, (20.00 Feet Bulk) (2-1/2 IN.)
-
616-8161949 STUDSTUD
-
710-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
817-17866 PIN, Groove
(15)PIN, Groove
(15) -
911-401386 NUT, (M6)NUT, (M6)
-
1027-191861 GASKET, PowerheadGASKET, Powerhead
-
11828435A3 REED BLOCK (One Piece Design)(Rubber Coated)
SN# USA-0G437999/BEL-9926999 & BelowREED BLOCK (One Piece Design)(Rubber Coated)
SN# USA-0G437999/BEL-9926999 & Below -
11828435A3 REED BLOCK
SN# USA-0G438000/BEL-9927000 & UpREED BLOCK
SN# USA-0G438000/BEL-9927000 & Up -
12828435A3 REED BLOCK ASSEMBLY
(Replaced by One Piece Design Reed Block)REED BLOCK ASSEMBLY
(Replaced by One Piece Design Reed Block) -
1321-42657A3 CHECK VALVE
(Replaced by One Piece Design Reed Block)CHECK VALVE
(Replaced by One Piece Design Reed Block) -
1426-42137 SEAL
(Replaced by One Piece Design Reed Block)SEAL
(Replaced by One Piece Design Reed Block) -
1527-195982 GASKET
(Replaced by One Piece Design Reed Block)GASKET
(Replaced by One Piece Design Reed Block) -
1610-4005764 SCREW, (M3.5 x 8)
(Replaced by One Piece Design Reed Block)SCREW, (M3.5 x 8)
(Replaced by One Piece Design Reed Block) -
1734-825141 REED
(Replaced by One Piece Design Reed Block)REED
(Replaced by One Piece Design Reed Block) -
18828435A3 STOP, Reed
(Replaced by One Piece Design Reed Block)STOP, Reed
(Replaced by One Piece Design Reed Block) -
1910-4000171 SCREW, (M6 x 16)
(Included with Powerhead on S/N-USA-0G438000-BEL-9927000 & Up)SCREW, (M6 x 16)
(Included with Powerhead on S/N-USA-0G438000-BEL-9927000 & Up) -
2011-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
218M0048005 COVERCOVER
-
2210-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2327-19185 GASKETGASKET
-
2442365 PLATE, BafflePLATE, Baffle
-
2527-19184 GASKETGASKET
-
2610-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2722-56759 FITTING, BarbedFITTING, Barbed
-
2832-892024122 TUBING, (20.00 Feet Bulk) (5-1/4 IN.)(7 IN.)TUBING, (20.00 Feet Bulk) (5-1/4 IN.)(7 IN.)
-
2922-59169003 FITTINGFITTING
-
3054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3127-192031 GASKET
(6/8) (9.9/15) USA SN# 0G112449 /Belgium SN# 9831799 AND BELOW(6/8)GASKET
(6/8) (9.9/15) USA SN# 0G112449 /Belgium SN# 9831799 AND BELOW(6/8) -
3127-192031 GASKET
(9.9/15) SN# USA-0G112449/BEL-9831799 & BelowGASKET
(9.9/15) SN# USA-0G112449/BEL-9831799 & Below -
3219107F1 COVER, Intake
(6/8) (9.9/15) USA SN# 0G112449 /Belgium SN# 9831799 AND BELOW(6/8)COVER, Intake
(6/8) (9.9/15) USA SN# 0G112449 /Belgium SN# 9831799 AND BELOW(6/8) -
3219107F1 COVER, Intake
SN# USA-0G112449/BEL-9831799 & BelowCOVER, Intake
SN# USA-0G112449/BEL-9831799 & Below -
3325-36324 O-RING, (1.549 x .103)
(9.9/15) SN# USA-0G112450/BEL-9831800 & UpO-RING, (1.549 x .103)
(9.9/15) SN# USA-0G112450/BEL-9831800 & Up -
348M0036812 COVER, Intake
(9.9/15) SN# USA-0G112450/BEL-9831800 & UpCOVER, Intake
(9.9/15) SN# USA-0G112450/BEL-9831800 & Up -
3532-8M0108355 HOSE, (57.00 Inches Bulk)HOSE, (57.00 Inches Bulk)
-
3622-94848 FITTING, BOTTOM COWLFITTING, BOTTOM COWL
-
371033-8906A02 COVER ASSEMBLYCOVER ASSEMBLY
-
3827-19207002 GASKETGASKET
-
398M0039352 COVERCOVER
-
4027-19205002 GASKETGASKET
-
4110-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4214586 THERMOSTAT (120 DEGREES)THERMOSTAT (120 DEGREES)
-
4327-62386001 GASKETGASKET
-
4422-291112 CONNECTORCONNECTOR
-
4510-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4616-429173 STUD
(RESTRICTED/NORWAY MODELS)STUD
(RESTRICTED/NORWAY MODELS) -
-19072T88 POWERHEAD ASSEMBLY, Complete
(15) SN# USA-0G112449/BEL-9831799 & BelowPOWERHEAD ASSEMBLY, Complete
(15) SN# USA-0G112449/BEL-9831799 & Below -
-19072T97 POWERHEAD ASSEMBLY
(15) SN# USA-0G112450/BEL-9831800 & UpPOWERHEAD ASSEMBLY
(15) SN# USA-0G112450/BEL-9831800 & Up -
-12893T97 POWERHEAD ASSEMBLY
(6)POWERHEAD ASSEMBLY
(6) -
-811686T97 POWERHEAD ASSEMBLY
(8)POWERHEAD ASSEMBLY
(8) -
-19072T97 POWERHEAD ASSEMBLY
(9.9)POWERHEAD ASSEMBLY
(9.9) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
