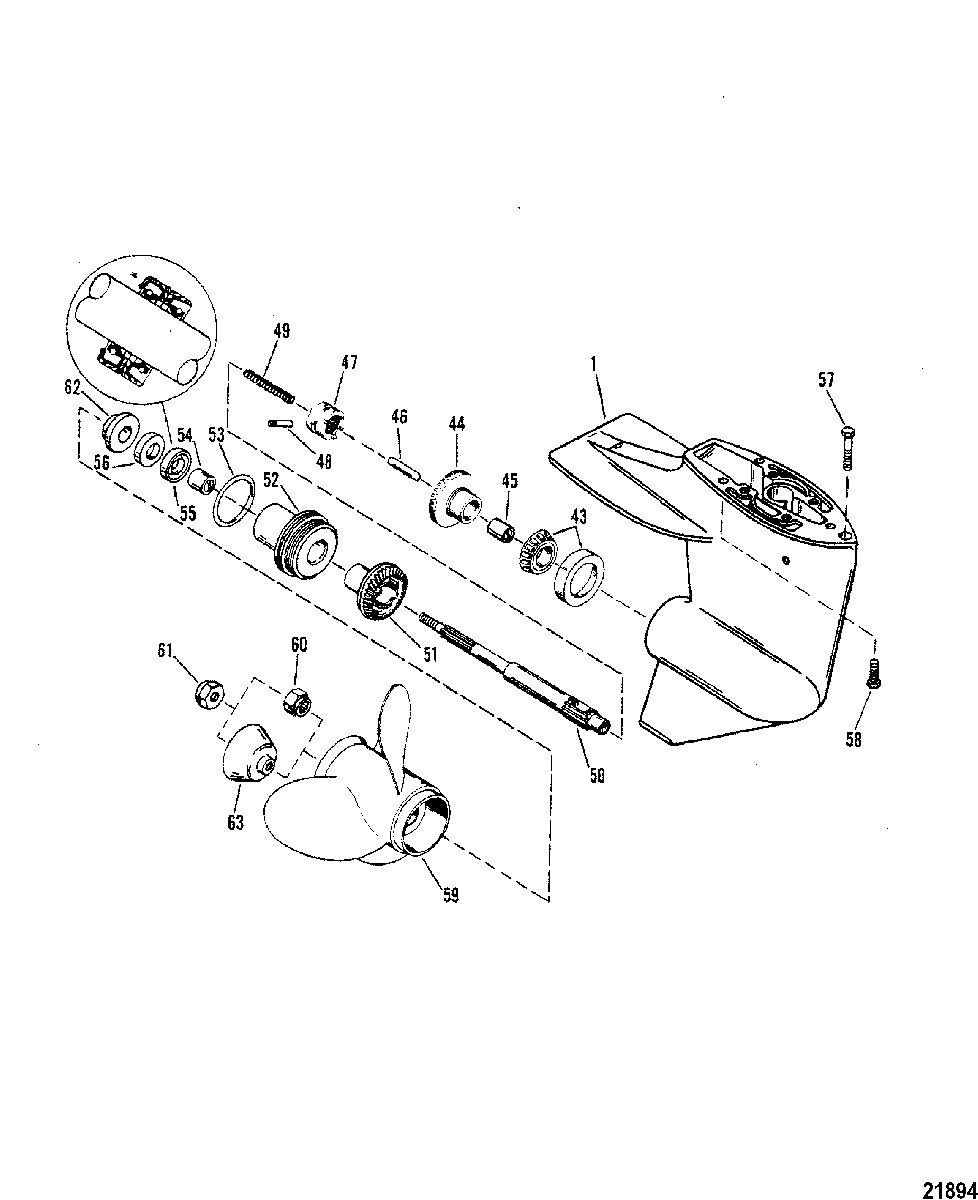

Gear Hsg(Propshaft-Design II-Refer to Driveshaft Drawing) для Mercury - 6 0A197112 THRU 0D280999

  • №
    Артикул
    Название
  • -
    1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) BLACK
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) BLACK
  • -
    1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK
  • -
    1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) GRAY
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) GRAY
  • -
    1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
    (Black)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (Black)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
    (Gray)
    GEAR HOUSING ASSEMBLY, Basic-Gray
    (Gray)
  • 43
    31-821321A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 44
    43-821924A1 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 45
    23-41367 BUSHING
    BUSHING
  • 46
    813139 FOLLOWER, Cam
    FOLLOWER, Cam
  • 47
    52-821930A1 CLUTCH
    CLUTCH
  • 48
    17-823951 PIN, Cross
    PIN, Cross
  • 49
    24-42204 SPRING
    SPRING
  • 50
    44-821929 PROPELLER SHAFT
    PROPELLER SHAFT
  • 51
    43-821926T1 GEAR, Reverse - 13/26
    GEAR, Reverse - 13/26
  • 52
    42144T3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 53
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 54
    23-821927 BUSHING
    BUSHING
  • 55
    26-99325 SEAL
    SEAL
  • 56
    26-821928 SEAL, Oil
    SEAL, Oil
  • 57
    10-82407110 SCREW
    SCREW
  • 58
    10-8240717 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 59
    48-828156A12 PROPELLER (9 x 9)
    PROPELLER (9 x 9)
  • 59
    48-828150A12 PROPELLER (9.75 x 6.50)
    PROPELLER (9.75 x 6.50)
  • 60
    23-420911 SPACER
    SPACER
  • 61
    11-40140 NUT, (M10)
    NUT, (M10)
  • 62
    821932 THRUST HUB
    THRUST HUB
  • 63
    822559Q01 CUP, Reverse Exhaust Block
    CUP, Reverse Exhaust Block
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-41365A3 SEAL KIT
    SEAL KIT
