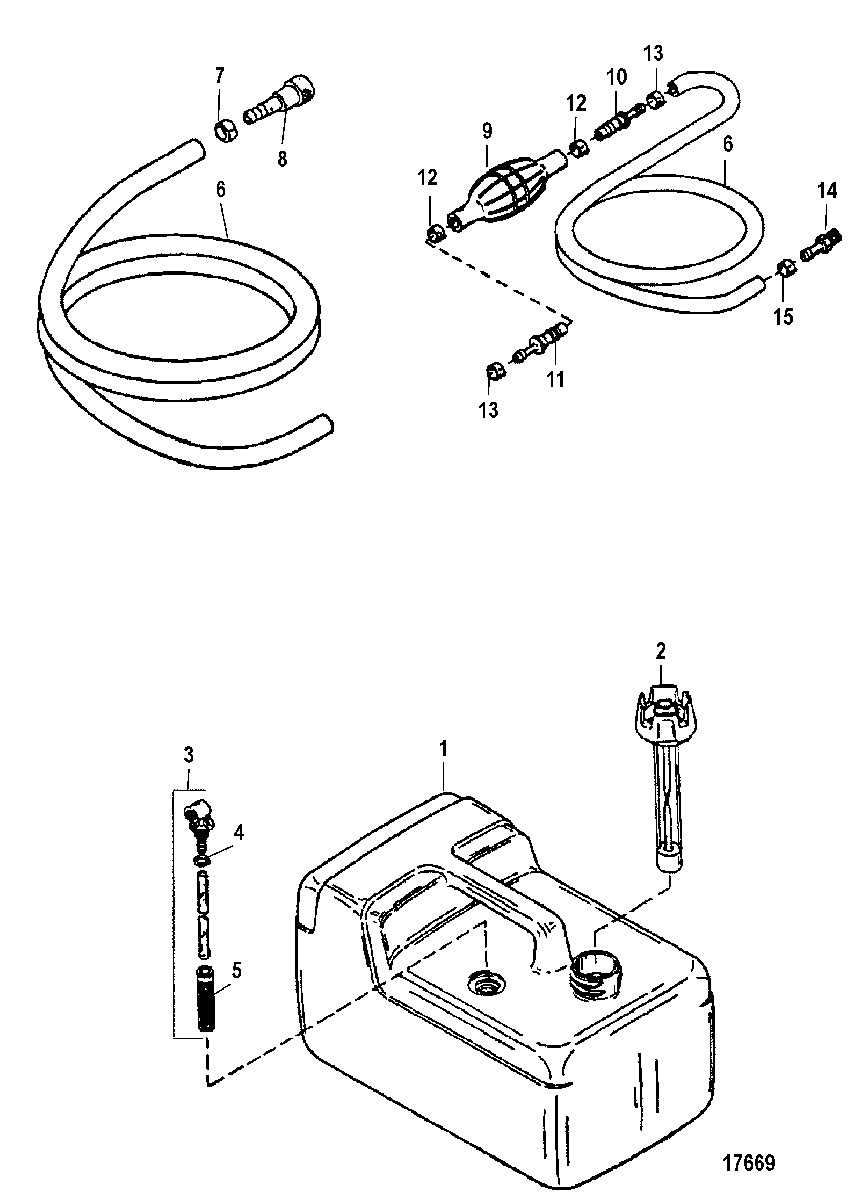

Fuel Tank(Plastic - 3.2 Gallon) для Mercury - 6 (2 Cyl.)(International) 0N055110 & Up
-
№АртикулНазвание
-
11260-859061A1 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
2823535 GAUGE/CAP ASSEMBLYGAUGE/CAP ASSEMBLY
-
NS27-8169771 GASKET, Fuel CapGASKET, Fuel Cap
-
322-823531A1 CONNECTOR KIT, FuelCONNECTOR KIT, Fuel
-
425-823533 O-RINGO-RING
-
535-823534 SCREENSCREEN
-
632-8M0126969 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
754-853798 CLAMPCLAMP
-
822-8M0120628 CONNECTOR, Fuel, Engine EndCONNECTOR, Fuel, Engine End
-
913330Q07 BULB ASSEMBLY, PrimerBULB ASSEMBLY, Primer
-
1021-13331A3 CHECK VALVE ASSEMBLY (Inlet)CHECK VALVE ASSEMBLY (Inlet)
-
1121-13331A4 CHECK VALVE ASSEMBLY (Outlet)CHECK VALVE ASSEMBLY (Outlet)
-
1254-4158210 CLAMP, Nylon (Large)CLAMP, Nylon (Large)
-
1354-41582Q7 CLAMP (Small)CLAMP (Small)
-
1422-89771Q2 CONNECTOR, (.250-18), Fuel TankCONNECTOR, (.250-18), Fuel Tank
-
1554-41582Q7 CLAMPCLAMP
