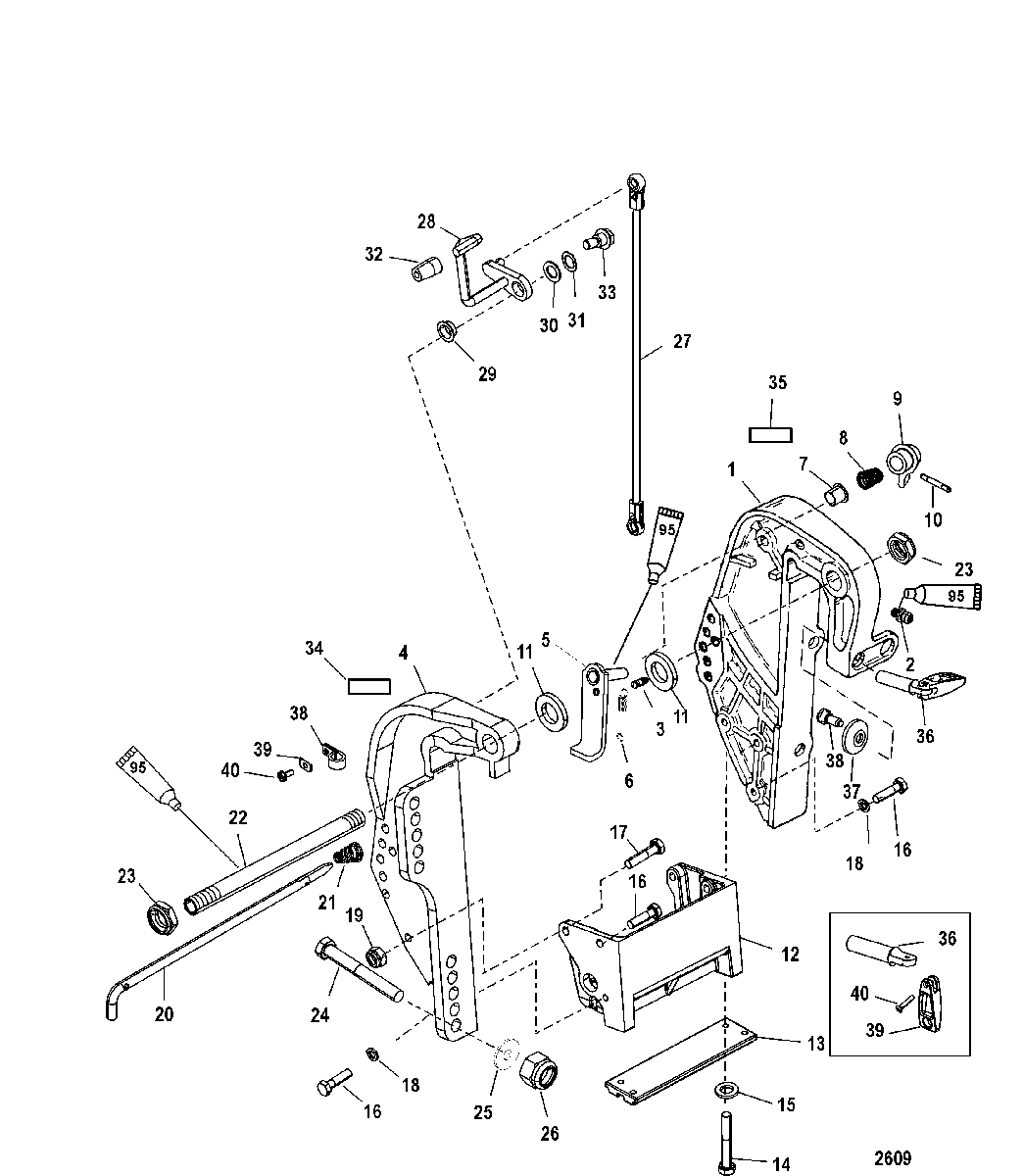

Clamp Bracket(Manual) для Mercury - 55 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
13420-8M0084195 CLAMP BRACKET ASSEMBLY
(Black-Port)CLAMP BRACKET ASSEMBLY
(Black-Port) -
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43419-822867F1 CLAMP BRACKET
(Black)CLAMP BRACKET
(Black) -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(Black)LEVER ASSEMBLY, Tilt Lock
(Black) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(Black)KNOB
(Black) -
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor
(Black)BRACKET, Anchor
(Black) -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-85594030 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1710-8M0000586 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1812-843108 WASHER, (.330 x .560 x .060) Stainless SteelWASHER, (.330 x .560 x .060) Stainless Steel
-
1911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2017-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
2124-821461 SPRINGSPRING
-
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (.875-14)NUT, (.875-14)
-
2410-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2512-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2611-82671117 NUT, (.500-20)NUT, (.500-20)
-
278M0084737 LINKLINK
-
2819615A05 LEVER ASSEMBLY, TiltLEVER ASSEMBLY, Tilt
-
2923-812707 BUSHINGBUSHING
-
3012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
3113-99611 WAVE WASHERWAVE WASHER
-
328M0007469 TILT KNOBTILT KNOB
-
3310-19611 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
3437-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
35NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
3610-818883A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
3712-818884 WASHERWASHER
-
3810-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
39NSS NOT SOLD SEPARATE, HandleNOT SOLD SEPARATE, Handle
-
40NSS NOT SOLD SEPARATE, RivetNOT SOLD SEPARATE, Rivet
