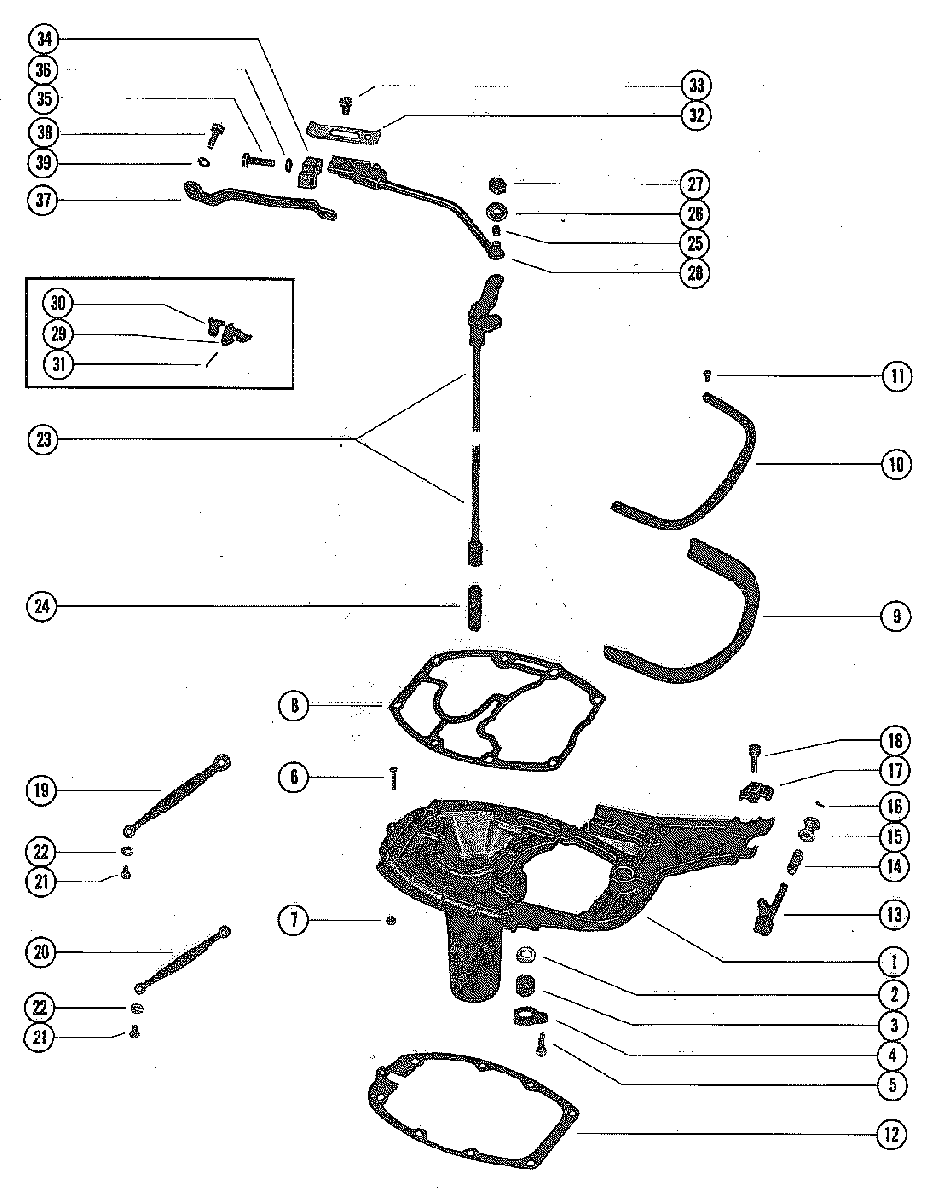

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE для Mercury - 500 2742142 THRU 7051982
-
№АртикулНазвание
-
142819A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
212-38453 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
326-38452 SEAL, RUBBER - WATER TUBESEAL, RUBBER - WATER TUBE
-
438500 RETAINER, WATER TUBE SEALRETAINER, WATER TUBE SEAL
-
510-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
-
610-56500 SCREW, EXHAUST PLATE (1 1/4")
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747SCREW, EXHAUST PLATE (1 1/4")
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
711-20184 NUT, EXHAUST PLATE SCREW
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747NUT, EXHAUST PLATE SCREW
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
827-796501 GGASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
938156 SEAL, RUBBER - EXHAUST EXTENSION PLATESEAL, RUBBER - EXHAUST EXTENSION PLATE
-
1099136 STRIP, RUBBER SEAL RETAININGSTRIP, RUBBER SEAL RETAINING
-
1110-37571 SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")
-
1227-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
1359037A2 LEVER, THROTTLE AND SHIFT CABLES
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3015353
CANADA 2742142 THRU 3015453LEVER, THROTTLE AND SHIFT CABLES
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3015353
CANADA 2742142 THRU 3015453 -
1359037A2 LEVER, THROTTLE AND SHIFT CABLES
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UPLEVER, THROTTLE AND SHIFT CABLES
UNITED STATES 9008819 AND UP
AUSTRALIA 3015354 AND UP
BELGIUM 9001581 AND UP
CANADA 3015454 AND UP -
1424-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVERSPRING, COMPRESSION - QUICK DISCONNECT LEVER
-
1523-37927 BUSHING, NYLON - QUICK DISCONNECT LEVERBUSHING, NYLON - QUICK DISCONNECT LEVER
-
1617-239281 PIN, ROLL - QUICK DISCONNECT LEVERPIN, ROLL - QUICK DISCONNECT LEVER
-
1737926 RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATERETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
-
1810-37923 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
-
1946933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
-
2046933A2 GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
-
2110-62568 SCREW, GROUND STRAP (3/8" SELF TAPPING)SCREW, GROUND STRAP (3/8" SELF TAPPING)
-
2213-69432 LOCKWASHER, GROUND STRAP SCREWLOCKWASHER, GROUND STRAP SCREW
-
2357244A3 SHIFT SHAFT ASSEMBLY, UPPER(SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER(SHORT SHAFT)
-
2357244A4 SHIFT SHAFT ASSEMBLY, UPPER(LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER(LONG SHAFT)
-
2493960A1 COUPLING, UPPER SHIFT SHAFTCOUPLING, UPPER SHIFT SHAFT
-
2523-26600 BUSHING, NYLON - UPPER SHIFT SHAFTBUSHING, NYLON - UPPER SHIFT SHAFT
-
2612-24664 WASHER, SHIFT CONTROL ACTUATORWASHER, SHIFT CONTROL ACTUATOR
-
2711-826709109 NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFTNUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
-
2837948A5 ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407 -
2956806 RETAINER, QUICK DISCONNECT LATCH
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407RETAINER, QUICK DISCONNECT LATCH
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407 -
3056807 LATCH, QUICK DISCONNECT - ACTUATOR
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407LATCH, QUICK DISCONNECT - ACTUATOR
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407 -
3117-24800 PIN, ROLL - ACTUATOR
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407PIN, ROLL - ACTUATOR
UNITED STATES 2858814 THRU 3572281
AUSTRALIA 2863739 THRU 8006764
BELGIUM 9001581 THRU 9021008
CANADA 2742142 THRU 7014407 -
2837948A5 ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UPACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UP -
3224-37934 SPRING, SHIFT CABLE
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UPSPRING, SHIFT CABLE
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UP -
3310-38069 SCREW, SPRING TO ACTUATOR
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UPSCREW, SPRING TO ACTUATOR
UNITED STATES 3572282 AND UP
AUSTRALIA 8006765 AND UP
CANADA 7014408 AND UP -
3437932 BEARING, NYLON - SHIFT CONTROL ACTUATORBEARING, NYLON - SHIFT CONTROL ACTUATOR
-
3510-36137 SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")
-
3613-21272 LOCKWASHER, BEARING SCREWLOCKWASHER, BEARING SCREW
-
3737935 RAIL, SHIFT CONTROL BEARINGRAIL, SHIFT CONTROL BEARING
-
3810-69028 SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")
-
3913-26992 LOCKWASHER, RAIL SCREWLOCKWASHER, RAIL SCREW
