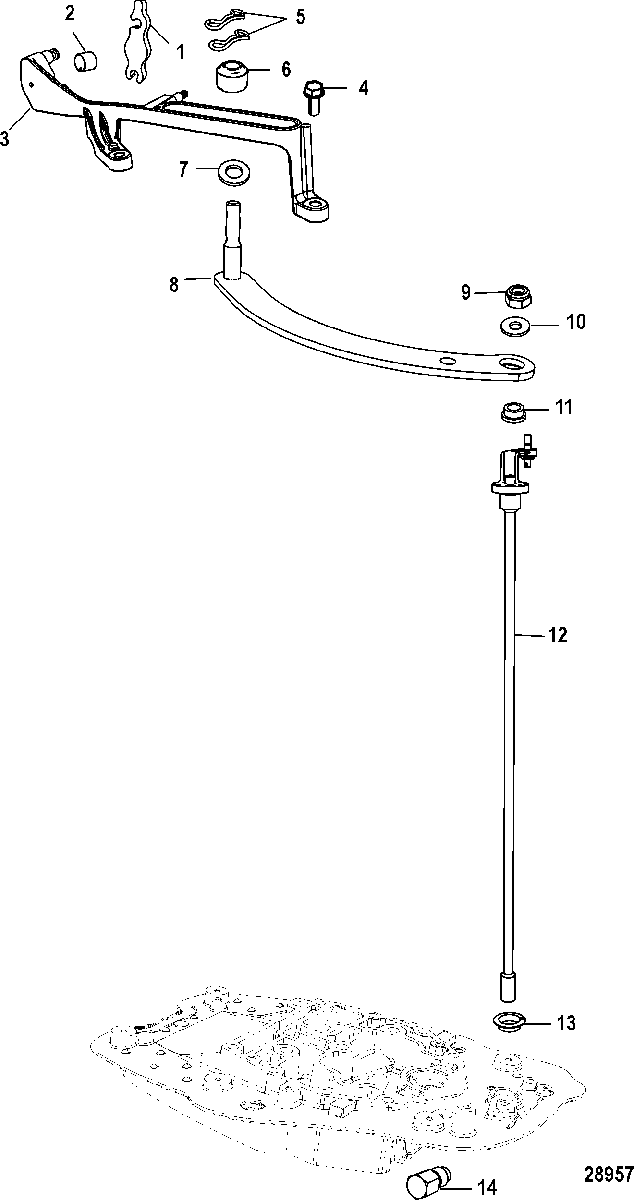

Shift Linkage, Big Tiller Gas Assist для Mercury - 50 EFI (4 CYL.)(4-STROKE) 1C050252 & Up
-
№АртикулНазвание
-
1899044 LATCHLATCH
-
2824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
38M0007243 BRACKETBRACKET
-
410-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
58M0001157 PIN, Bow Tie ClipPIN, Bow Tie Clip
-
6899042 ROLLERROLLER
-
712-888832 WASHERWASHER
-
8899041 LINK, ShiftLINK, Shift
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1123-892263 BUSHINGBUSHING
-
128M0091612 SHIFT SHAFT, Upper - LongSHIFT SHAFT, Upper - Long
-
1323-74647 NYLINERNYLINER
-
14888823001 SHIFT DETENT ASSEMBLYSHIFT DETENT ASSEMBLY
