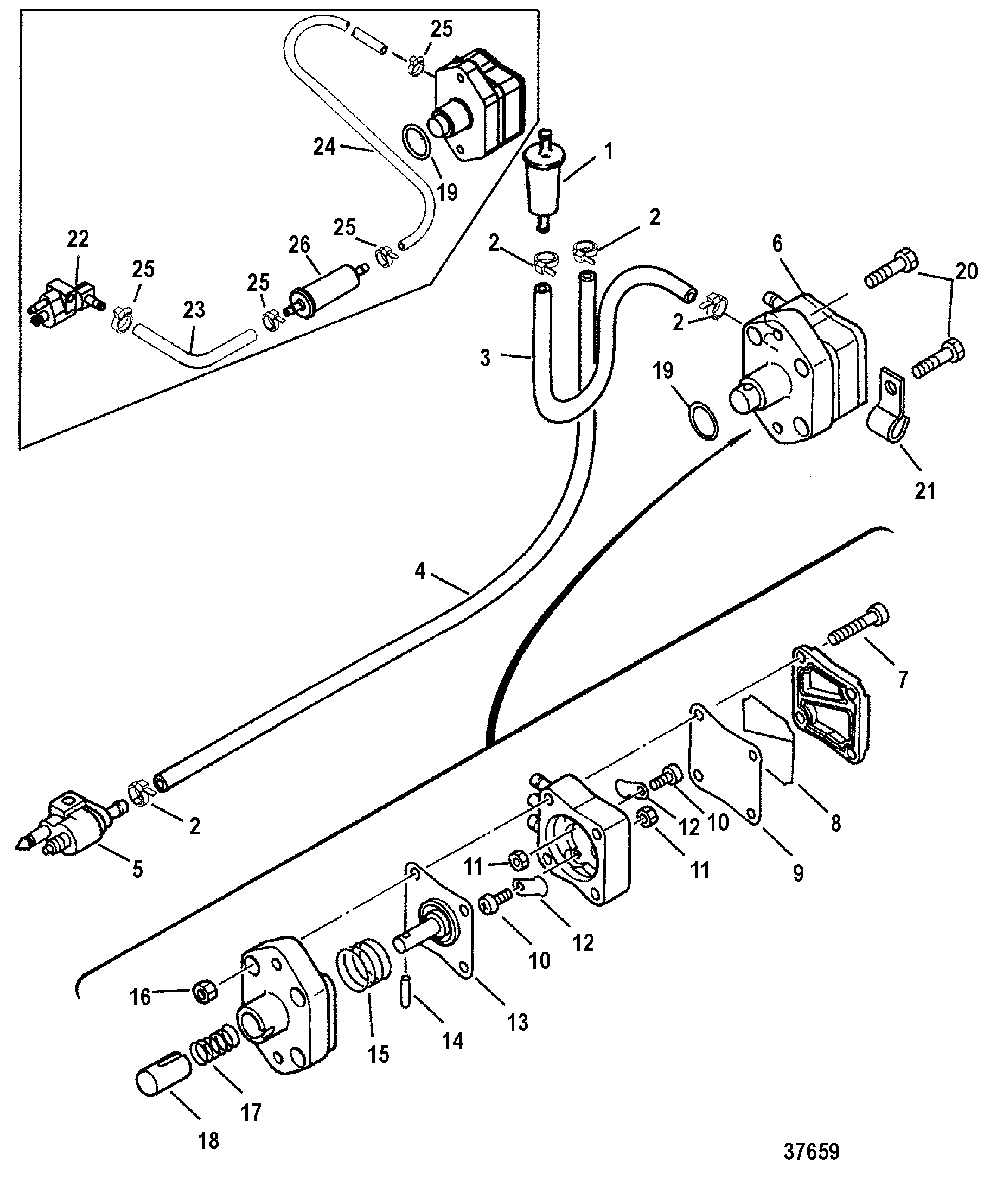

FUEL PUMP для Mercury - 50 BIGFOOT (4-STROKE) 9944807 THRU 0P016999

№

Артикул

Название
1

35-816296Q2 FILTER, Fuel
SN# 0G589999 & Below

FILTER, Fuel
SN# 0G589999 & Below
2

54-816311T TIE STRAP, (8.00 Inches)
SN# 0G589999 & Below

TIE STRAP, (8.00 Inches)
SN# 0G589999 & Below
3

32-8M0108355 HOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G589999 & Below

HOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G589999 & Below
4

32-8M0108349 TUBING, (28.00 Inches Bulk)
SN# 0G589999 & Below

TUBING, (28.00 Inches Bulk)
SN# 0G589999 & Below
5

22-816856Q3 CONNECTOR ASSEMBLY, Fuel - Plastic
SN# 0G589999 & Below

CONNECTOR ASSEMBLY, Fuel - Plastic
SN# 0G589999 & Below
-

25-16524 O-RING, Fuel Connector
SN# 0G589999 & Below

O-RING, Fuel Connector
SN# 0G589999 & Below
6

826398T3 PUMP ASSEMBLY, Fuel

PUMP ASSEMBLY, Fuel
7

10-809564 SCREW, (M5 x 35)

SCREW, (M5 x 35)
8

809565 COVER

COVER
9

8095611 DIAPHRAGM

DIAPHRAGM
10

10-41889M SCREW, (M3 x 5)

SCREW, (M3 x 5)
11

11-82537M NUT

NUT
12

21-41888M CHECK VALVE

CHECK VALVE
13

8095612 DIAPHRAGM

DIAPHRAGM
14

17-8095661 PIN

PIN
15

24-809562 SPRING

SPRING
16

11-82388M NUT, (M5)

NUT, (M5)
17

24-8095621 SPRING

SPRING
18

8095631 PLUNGER

PLUNGER
19

25-8M0052669 O-RING

O-RING
20

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)
21

54-55098 J CLIP

J CLIP
22

22-816856A4 CONNECTOR ASSEMBLY, Fuel
SN# 0G590000 & Up

CONNECTOR ASSEMBLY, Fuel
SN# 0G590000 & Up
-

25-16524 O-RING, Fuel Connector
SN# 0G590000 & Up

O-RING, Fuel Connector
SN# 0G590000 & Up
23

32-8M0108355 HOSE, (57.00 Inches Bulk) (19 IN.)
SN# 0G590000 & Up

HOSE, (57.00 Inches Bulk) (19 IN.)
SN# 0G590000 & Up
24

32-8M0108355 HOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G590000 & Up

HOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G590000 & Up
25

54-816311T TIE STRAP, (8.00 Inches)
SN# 0G590000 & Up

TIE STRAP, (8.00 Inches)
SN# 0G590000 & Up
26

35-816296Q03 FILTER, Fuel
SN# 0G590000 & Up

FILTER, Fuel
SN# 0G590000 & Up
-

27-832013A96 GASKET SET

GASKET SET
