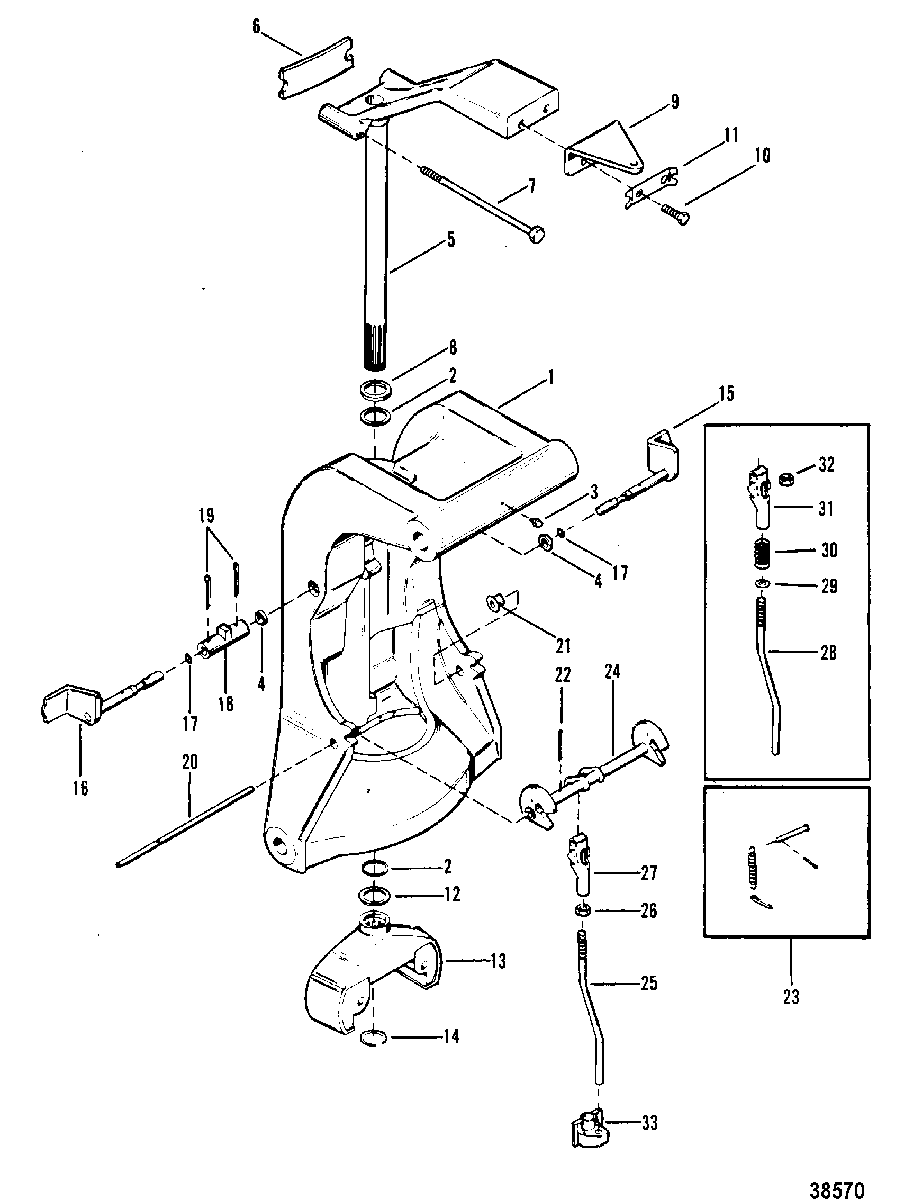

SWIVEL BRACKET AND REVERSE LOCK для Mercury - 50 (4 CYL.) 9248006 & Up
-
№АртикулНазвание
-
11489-8597A4 SWIVEL BRACKET (SHORT SHAFT)SWIVEL BRACKET (SHORT SHAFT)
-
11490-8599A6 SWIVEL BRACKET (LONG SHAFT)SWIVEL BRACKET (LONG SHAFT)
-
226-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
322-74036 FITTING, GreaseFITTING, Grease
-
426-22734 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
588798A23 SWIVEL PIN ASSEMBLY (SHORT SHAFT) - MANUALSWIVEL PIN ASSEMBLY (SHORT SHAFT) - MANUAL
-
588798A24 SWIVEL PIN ASSEMBLY (LONG SHAFT) - MANUALSWIVEL PIN ASSEMBLY (LONG SHAFT) - MANUAL
-
569540A3 SWIVEL PIN ASSEMBLY (SHORT SHAFT) - ELECTRICSWIVEL PIN ASSEMBLY (SHORT SHAFT) - ELECTRIC
-
569540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT ) - ELECTRICSWIVEL PIN ASSEMBLY (LONG SHAFT ) - ELECTRIC
-
630711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
710-66897 BOLT, (.437-20 x 5.250)BOLT, (.437-20 x 5.250)
-
812-47606 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
976535T BRACKET, RIDE-GUIDE
MANUAL W/O TILLER HANDLEBRACKET, RIDE-GUIDE
MANUAL W/O TILLER HANDLE -
1010-34352 SCREW, (.375-24 x .875)
MANUAL W/O TILLER HANDLESCREW, (.375-24 x .875)
MANUAL W/O TILLER HANDLE -
1176533 STRAP, BRACKET SCREW
MANUAL W/O TILLER HANDLESTRAP, BRACKET SCREW
MANUAL W/O TILLER HANDLE -
1212-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
1377416T1 YOKE, BottomYOKE, Bottom
-
1453-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
1576386 TILT LOCK ASSEMBLY, STARBOARD
SN# USA-6275322/Bel-9371690/Can-7201337 & BelowTILT LOCK ASSEMBLY, STARBOARD
SN# USA-6275322/Bel-9371690/Can-7201337 & Below -
1676385T TILT LOCK ASSEMBLY, PORT
SN# USA-6275322/Bel-9371690/Can-7201337 & BelowTILT LOCK ASSEMBLY, PORT
SN# USA-6275322/Bel-9371690/Can-7201337 & Below -
15/1689105 TILT LOCK, STARBOARD/PORT
SN# USA-6275323/Bel-9371691/Can-7201338 & UpTILT LOCK, STARBOARD/PORT
SN# USA-6275323/Bel-9371691/Can-7201338 & Up -
15/1699431A1 TILT LOCK (ELECTRIC TILLER HANDLE MODELS)TILT LOCK (ELECTRIC TILLER HANDLE MODELS)
-
1725-627021 O-RING, (.301 x .070), TILT LOCKO-RING, (.301 x .070), TILT LOCK
-
1879659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1918-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
2056349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
2123-69132 BUSHING, RVERSE PIVOT SHAFTBUSHING, RVERSE PIVOT SHAFT
-
2218-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
2324-78203A2 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
2487432 LOCK ASSEMBLY, Reverse
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowLOCK ASSEMBLY, Reverse
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2414664A3 LOCK ASSEMBLY, Reverse
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpLOCK ASSEMBLY, Reverse
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2547835 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowPUSH ROD, REVERSE LOCK (SHORT SHAFT)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2547836 PUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowPUSH ROD, REVERSE LOCK (LONG SHAFT)
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2543415A2 PUSH ROD ASSEMBLY, REVERSE LOCK (SHORT SHAFT)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpPUSH ROD ASSEMBLY, REVERSE LOCK (SHORT SHAFT)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2543416A2 PUSH ROD ASSEMBLY, REVERSE LOCK (LONG SHAFT)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpPUSH ROD ASSEMBLY, REVERSE LOCK (LONG SHAFT)
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2611-28770 NUT, (.312-24) Stainless Steel, PUSH ROD
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowNUT, (.312-24) Stainless Steel, PUSH ROD
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2611-28770 NUT, (.312-24) Stainless Steel, PUSH ROD
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpNUT, (.312-24) Stainless Steel, PUSH ROD
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2747837 ROD END, PUSH ROD
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & BelowROD END, PUSH ROD
SN# USA-5796395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
2789813 ROD END, PUSH ROD
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & UpROD END, PUSH ROD
SN# USA-5796396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2843415 PUSH ROD, REVERSE LOCK (SHORT SHAFT)
LATER MODELSPUSH ROD, REVERSE LOCK (SHORT SHAFT)
LATER MODELS -
2843416 PUSH ROD, REVERSE LOCK (LONG SHAFT)
LATER MODELSPUSH ROD, REVERSE LOCK (LONG SHAFT)
LATER MODELS -
2912-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - LATER MODELSWASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - LATER MODELS
-
3024-44297 SPRING, PUSH ROD - LATER MODELSSPRING, PUSH ROD - LATER MODELS
-
3189813 ROD END, PUSH ROD - LATER MODELSROD END, PUSH ROD - LATER MODELS
-
3211-82670911 NUT, (.312-24) Stainless Steel, PUSH ROD - LATER MODELSNUT, (.312-24) Stainless Steel, PUSH ROD - LATER MODELS
-
33933361 GUIDE, PUSH RODGUIDE, PUSH ROD
-
-27-72486A32 GASKET SETGASKET SET
