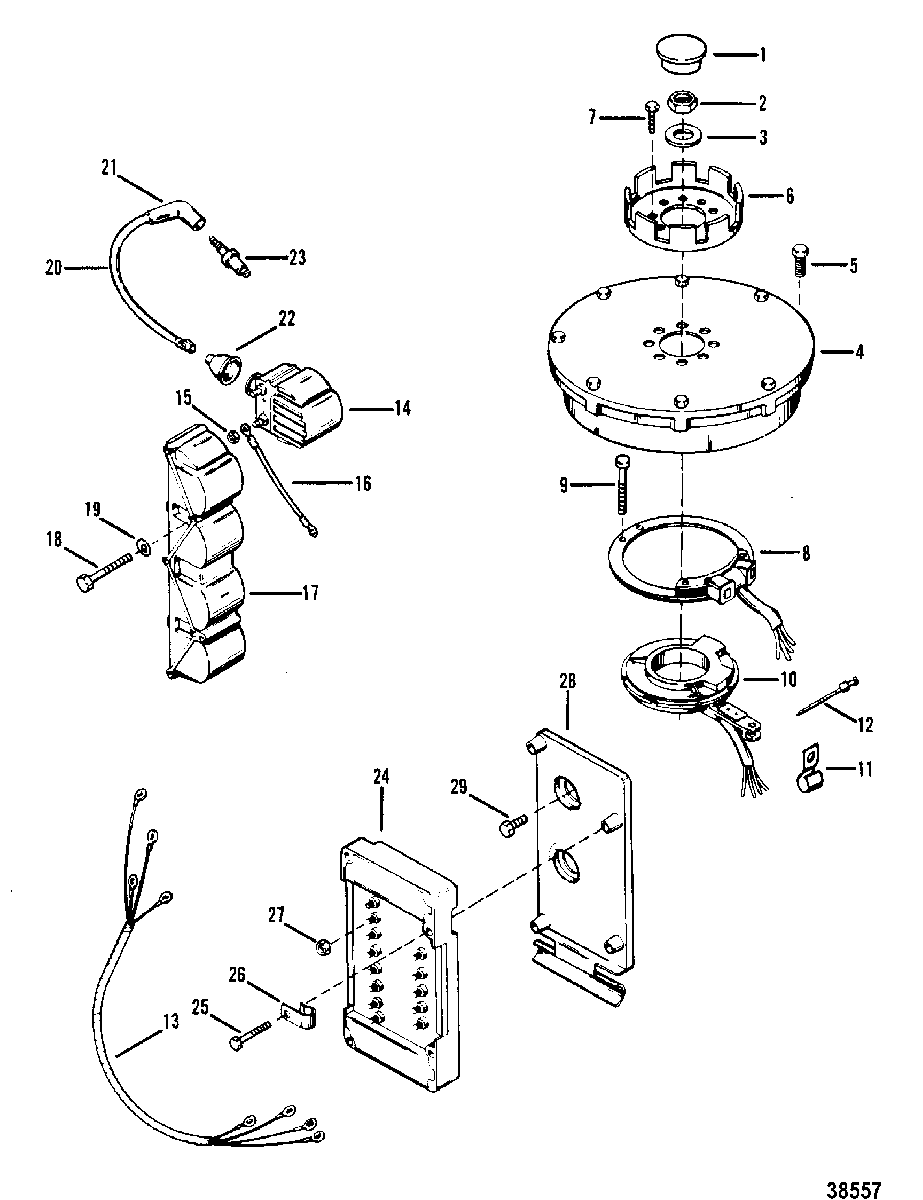

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 50 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FLYWHEELPLUG, Yellow, FLYWHEEL
-
211-22339 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
4248-8722A16 FLYWHEEL ASSEMBLY
(MANUAL) SN# USA-6275322/Bel-9371690/Can-7201337 & BelowFLYWHEEL ASSEMBLY
(MANUAL) SN# USA-6275322/Bel-9371690/Can-7201337 & Below -
4248-8722A17 FLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-6275322/Bel-9371690/Can-7201337 & BelowFLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-6275322/Bel-9371690/Can-7201337 & Below -
4248-8722A16 FLYWHEEL ASSEMBLY
(MANUAL) SN# USA-6275323/Bel-9371691/Can-7201338 & UpFLYWHEEL ASSEMBLY
(MANUAL) SN# USA-6275323/Bel-9371691/Can-7201338 & Up -
4248-8722A17 FLYWHEEL ASSMEBLY
(ELECTRIC) SN# USA-6275323/Bel-9371691/Can-7201338 & UpFLYWHEEL ASSMEBLY
(ELECTRIC) SN# USA-6275323/Bel-9371691/Can-7201338 & Up -
510-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
650-88755 RATCHET, MANUALRATCHET, MANUAL
-
710-68997 SCREW, (.312-24 x .750), MANUALSCREW, (.312-24 x .750), MANUAL
-
876314A3 STATOR
(MANUAL)STATOR
(MANUAL) -
8398-832075A20 STATOR
(ELECTRIC)STATOR
(ELECTRIC) -
910-75840 SCREW, (#10-24 x .880)SCREW, (#10-24 x .880)
-
910-F2211 SCREW (5/8")SCREW (5/8")
-
1096452A4 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1154-61001 J CLIP, TRIGGER LADS TO CARBURETOR STUDJ CLIP, TRIGGER LADS TO CARBURETOR STUD
-
1261990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
1384-88721A1 HARNESS ASSEMBLY, SWITCH BOX TO IGNITION COILHARNESS ASSEMBLY, SWITCH BOX TO IGNITION COIL
-
14339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1684-60466A19 CABLE ASSEMBLY, COIL TO SWITCH BOXCABLE ASSEMBLY, COIL TO SWITCH BOX
-
1787554 COVER, IGNITION COILCOVER, IGNITION COIL
-
1810-76502 SCREW, (.190-32 x 1.880)
SN# USA-576395/Aus-8069214/Bel-9291995/Can-7165752 & BelowSCREW, (.190-32 x 1.880)
SN# USA-576395/Aus-8069214/Bel-9291995/Can-7165752 & Below -
1810-88856 SCREW, (.190-32 x 2.00)
SN# USA-576396/Aus-8069215/Bel-9291996/Can-7165753 & UpSCREW, (.190-32 x 2.00)
SN# USA-576396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
1912-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-576396/Aus-8069215/Bel-9291996/Can-7165753 & UpWASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-576396/Aus-8069215/Bel-9291996/Can-7165753 & Up -
2084-813715A1 LEAD ASSEMBLY, SPARK PLUGLEAD ASSEMBLY, SPARK PLUG
-
2185-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
22332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
2333-97182Q SPARK PLUG (NGK #BUHW-2)SPARK PLUG (NGK #BUHW-2)
-
2333-14103Q SPARK PLUG
(Belgium/CanadaSPARK PLUG
(Belgium/Canada -
24332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
2510-20619 SCREW, (#12-24 x 1.25)SCREW, (#12-24 x 1.25)
-
2654-642351 J CLIP, SWITCH BOX LEADSJ CLIP, SWITCH BOX LEADS
-
2711-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALSNUT, (#10-32) Brass, SWITCH BOX TERMINALS
-
2888322 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
2910-54615 SCREW, (.250-20 x .625), SWITCH BOX PLATE TO CYLINDER BLOCKSCREW, (.250-20 x .625), SWITCH BOX PLATE TO CYLINDER BLOCK
