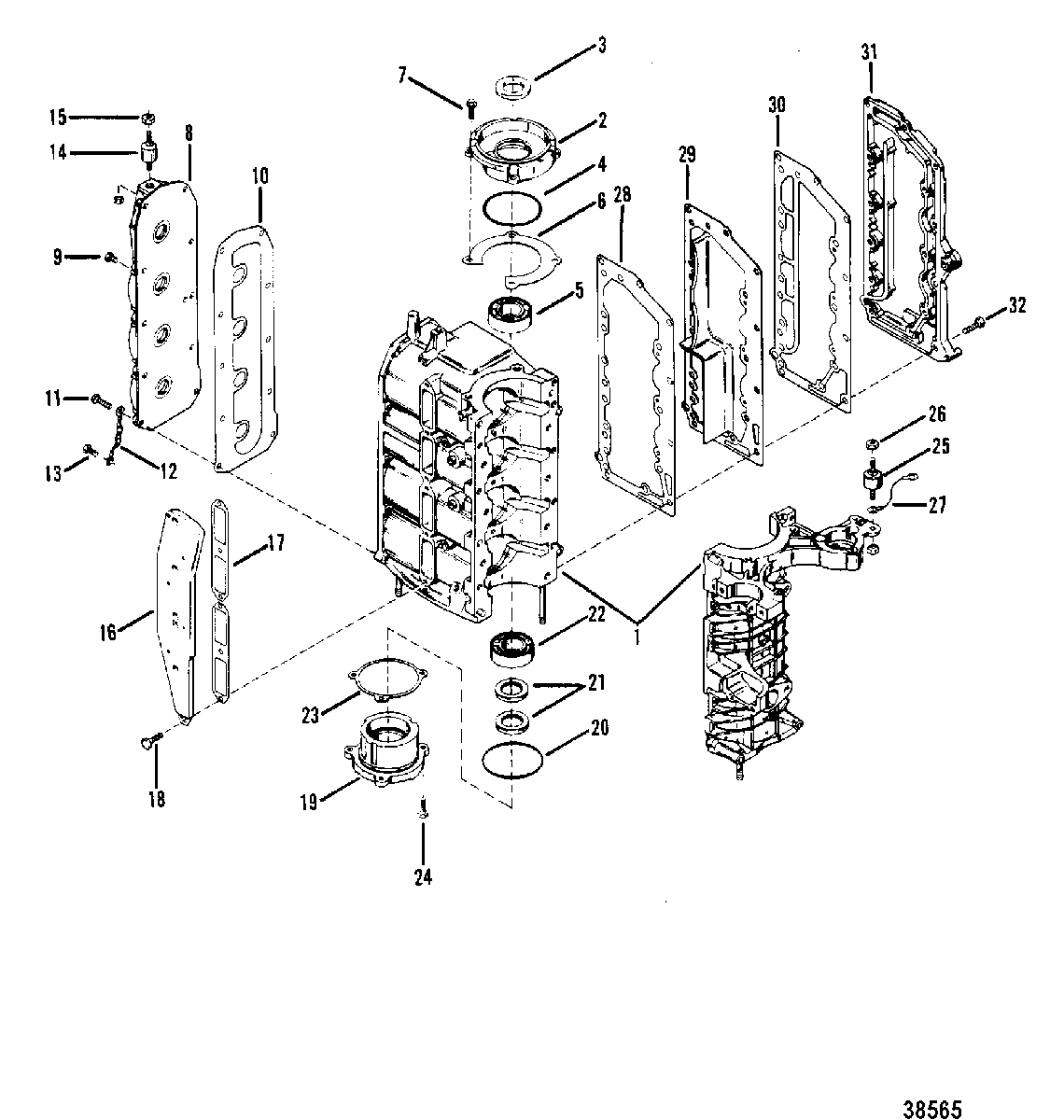

END CAPS AND EXHAUST COVER для Mercury - 50 (4 CYL.) 5531630 & Up

  • №
    Артикул
    Название
  • 1
    863-8981A6 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    1160-5826A2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 SEAL, UPPER END CAP
    SEAL, UPPER END CAP
  • 4
    25-20081 O-RING, UPPER END CAP
    O-RING, UPPER END CAP
  • 5
    30-63742T BEARING, Ball, UPPER END CAP
    BEARING, Ball, UPPER END CAP
  • 6
    15-72538A1 SHIM, UPPER END CAP (.005-10)
    SHIM, UPPER END CAP (.005-10)
  • 7
    10-824941 SCREW, UPPER END CAP (3/4")
    SCREW, UPPER END CAP (3/4")
  • 8
    1017-7054A1 COVER ASSEMBLY, CYLINDER BLOCK
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
    COVER ASSEMBLY, CYLINDER BLOCK
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
  • 8
    1017-8360A1 COVER ASSEMBLY, CYLINDER BLOCK
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
    COVER ASSEMBLY, CYLINDER BLOCK
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
  • 9
    22-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK COVER
    PLUG, Pipe (.125-27), CYLINDER BLOCK COVER
  • 10
    27-85487 GASKET, CYLINDER BLOCK COVER
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
    GASKET, CYLINDER BLOCK COVER
    SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below
  • 10
    27-437772 GASKET, CYLINDER BLOCK COVER
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
    GASKET, CYLINDER BLOCK COVER
    SN# USA-6146849/Bel-9362391/Can-7198593 & Up
  • 11
    10-76630 SCREW, CYLINDER BLOCK COVER (1")
    SCREW, CYLINDER BLOCK COVER (1")
  • 12
    88238A10 CABLE ASSEMBLY, Ground (3-5/8")
    CABLE ASSEMBLY, Ground (3-5/8")
  • 13
    10-62568 SCREW, (#10-16 x .375), GROUND STRAP
    SCREW, (#10-16 x .375), GROUND STRAP
  • 14
    90435 MOUNT, RUBBER - CYLINDER BLOCK COVER
    MOUNT, RUBBER - CYLINDER BLOCK COVER
  • 15
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 16
    18827A1 COVER ASSEMBLY, TRANSFER PORT
    COVER ASSEMBLY, TRANSFER PORT
  • 17
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 18
    10-20540 SCREW, (.250-20 x .62), TRANSFER PORT COVER
    SCREW, (.250-20 x .62), TRANSFER PORT COVER
  • 19
    1158-6635T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 20
    25-20081 O-RING, LOWER END CAP
    O-RING, LOWER END CAP
  • 21
    26-41953 SEAL, LOWER END CAP
    SEAL, LOWER END CAP
  • 22
    30-63742T BEARING, Ball
    BEARING, Ball
  • 23
    15-20085A1 SHIM SET, LOWER END CAP(.005-10)
    SHIM SET, LOWER END CAP(.005-10)
  • 24
    10-29256 SCREW, (.312-18 x .875), LOWER END CAP
    SCREW, (.312-18 x .875), LOWER END CAP
  • 25
    90435 MOUNT, RUBBER - CRANKCASE
    MOUNT, RUBBER - CRANKCASE
  • 26
    11-20184 NUT, (1/4-28X7/32), RUBBER MOUNT
    NUT, (1/4-28X7/32), RUBBER MOUNT
  • 27
    84-65773A5 STRAP ASSEMBLY, Ground, CRANKCASE MOUNT
    STRAP ASSEMBLY, Ground, CRANKCASE MOUNT
  • 28
    27-854913 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 29
    90421T01 PLATE, BAFFLE-EXHAUST MANIFOLD
    PLATE, BAFFLE-EXHAUST MANIFOLD
  • 30
    27-854924 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 31
    77381 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 32
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel
    SCREW, (.312-18 x 1.00) Stainless Steel
  • 32
    10-38837 SCREW, (.312-18 x 1.12)
    SCREW, (.312-18 x 1.12)
  • -
    27-72486A32 GASKET SET
    GASKET SET
