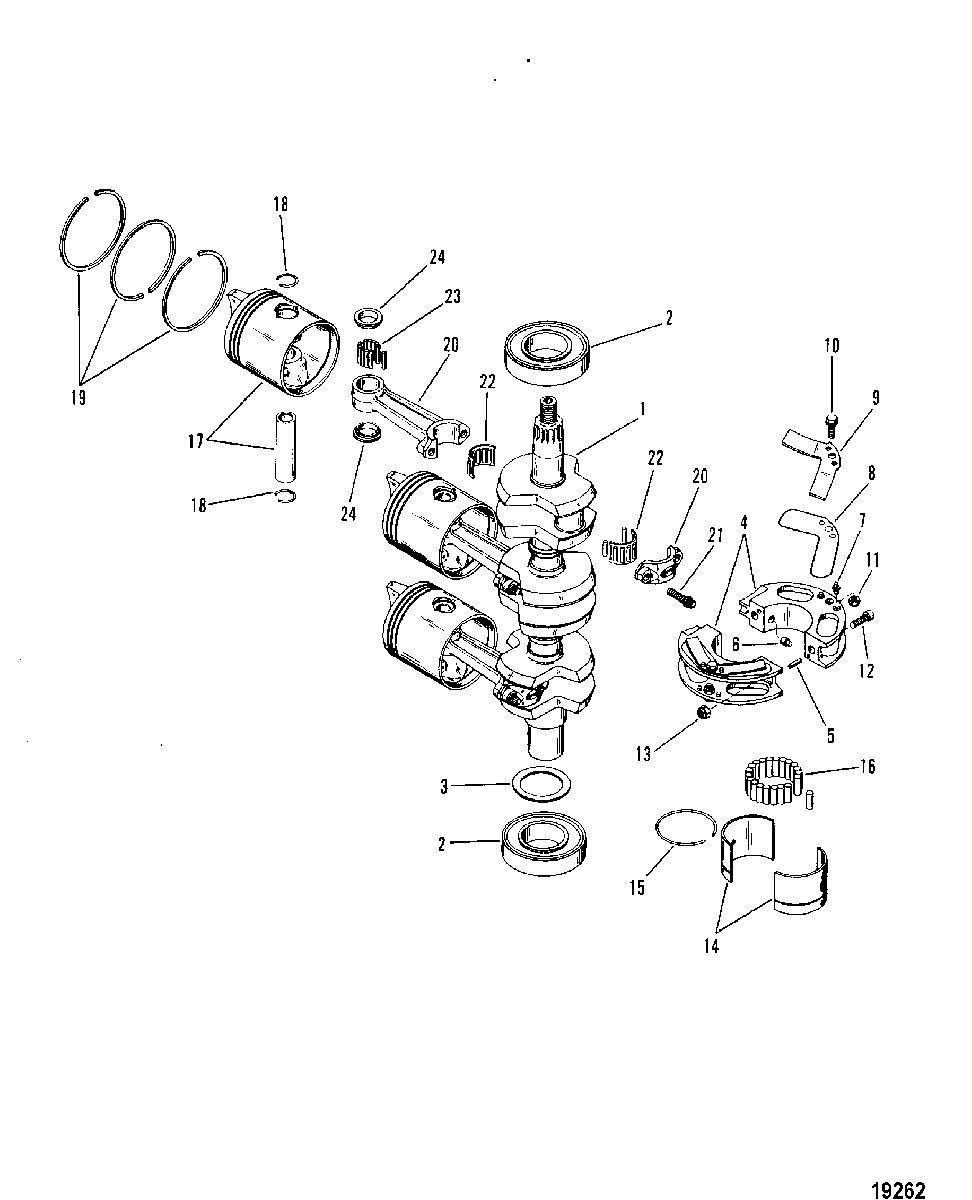

Crankshaft, Pistons and Connecting Rods для Mercury - 50 (3 CYL.) 9469200 THRU 9683054

  • №
    Артикул
    Название
  • 1
    462-8839A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-64424T BEARING, BALL - LOWER AND UPPER
    BEARING, BALL - LOWER AND UPPER
  • 3
    15-22369A1 SHIM SET, LOWER BEARING TO CRANKSHAFT
    SHIM SET, LOWER BEARING TO CRANKSHAFT
  • 4
    542-7509A3 BEARING ASSEMBLY, Main (VALVE TYPE)
    BEARING ASSEMBLY, Main (VALVE TYPE)
  • 5
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 6
    17-60282 PIN, Dowel (STEPPED)
    PIN, Dowel (STEPPED)
  • 7
    17-65855 PIN, Dowel, REED STOP
    PIN, Dowel, REED STOP
  • 8
    34-66051A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 9
    34-65946 STOP, Reed
    STOP, Reed
  • 10
    10-77280 SCREW, (.190-32 x .560), REED STOP MOUNTING
    SCREW, (.190-32 x .560), REED STOP MOUNTING
  • 11
    11-20110 NUT, (#10-32), REED STOP MOUNTING SCREW
    NUT, (#10-32), REED STOP MOUNTING SCREW
  • 12
    10-38055 SCREW, (.190-32 x .620), MAIN BEARING CLAMPING
    SCREW, (.190-32 x .620), MAIN BEARING CLAMPING
  • 13
    11-20110 NUT, (#10-32), MAIN BEARING SCREW CLAMPING
    NUT, (#10-32), MAIN BEARING SCREW CLAMPING
  • 14
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 15
    53-26933 RING, Snap, SNAP - OUTER RACE CLAMPING
    RING, Snap, SNAP - OUTER RACE CLAMPING
  • 16
    29-714221 BEARING, Needle
    BEARING, Needle
  • 17
    774-9137A9 PISTON ASSEMBLY
    (Standard)(50)
    PISTON ASSEMBLY
    (Standard)(50)
  • 17
    774-9137A10 PISTON ASSEMBLY
    (.015 Oversize)(50)
    PISTON ASSEMBLY
    (.015 Oversize)(50)
  • 17
    774-9137A11 PISTON ASSEMBLY
    (.030 Oversize)(50)
    PISTON ASSEMBLY
    (.030 Oversize)(50)
  • 17
    774-9137A12 PISTON ASSEMBLY
    (Standard)(60)
    PISTON ASSEMBLY
    (Standard)(60)
  • 17
    774-9137A13 PISTON ASSEMBLY
    (.015 Oversize)(60)
    PISTON ASSEMBLY
    (.015 Oversize)(60)
  • 17
    774-9137A14 PISTON ASSEMBLY
    (.030 Oversize)(60)
    PISTON ASSEMBLY
    (.030 Oversize)(60)
  • 18
    53-857196 RING, Lock, PISTON PIN
    RING, Lock, PISTON PIN
  • 19
    39-78816A12 RING, PISTON
    (STANDARD)
    RING, PISTON
    (STANDARD)
  • 19
    39-78811A12 RING SET, Piston - .015 Oversize, PISTON
    (.015 Oversize)
    RING SET, Piston - .015 Oversize, PISTON
    (.015 Oversize)
  • 19
    39-88392A12 RING SET, Piston - .030 Oversize
    (.030 Oversize)
    RING SET, Piston - .030 Oversize
    (.030 Oversize)
  • 20
    624-8101A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 21
    10-91012 SCREW, (.250-28 Special), CAP TO CONNECTING ROD - W/O NUT
    SCREW, (.250-28 Special), CAP TO CONNECTING ROD - W/O NUT
  • 22
    31-62596A1 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 23
    29-47270 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 24
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
