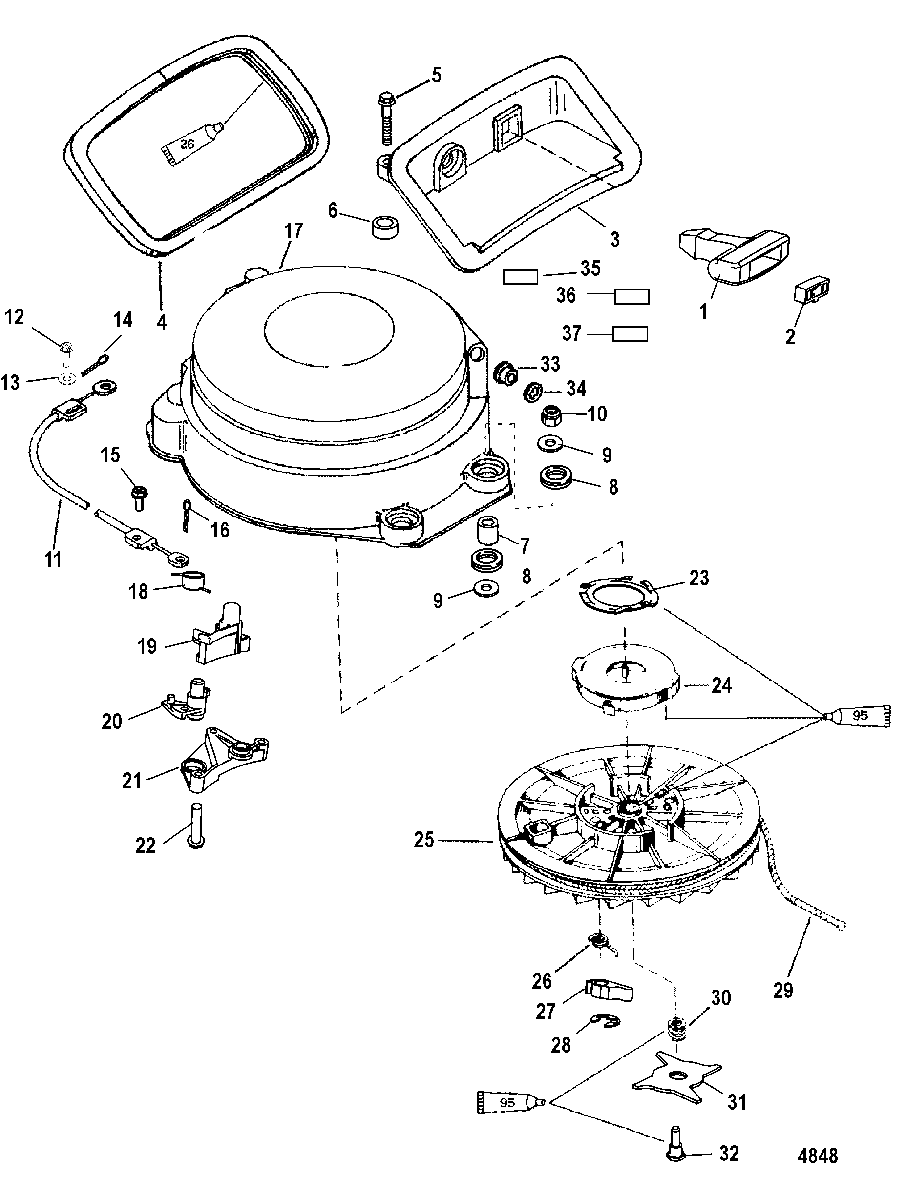

Starter Assembly(Manual) для Mercury - 50 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
185174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
-821788A6 REST ASSEMBLY, Starter HandleREST ASSEMBLY, Starter Handle
-
3NSS NOT SOLD SEPARATE, RestNOT SOLD SEPARATE, Rest
-
48M0043416 SEALSEAL
-
510-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
623-830190 SPACERSPACER
-
723-816086 BUSHINGBUSHING
-
825-8157951 GROMMETGROMMET
-
912-858779 WASHER, (.265 x .750 x .048)WASHER, (.265 x .750 x .048)
-
1011-401196 NUT, (M6)NUT, (M6)
-
118567541 CABLE, InterlockCABLE, Interlock
-
1210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1312-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
1418-26811 COTTER PINCOTTER PIN
-
1510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1618-26811 COTTER PINCOTTER PIN
-
-816728T14 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
17816728T05 HOUSINGHOUSING
-
1824-826791 SPRINGSPRING
-
198166903 LEVERLEVER
-
20816712T01 CAMCAM
-
21816711 RETAINERRETAINER
-
2210-8182491 SCREW, (#10-16 x 1.00)SCREW, (#10-16 x 1.00)
-
2313-826229 LOCKWASHER, SPRINGLOCKWASHER, SPRING
-
2424-86857T01 SPRINGSPRING
-
2550-825269T01 SHEAVE, StarterSHEAVE, Starter
-
2624-86851T02 SPRINGSPRING
-
27868501 CAMCAM
-
2853-86849T01 RING, RetainingRING, Retaining
-
2950-12066Q10 ROPEROPE
-
3024-868523 SPRINGSPRING
-
3186853T01 CAMCAM
-
3210-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
3342690 BUSHINGBUSHING
-
3453-818853 RING, RetainingRING, Retaining
-
35NSS NOT SOLD SEPARATE, Timing DecalNOT SOLD SEPARATE, Timing Decal
-
36NSS NOT SOLD SEPARATE, Decal-Caution in Gear IdleNOT SOLD SEPARATE, Decal-Caution in Gear Idle
-
3737-804665A05 DECAL, EPA Label Information (2005)DECAL, EPA Label Information (2005)
-
3737-804665A06 DECAL, EPA Label Information (2006)DECAL, EPA Label Information (2006)
-
3737-804665A07 DECAL, EPA Label Information (2007)DECAL, EPA Label Information (2007)
-
3737-804665A08 DECAL, EPA Label Information (2008)DECAL, EPA Label Information (2008)
-
37NSS NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)NOT SOLD SEPARATE, DECAL, EPA (2009 & Up)
(Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)
