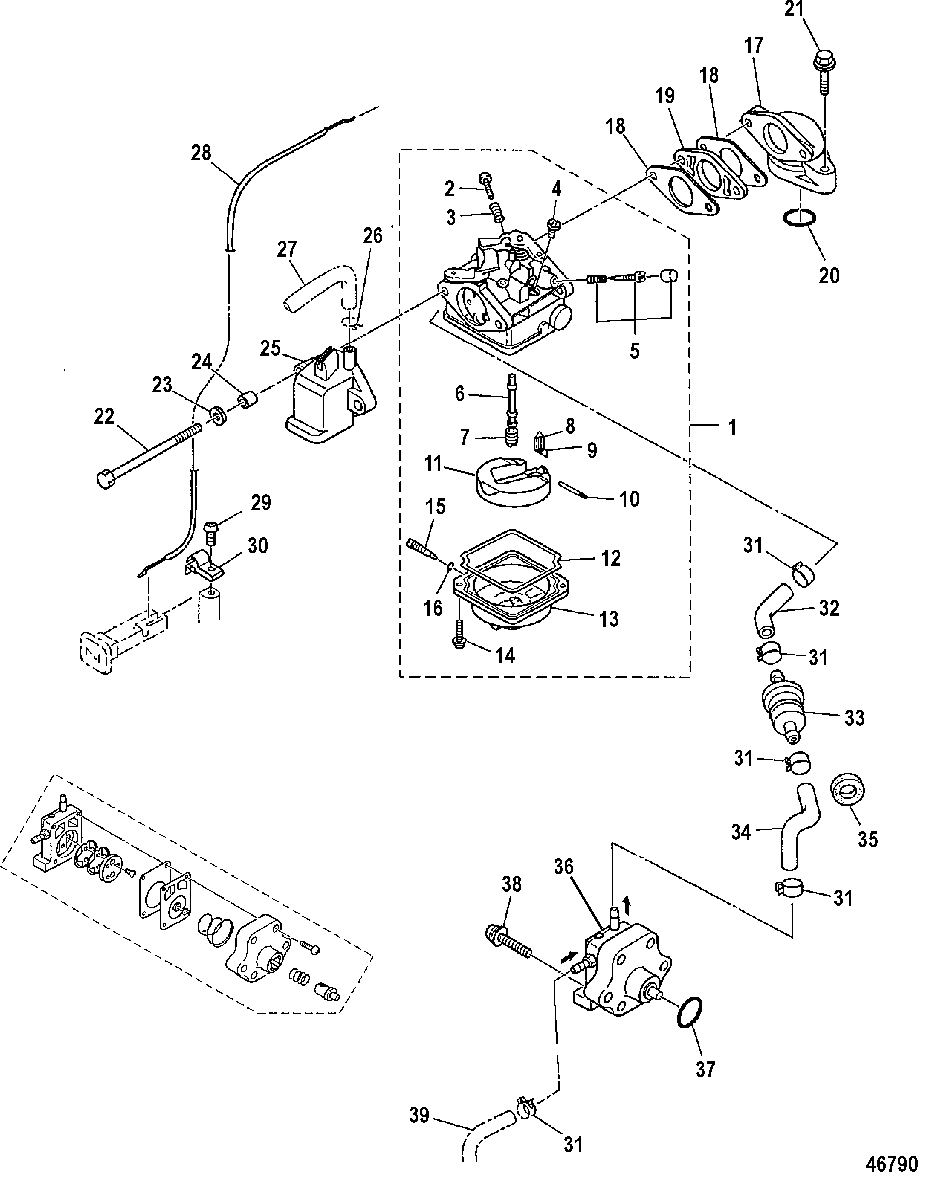

Carburetor and Fuel System для Mercury - 5 (4-STROKE) 0R411838 & Up
-
№АртикулНазвание
-
13303-8M0053670 CARBURETOR, 4 HorsepowerCARBURETOR, 4 Horsepower
-
13303-8M0053669 CARBURETOR, 5 HorsepowerCARBURETOR, 5 Horsepower
-
13303-8M0053668 CARBURETOR, 6 HorsepowerCARBURETOR, 6 Horsepower
-
210-8035095 SCREWSCREW
-
324-803554 SPRINGSPRING
-
48035243 JET, Pilot (#38), 4 HorsepowerJET, Pilot (#38), 4 Horsepower
-
58M0056327 SCREW ASSEMBLY, Pilot, 4 HorsepowerSCREW ASSEMBLY, Pilot, 4 Horsepower
-
510-803509019 SCREW ASSEMBLY, Pilot, 5/6 HorsepowerSCREW ASSEMBLY, Pilot, 5/6 Horsepower
-
68M0056322 MAIN NOZZLE, 4 HorsepowerMAIN NOZZLE, 4 Horsepower
-
68M0056323 MAIN NOZZLE, 5 HorsepowerMAIN NOZZLE, 5 Horsepower
-
68M0056324 MAIN NOZZLE, 6 HorsepowerMAIN NOZZLE, 6 Horsepower
-
78M0056325 JET, Main (#62), 4 HorsepowerJET, Main (#62), 4 Horsepower
-
716250011 JET, Main (#68), 5 HorsepowerJET, Main (#68), 5 Horsepower
-
78M0056326 JET, Main (#70), 6 HorsepowerJET, Main (#70), 6 Horsepower
-
8162543 FLOAT VALVE, BrassFLOAT VALVE, Brass
-
954-803525 CLIP, Stainless SteelCLIP, Stainless Steel
-
1017-162562 PIN, Float - Stainless SteelPIN, Float - Stainless Steel
-
11162533 FLOATFLOAT
-
1227-8035084 GASKET, RubberGASKET, Rubber
-
1316258T5 FLOAT BOWLFLOAT BOWL
-
1410-16260 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
1510-8035093 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
1625-8035131 O-RING, RubberO-RING, Rubber
-
17803530 MANIFOLD, InletMANIFOLD, Inlet
-
1827-803508013 GASKETGASKET
-
1927-80350810 GASKET, InsulatorGASKET, Insulator
-
2025-8035133 O-RINGO-RING
-
2110-8150684 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
2210-855809003 BOLTBOLT
-
2312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2423-952868 COLLARCOLLAR
-
258M0056336 SILENCERSILENCER
-
2654-952245 CLAMPCLAMP
-
2732-952235 TUBINGTUBING
-
288M0056329 CHOKE WIRECHOKE WIRE
-
2910-823042067 SCREWSCREW
-
3012-8M0056330 CLIPCLIP
-
3154-8M0129429 CLIPCLIP
-
3232-8M0056331 HOSEHOSE
-
3335-16248 FILTER, FuelFILTER, Fuel
-
3432-8M0056332 HOSEHOSE
-
3512-953923 WASHER, RubberWASHER, Rubber
-
36803529T06 PUMP, FuelPUMP, Fuel
-
3725-803513 O-RINGO-RING
-
3810-855544 SCREWSCREW
-
3932-8M0069791 HOSEHOSE
-
-8M0044575 KIT, Carb repairKIT, Carb repair
