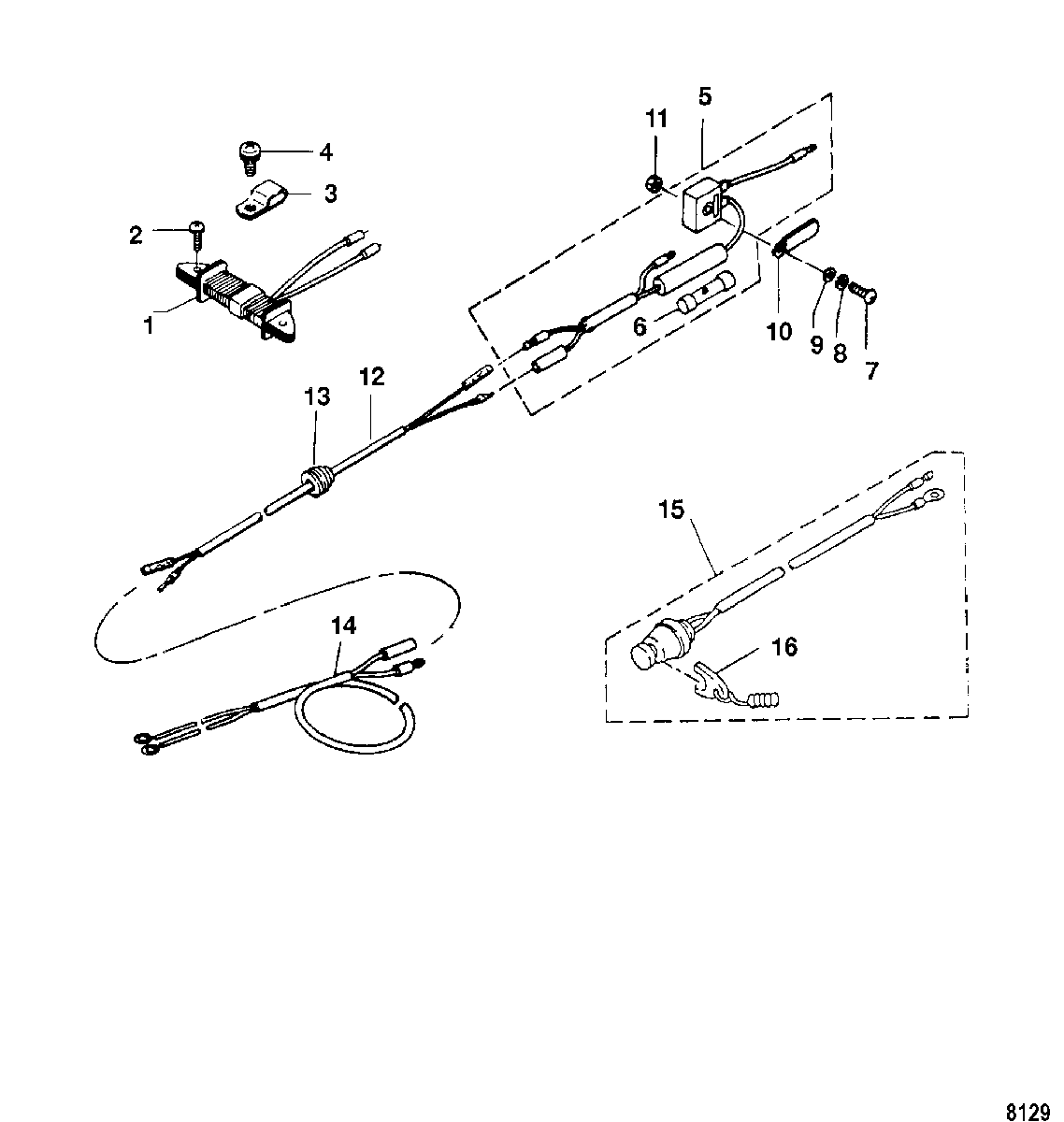

Sailpower/Sailmate Components для Mercury - 5 (4-STROKE) 0R000001 THRU 0R067089

  • №
    Артикул
    Название
  • 1
    16074T ALTERNATOR
    ALTERNATOR
  • 2
    10-16059 SCREW
    SCREW
  • 3
    54-16060 CLAMP
    CLAMP
  • 4
    10-16821 SCREW
    SCREW
  • 5
    16076A1 RECTIFIER
    (Use with 20MM Screw)
    RECTIFIER
    (Use with 20MM Screw)
  • 5
    16076A1 RECTIFIER KIT
    (Use with 25MM Screw)
    RECTIFIER KIT
    (Use with 25MM Screw)
  • 6
    89-16077 FUSE
    FUSE
  • 7
    10-16123 SCREW, (25 mm)
    (25MM)
    SCREW, (25 mm)
    (25MM)
  • 7
    10-16078 SCREW
    (20MM)
    SCREW
    (20MM)
  • 8
    13-16079 LOCKWASHER
    LOCKWASHER
  • 9
    12-8M0108373 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 10
    54-813275 CLAMP
    CLAMP
  • 11
    11-16081 NUT, Stainless Steel
    NUT, Stainless Steel
  • 12
    84-16822 HARNESS, Extension
    HARNESS, Extension
  • 13
    25-16823 GROMMET
    GROMMET
  • 14
    84-16082 CABLE, Battery
    CABLE, Battery
  • 15
    87-823037A04 SWITCH ASSEMBLY, Emergency Stop
    SN# 0R036271 & Below
    SWITCH ASSEMBLY, Emergency Stop
    SN# 0R036271 & Below
  • 15
    87-823037A04 SWITCH ASSEMBLY, Emergency Stop
    SN# 0R036272 & Up
    SWITCH ASSEMBLY, Emergency Stop
    SN# 0R036272 & Up
  • 16
    823054 LANYARD
    LANYARD
