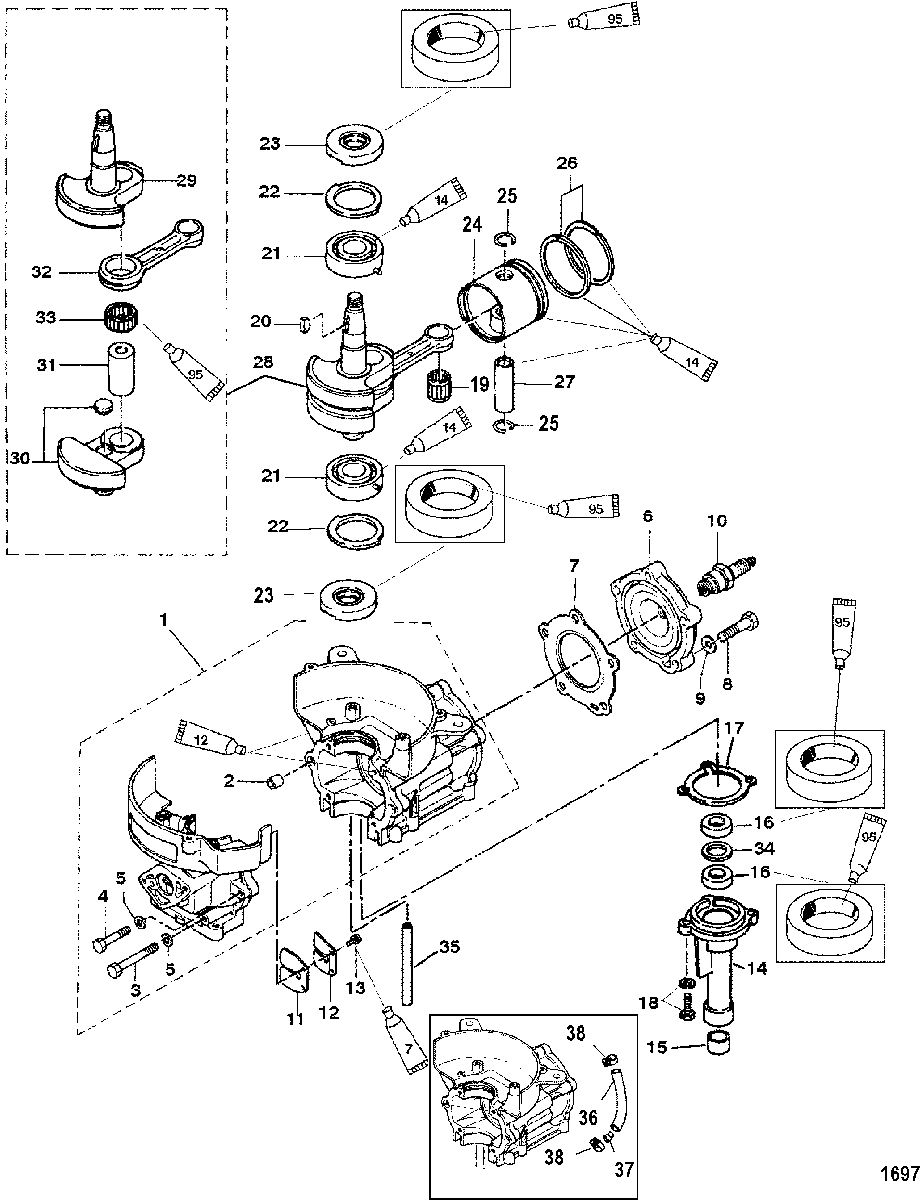

Cylinder Block/Crankshaft/Piston для Mercury - 5 (2-STROKE) 0P017000 THRU 0P400999
-
№АртикулНазвание
-
1878-815013A5 CYLINDER BLOCK
(With Re-Circulation System)CYLINDER BLOCK
(With Re-Circulation System) -
1878-815013A5 CYLINDER BLOCK
(Without Re-Circulation System)CYLINDER BLOCK
(Without Re-Circulation System) -
217-16119 PIN, DowelPIN, Dowel
-
310-16695 BOLTBOLT
-
410-815063 SCREWSCREW
-
513-16818 LOCKWASHERLOCKWASHER
-
6979-96301 CYLINDER HEADCYLINDER HEAD
-
727-812939015 GASKETGASKET
-
810-16126 BOLT
SN# 0T707898/0P267999 & BelowBOLT
SN# 0T707898/0P267999 & Below -
810-16126 BOLT
SN# 0T707899/0P268000 & UpBOLT
SN# 0T707899/0P268000 & Up -
912-4002217 WASHERWASHER
-
1033-17719547 SPARK PLUG, (NGK#BPR7HS-10)
(BPR7HS-10-With Resistance)SPARK PLUG, (NGK#BPR7HS-10)
(BPR7HS-10-With Resistance) -
1033-8M0114744 SPARK PLUG, (NGK#BP7HS-10)
(Without Resistance)SPARK PLUG, (NGK#BP7HS-10)
(Without Resistance) -
1134-16706 REED VALVEREED VALVE
-
1234-16707 STOP
(4 HP)STOP
(4 HP) -
1234-17666 STOP
(5 HP)STOP
(5 HP) -
1310-16820 SCREWSCREW
-
148150162 HOUSINGHOUSING
-
1523-815017 BUSHINGBUSHING
-
1626-8M0101649 SEAL, OilSEAL, Oil
-
1727-16704 GASKETGASKET
-
1810-167051 BOLTBOLT
-
1931-16052 BEARING, RollerBEARING, Roller
-
2028-16053 KEYKEY
-
2130-16049 BEARING, BallBEARING, Ball
-
228537122 THRUST PLATETHRUST PLATE
-
2326-16051 SEAL, OilSEAL, Oil
-
-779-8M0103755 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
-779-8M0103756 PISTON ASSEMBLY
(.5MM Oversize)PISTON ASSEMBLY
(.5MM Oversize) -
24779-8M0103755 PISTON
(Standard)PISTON
(Standard) -
24779-8M0103756 PISTON
(.5MM Oversize)PISTON
(.5MM Oversize) -
2553-16057 CLIPCLIP
-
2639-8M0080357 RING, Piston
(Standard)RING, Piston
(Standard) -
2639-8M0080356 RING, Piston
(.5MM Oversize)RING, Piston
(.5MM Oversize) -
2741-898101918 PIN, PistonPIN, Piston
-
28474-879147T15 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
29NSS NOT SOLD SEPARATE, CrankshaftNOT SOLD SEPARATE, Crankshaft
-
30NSS NOT SOLD SEPARATE, CrankshaftNOT SOLD SEPARATE, Crankshaft
-
31813046002 PIN, CrankPIN, Crank
-
32629-813047 CONNECTING RODCONNECTING ROD
-
3331-813048 BEARINGBEARING
-
3423-815018 SPACERSPACER
-
3532-823976 HOSE, Tell-TaleHOSE, Tell-Tale
-
3632-8M0057112 HOSE, Rubber (1 Meter)
(Use with Re-Circulation System)HOSE, Rubber (1 Meter)
(Use with Re-Circulation System) -
3721-42657A3 CHECK VALVE
(Use with Re-Circulation System)CHECK VALVE
(Use with Re-Circulation System) -
3854-95224 CLIP
(Use with Re-Circulation System)CLIP
(Use with Re-Circulation System) -
-16115A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-815040T05 POWERHEAD ASSEMBLY
(4 HP)(With Re-Circulation System)POWERHEAD ASSEMBLY
(4 HP)(With Re-Circulation System) -
-815040T05 POWERHEAD ASSEMBLY
(4 HP)(Without Re-Circulation System)POWERHEAD ASSEMBLY
(4 HP)(Without Re-Circulation System) -
-815042T04 POWERHEAD ASSEMBLY
(5 HP)(With Re-Circulation System)POWERHEAD ASSEMBLY
(5 HP)(With Re-Circulation System) -
-815042T04 POWERHEAD ASSEMBLY
(5 HP)(Without Re-Circulation System)POWERHEAD ASSEMBLY
(5 HP)(Without Re-Circulation System)
