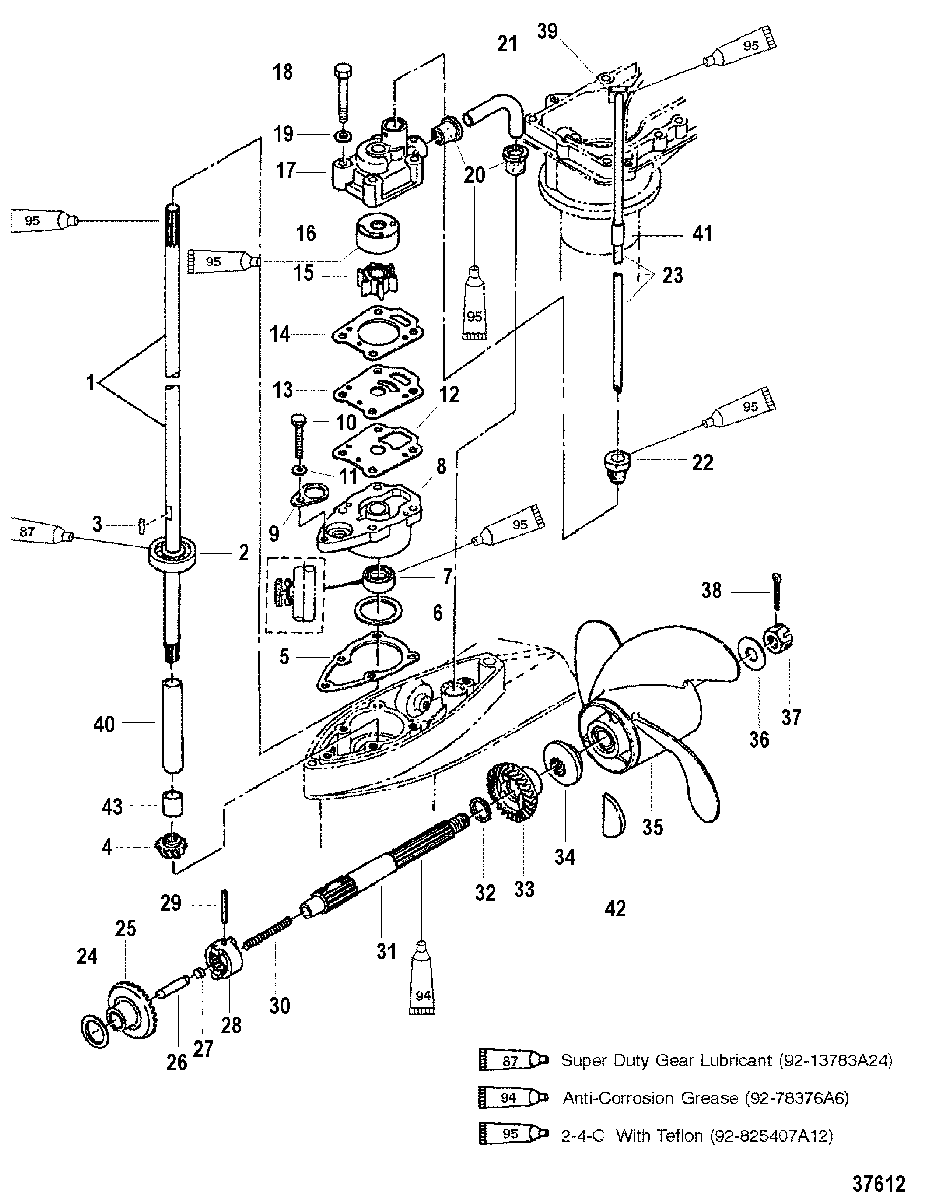

GEAR HOUSING COMPONENTS для Mercury - 4/5 9589154 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    45-8M0076367 DRIVESHAFT
    (SHORT)
    DRIVESHAFT
    (SHORT)
  • 1
    45-8M0076368 DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 2
    30-95347 BEARING
    BEARING
  • 3
    28-16155 KEY
    KEY
  • 4
    43-8M0122680 GEAR
    GEAR
  • 5
    27-16164003 GASKET
    GASKET
  • 6
    15-161631 SHIM, (0.1)
    SN# USA-0G574242/BEL-9973100 & Up
    SHIM, (0.1)
    SN# USA-0G574242/BEL-9973100 & Up
  • 6
    15-8132761 SHIM, (0.15)
    SN# USA-0G574242/BEL-9973100 & Up
    SHIM, (0.15)
    SN# USA-0G574242/BEL-9973100 & Up
  • 6
    15-161631 SHIM (0.1)
    SN# USA-0G574241/BEL-9973099 & Below
    SHIM (0.1)
    SN# USA-0G574241/BEL-9973099 & Below
  • 6
    15-8132761 SHIM (0.15)
    SN# USA-0G574241/BEL-9973099 & Below
    SHIM (0.15)
    SN# USA-0G574241/BEL-9973099 & Below
  • 7
    26-16162 SEAL, Oil
    SEAL, Oil
  • 8
    46-826053T HOUSING (LOWER)
    HOUSING (LOWER)
  • 9
    16165 RETAINER
    RETAINER
  • 10
    10-823042 BOLT
    (USE WITHOUT WASHER)
    BOLT
    (USE WITHOUT WASHER)
  • 10
    10-4000330 SCREW, (M6 x 25)
    USE WITH WASHER
    SCREW, (M6 x 25)
    USE WITH WASHER
  • 11
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 12
    27-16160004 GASKET
    GASKET
  • 13
    16159 PLATE
    PLATE
  • 14
    27-16158009 GASKET
    GASKET
  • 15
    47-161543 IMPELLER
    IMPELLER
  • 16
    16157 LINER
    LINER
  • 17
    46-16156 HOUSING, Upper Water Pump
    HOUSING, Upper Water Pump
  • 18
    10-8M0063198 BOLT
    BOLT
  • 19
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 20
    26-16168 SEAL
    SEAL
  • 21
    32-16167 HOSE
    HOSE
  • 22
    26-16171 SEAL
    SEAL
  • 23
    32-16169 TUBE, Water
    (SHORT)
    TUBE, Water
    (SHORT)
  • 23
    32-16170 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 24
    15-16141 SHIM, (0.1)
    SHIM, (0.1)
  • 24
    15-813277 SHIM, (0.15)
    SHIM, (0.15)
  • 25
    43-8M0122680 GEAR
    GEAR
  • 26
    16152 FOLLOWER, Cam
    FOLLOWER, Cam
  • 27
    16153 RETAINER
    RETAINER
  • 28
    52-812946 CLUTCH
    CLUTCH
  • 29
    17-16150 PIN, Clutch
    PIN, Clutch
  • 30
    24-17667 SPRING
    SPRING
  • 31
    44-195133 PROPELLER SHAFT
    PROPELLER SHAFT
  • 32
    12-16140 WASHER
    WASHER
  • 33
    43-8M0122680 GEAR, Reverse
    GEAR, Reverse
  • 34
    16145Q01 THRUST HOLDER
    THRUST HOLDER
  • 35
    48-812949A02 PROPELLER
    (STANDARD)
    PROPELLER
    (STANDARD)
  • 35
    48-812950A02 PROPELLER
    (8 PITCH)
    PROPELLER
    (8 PITCH)
  • 35
    48-16144A01 PROPELLER
    (6 PITCH)
    PROPELLER
    (6 PITCH)
  • 35
    48-812951A02 PROPELLER
    (6 PITCH - HI-REVERSE THRUST - SAILPOWER)
    PROPELLER
    (6 PITCH - HI-REVERSE THRUST - SAILPOWER)
  • 36
    12-16146 WASHER
    WASHER
  • 37
    11-16147 PROP NUT
    PROP NUT
  • 38
    18-815026 COTTER PIN
    COTTER PIN
  • 39
    25-18876 GROMMET
    USE WHERE APPLICABLE
    GROMMET
    USE WHERE APPLICABLE
  • 40
    23-810471 SPACER
    USE WHERE APPLICABLE
    SPACER
    USE WHERE APPLICABLE
  • 41
    810753 GUIDE
    USE WHERE APPLICABLE
    GUIDE
    USE WHERE APPLICABLE
  • 42
    NLA No Longer Available, Plate
    (ORDER REF. #34) USE WHERE APPLICABLE
    No Longer Available, Plate
    (ORDER REF. #34) USE WHERE APPLICABLE
  • 43
    23-815794 BUSHING
    USE WHERE APPLICABLE
    BUSHING
    USE WHERE APPLICABLE
  • -
    1600-8M0122306 GEAR HOUSING ASSEMBLY
    (BLACK SHORT)
    GEAR HOUSING ASSEMBLY
    (BLACK SHORT)
  • -
    1600-8M0122307 GEAR HOUSING ASSEMBLY
    (BLACK LONG)
    GEAR HOUSING ASSEMBLY
    (BLACK LONG)
  • -
    1668-825133T2 GEAR HOUSING ASSEMBLY
    (GRAY SHORT)
    GEAR HOUSING ASSEMBLY
    (GRAY SHORT)
  • -
    1668-825133A3 GEAR HOUSING ASSEMBLY
    (GRAY LONG)
    GEAR HOUSING ASSEMBLY
    (GRAY LONG)
  • -
    1600-8M0122308 GEAR HOUSING ASSEMBLY
    (SAILPOWER)
    GEAR HOUSING ASSEMBLY
    (SAILPOWER)
  • -
    1668-9621T3 GEAR HOUSING ASSEMBLY
    (SAILMATE)
    GEAR HOUSING ASSEMBLY
    (SAILMATE)
  • -
    27-8M0134073 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    16159A03 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
