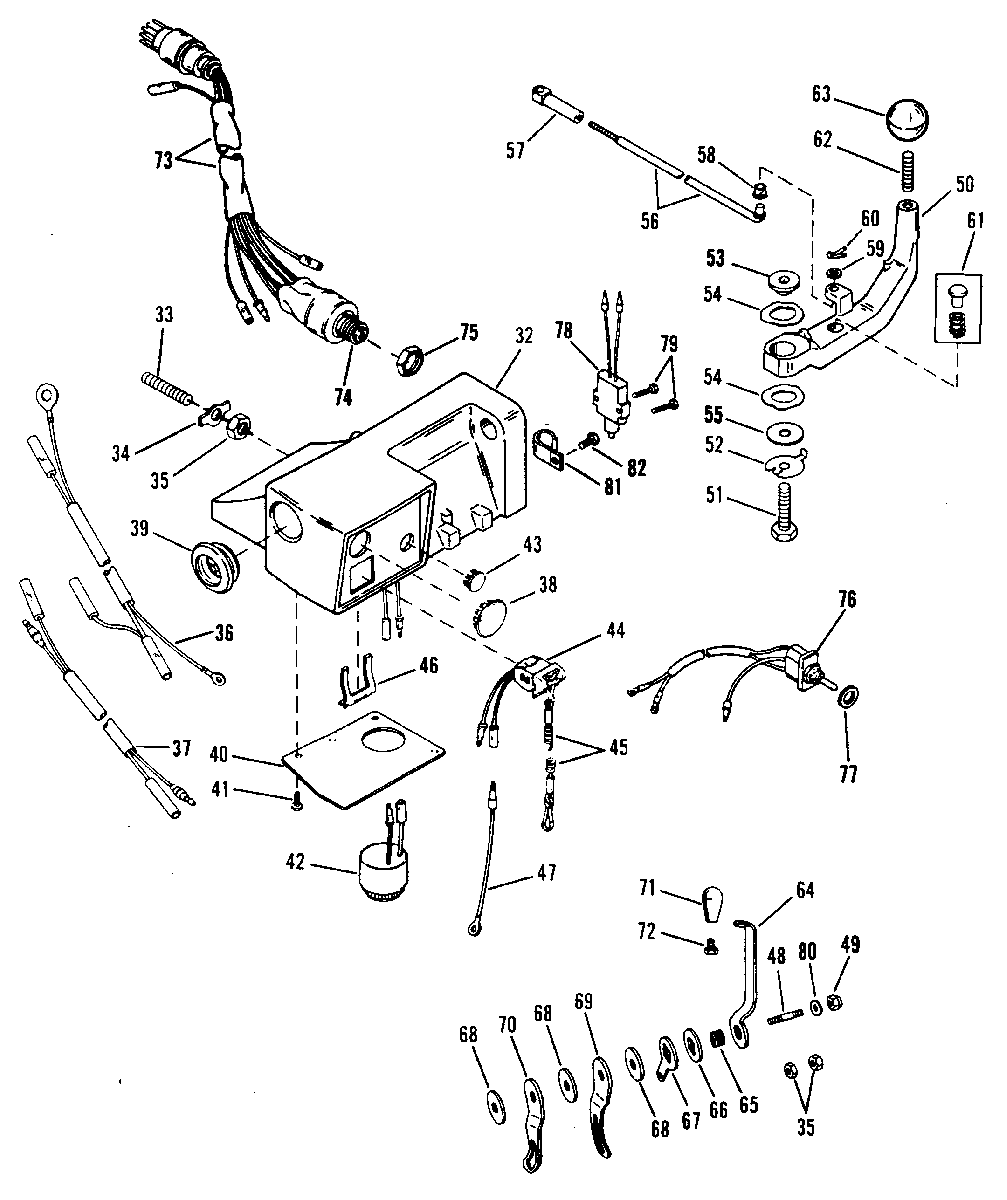

STEERING HANDLE KIT для Mercury - 45 JET 9683055 THRU 9885344
-
№АртикулНазвание
-
32816366T BRACKET (CASTING #816366C2) (BLACK)BRACKET (CASTING #816366C2) (BLACK)
-
32816366T6 BRACKET (CASTING #816366C2) (GRAY)BRACKET (CASTING #816366C2) (GRAY)
-
32816366T3 BRACKET (CASTING #816366C3) (BLACK)BRACKET (CASTING #816366C3) (BLACK)
-
32816366F4 BRACKET (CASTING #816366C3) (GRAY)BRACKET (CASTING #816366C3) (GRAY)
-
3316-815802 STUDSTUD
-
3414-815806 TAB WASHERTAB WASHER
-
3511-400214 NUTNUT
-
3684-815851A2 STOP HARNESSSTOP HARNESS
-
3784-821028A1 CABLE (2-MALE/2-FEMALE CONNECTORS)CABLE (2-MALE/2-FEMALE CONNECTORS)
-
3784-821028A2 CABLE (3-MALE/1-FEMALE CONNECTOR)CABLE (3-MALE/1-FEMALE CONNECTOR)
-
38815803 PLUGPLUG
-
39121051 GROMMETGROMMET
-
408158041 COVERCOVER
-
4110-878608 SCREWSCREW
-
42816051A2 HORNHORN
-
4319-889730 PLUGPLUG
-
4487-11083A4 STOP SWITCHSTOP SWITCH
-
458M0092850 LANYARDLANYARD
-
468M0032846 RETAINERRETAINER
-
4784-11149A3 CABLECABLE
-
4816-8M0034440 STUDSTUD
-
4911-400636 NUTNUT
-
50816367F1 SHIFT LEVER (BLACK)
(USE W/SHIFT LEVER CASTING #816367C2)SHIFT LEVER (BLACK)
(USE W/SHIFT LEVER CASTING #816367C2) -
50816367F2 SHIFT LEVER (GRAY)
(USE W/SHIFT LEVER CASTING #816367C2)SHIFT LEVER (GRAY)
(USE W/SHIFT LEVER CASTING #816367C2) -
5110-4000355 SCREW
(USE W/SHIFT LEVER CASTING #816367C2)SCREW
(USE W/SHIFT LEVER CASTING #816367C2) -
5214-8158051 TAB WASHER
(USE W/SHIFT LEVER CASTING #816367C2)TAB WASHER
(USE W/SHIFT LEVER CASTING #816367C2) -
5323-815983 BUSHING
(USE W/SHIFT LEVER CASTING #816367C2)BUSHING
(USE W/SHIFT LEVER CASTING #816367C2) -
5413-86498 WAVE WASHER
(USE W/SHIFT LEVER CASTING #816367C2)WAVE WASHER
(USE W/SHIFT LEVER CASTING #816367C2) -
50816367F5 SHIFT LEVER (BLACK)
(USE W/SHIFT LEVER CASTING #816367C3)SHIFT LEVER (BLACK)
(USE W/SHIFT LEVER CASTING #816367C3) -
50816367F6 SHIFT LEVER (GRAY)
(USE W/SHIFT LEVER CASTING #816367C3)SHIFT LEVER (GRAY)
(USE W/SHIFT LEVER CASTING #816367C3) -
5110-4000357 SCREW
(USE W/SHIFT LEVER CASTING #816367C3)SCREW
(USE W/SHIFT LEVER CASTING #816367C3) -
5214-8158051 TAB WASHER
(USE W/SHIFT LEVER CASTING #816367C3)TAB WASHER
(USE W/SHIFT LEVER CASTING #816367C3) -
5323-8159831 BUSHING
(USE W/SHIFT LEVER CASTING #816367C3)BUSHING
(USE W/SHIFT LEVER CASTING #816367C3) -
5412-823970 WASHER, BELLEVILLE
(USE W/SHIFT LEVER CASTING #816367C3)WASHER, BELLEVILLE
(USE W/SHIFT LEVER CASTING #816367C3) -
5412-824610 WASHER, PLASTIC
(USE W/SHIFT LEVER CASTING #816367C3)WASHER, PLASTIC
(USE W/SHIFT LEVER CASTING #816367C3) -
5512-814803 WASHERWASHER
-
56495636 SHIFT RODSHIFT ROD
-
5748419T ROD ENDROD END
-
5823-26856 BUSHINGBUSHING
-
5912-35950 WASHERWASHER
-
6018-25191 COTTER PINCOTTER PIN
-
618M0091388 DETENT ASSEMBLYDETENT ASSEMBLY
-
6216-8M0034452 STUDSTUD
-
6398530 KNOBKNOB
-
64816416A3 CO-PILOT LEVERCO-PILOT LEVER
-
65816564 CO-PILOT DRIVERCO-PILOT DRIVER
-
6612-816576 WASHERWASHER
-
67NLA BRAKE (REPLACED BY REF. #64)BRAKE (REPLACED BY REF. #64)
-
688165621 BRAKE DISCBRAKE DISC
-
69816413 ARM (TOP)ARM (TOP)
-
70816414 ARM (BOTTOM)ARM (BOTTOM)
-
71NLA KNOB (ORDER REF. #64)KNOB (ORDER REF. #64)
-
7210-4000350 SCREWSCREW
-
7384-12649A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
7487-88107A5 KEY SWITCH (SEE BELOW FOR KEYS)KEY SWITCH (SEE BELOW FOR KEYS)
-
7511-879755 NUTNUT
-
7687-14645A4 TRIM SWITCHTRIM SWITCH
-
7749440 NUTNUT
-
7887-8M0052927 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
7910-12110 SCREWSCREW
-
8012-823933 WASHERWASHER
-
8154-648552 CLAMPCLAMP
-
8210-878608 SCREWSCREW
-
-894911 KEY 1AKEY 1A
-
-894912 KEY 1BKEY 1B
-
-894913 KEY 1CKEY 1C
-
-894914 KEY 1DKEY 1D
-
-894915 KEY 1EKEY 1E
-
-894916 KEY 1FKEY 1F
-
-894917 KEY 2AKEY 2A
-
-894918 KEY 2BKEY 2B
-
-894919 KEY 2CKEY 2C
-
-8949110 KEY 2DKEY 2D
-
-8949111 KEY 2EKEY 2E
-
-8949112 KEY 2FKEY 2F
