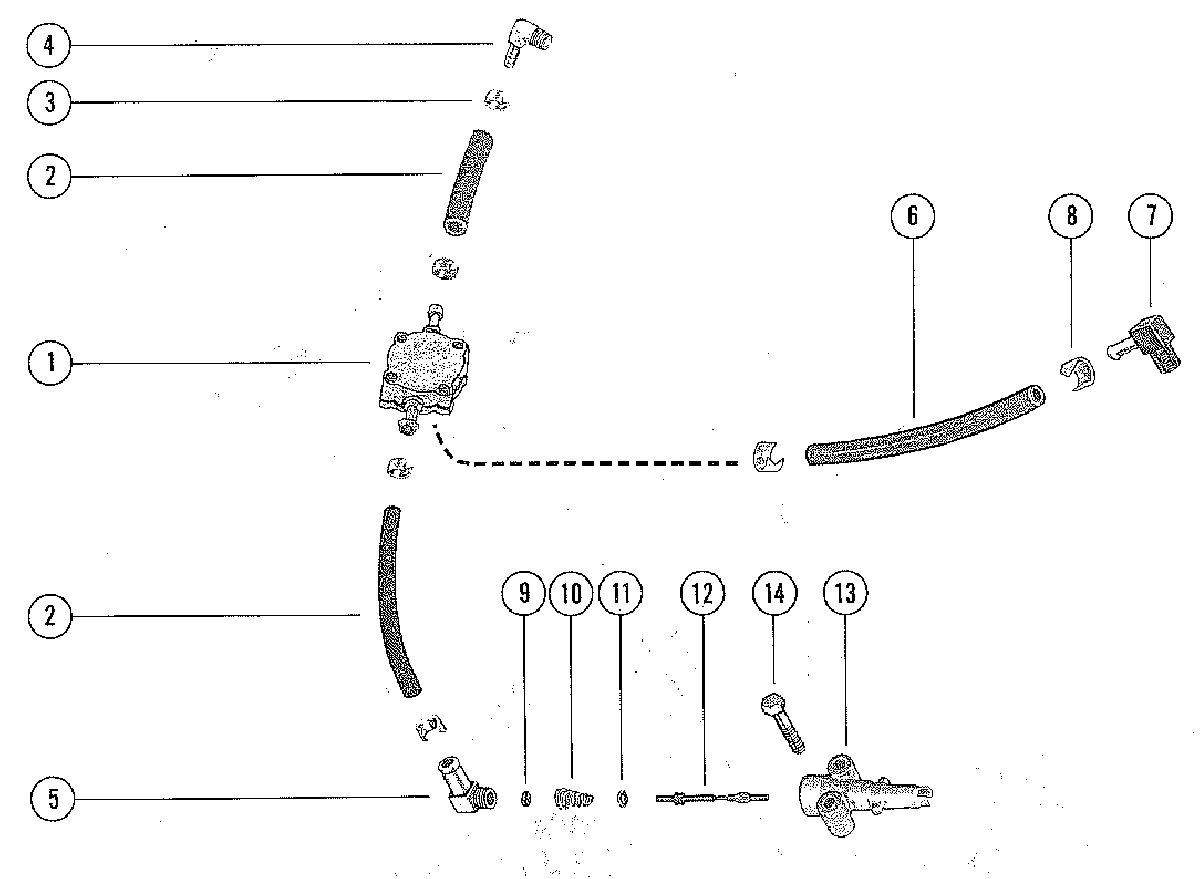

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #15) для Mercury - 45, 4.5 (1 CYL.) 7045758 THRU 7147237

  • №
    Артикул
    Название
  • 1
    89977A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    32-8M0108355 FUEL LINE (3 1/4" AND 1 1/2")
    FUEL LINE (3 1/4" AND 1 1/2")
  • 3
    54-20387 CLAMP, FUEL LINE
    CLAMP, FUEL LINE
  • 4
    22-19688 FITTING, FUEL LINE TO CARBURETOR
    FITTING, FUEL LINE TO CARBURETOR
  • 5
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 6
    32-9912688 HOSE ASSEMBLY
    FUEL PUMP TO CYLINDER BLOCK (4 1/2")
    HOSE ASSEMBLY
    FUEL PUMP TO CYLINDER BLOCK (4 1/2")
  • 7
    22-33373001 ELBOW, HOSE TO CYLINDER BLOCK (90)
    ELBOW, HOSE TO CYLINDER BLOCK (90)
  • 8
    54-20387 CLAMP, FUEL HOSE TO ELBOWS
    CLAMP, FUEL HOSE TO ELBOWS
  • 9
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 10
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 11
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 12
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 13
    22833 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 14
    10-37923 SCREW
    CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4")
    SCREW
    CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4")
  • -
    27-78139A80 GASKET SET
    GASKET SET
