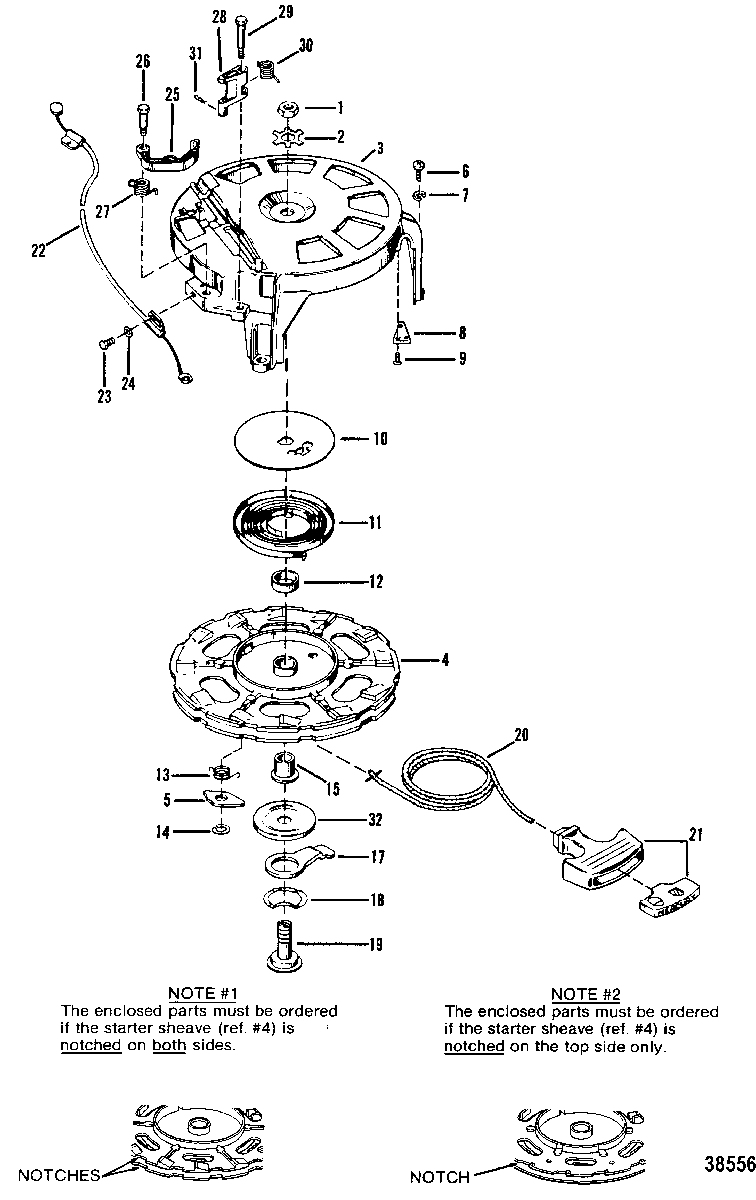

STARTER REWIND для Mercury - 45 (4 CYL.) 7143688 THRU 0A719280

  • №
    Артикул
    Название
  • 1
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 2
    14-61004 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 3
    89016A3 HOUSING, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) IS NOTCHED ON BOTH SIDES.
    HOUSING, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) IS NOTCHED ON BOTH SIDES.
  • 3
    890162 HOUSING, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
    HOUSING, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
  • 4
    50-94338A1 SHEAVE ASSEMBLY, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.
    SHEAVE ASSEMBLY, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.
  • 4
    50-44255A1 SHEAVE ASSEMBLY, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
    SHEAVE ASSEMBLY, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
  • 5
    91936 PAWL, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.
    PAWL, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.
  • 5
    44508 PAWL, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
    PAWL, Starter
    THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.
  • 6
    10-54523 SCREW, (.312-18 x 1.00), STARTER HOUSING
    SCREW, (.312-18 x 1.00), STARTER HOUSING
  • 7
    13-20202 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 8
    37691 PLATE, CABLE GUIDE
    PLATE, CABLE GUIDE
  • 9
    10-358811 SCREW, (#6-32 x .250), DRIVE - CABLE GUIDE PLATE
    SCREW, (#6-32 x .250), DRIVE - CABLE GUIDE PLATE
  • 10
    61002 PLATE, STARTER REWIND
    PLATE, STARTER REWIND
  • 11
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 12
    90-97649 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 13
    24-87651 SPRING, STARTER PAWL
    SPRING, STARTER PAWL
  • 14
    53-87706 E RING, STARTER PAWL
    E RING, STARTER PAWL
  • 15
    23-63061 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 17
    94962 LEVER
    LEVER
  • 18
    13-20160 WAVE WASHER
    WAVE WASHER
  • 19
    87656 SHEAVE SHAFT
    SHEAVE SHAFT
  • 20
    50-12066Q10 CABLE ASSEMBLY, Starter
    CABLE ASSEMBLY, Starter
  • 20
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
  • 21
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 22
    76568 CABLE, INTERLOCK
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
    CABLE, INTERLOCK
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
  • 23
    10-69022 SCREW, (#10-32 x .500) Stainless Steel, INTERLOCK CBLE ATTACHING
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
    SCREW, (#10-32 x .500) Stainless Steel, INTERLOCK CBLE ATTACHING
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
  • 24
    12-26013 WASHER
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
    WASHER
    ALSO USED ON ELECTRIC TILLER HANDLE MODELS
  • 25
    428201 CAM, INTERLOCK
    CAM, INTERLOCK
  • 26
    10-76138 SCREW, (.312-18 x 1.120), INTERLOCK CAM
    SCREW, (.312-18 x 1.120), INTERLOCK CAM
  • 27
    24-761401 SPRING, INTERLOCK CAM SCREW
    SPRING, INTERLOCK CAM SCREW
  • 28
    79371 ACTUATOR, INTERLOCK
    ACTUATOR, INTERLOCK
  • 29
    10-76137 SCREW, INTERLOCK ACTUATOR (1-5/8")
    SCREW, INTERLOCK ACTUATOR (1-5/8")
  • 30
    24-76139 SPRING
    SPRING
  • 31
    18-26811 COTTER PIN
    COTTER PIN
  • 32
    12-35559 WASHER
    WASHER
  • -
    89016A3 STARTER ASSEMBLY, Rewind
    STARTER ASSEMBLY, Rewind
