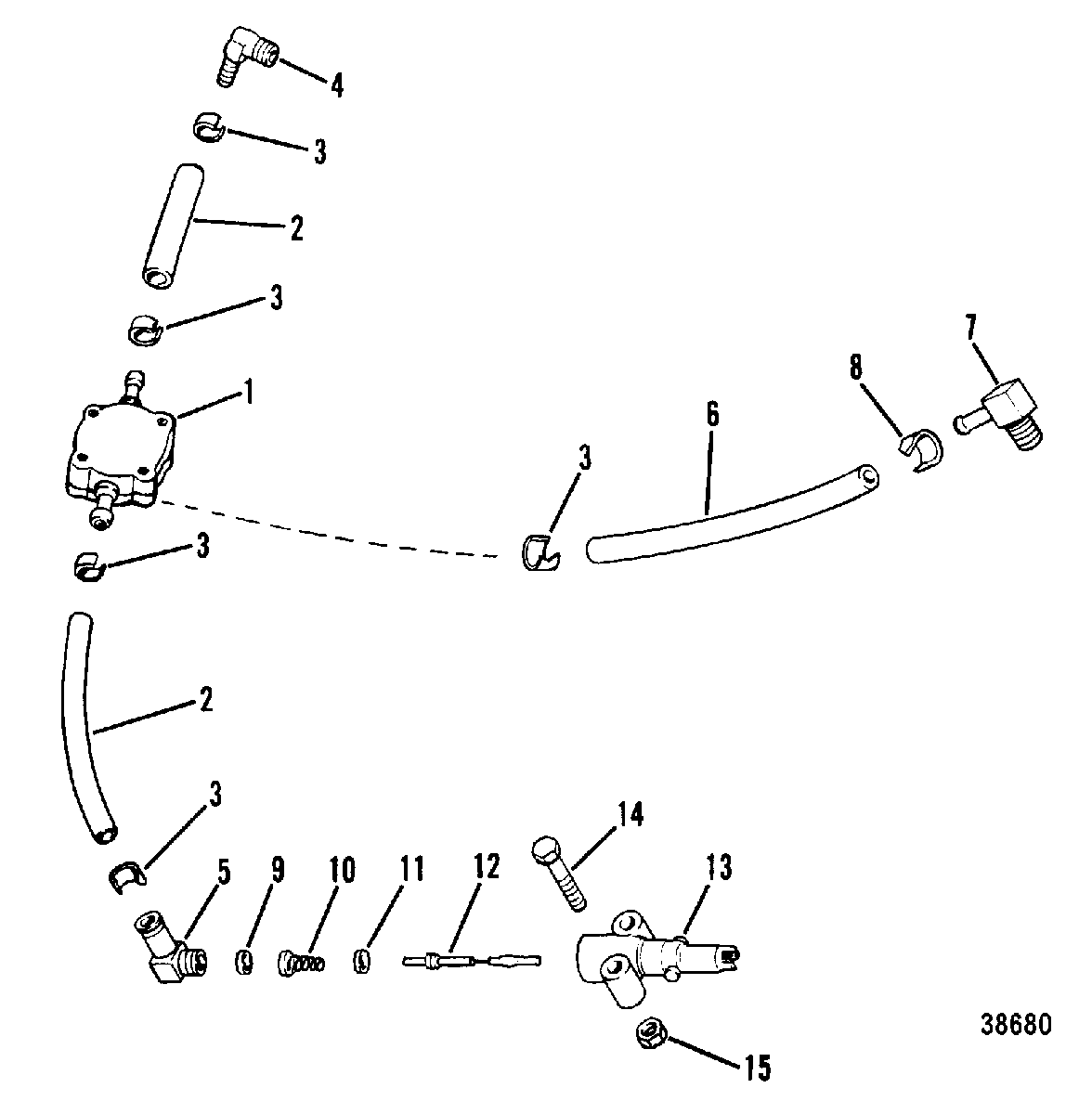

FUEL PUMP AND FUEL LINES для Mercury - 4.5 (1 CYL.) 5595532 & Up

  • №
    Артикул
    Название
  • 1
    89977A1 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 3
    54-68424 CLAMP, FUEL LINE
    CLAMP, FUEL LINE
  • 4
    22-19688 FITTING, FUEL LINE TO CARBURETOR
    FITTING, FUEL LINE TO CARBURETOR
  • 5
    22-98750 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 6
    32-9912878 TUBING, FUEL PUMP TO CYLINDER BLOCK
    TUBING, FUEL PUMP TO CYLINDER BLOCK
  • 7
    22-33373001 ELBOW, HOSE TO CYLINDER BLOCK (90 DEGREE)
    ELBOW, HOSE TO CYLINDER BLOCK (90 DEGREE)
  • 8
    54-68424 CLAMP, FUEL PUMP HOSE TO ELBOWS
    CLAMP, FUEL PUMP HOSE TO ELBOWS
  • 9
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 10
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 11
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 12
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 13
    22833 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 14
    10-37923 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 15
    11-24652 NUT, (.250-28), ADAPTOR SCREW
    NUT, (.250-28), ADAPTOR SCREW
  • -
    27-78139A80 GASKET SET
    GASKET SET
