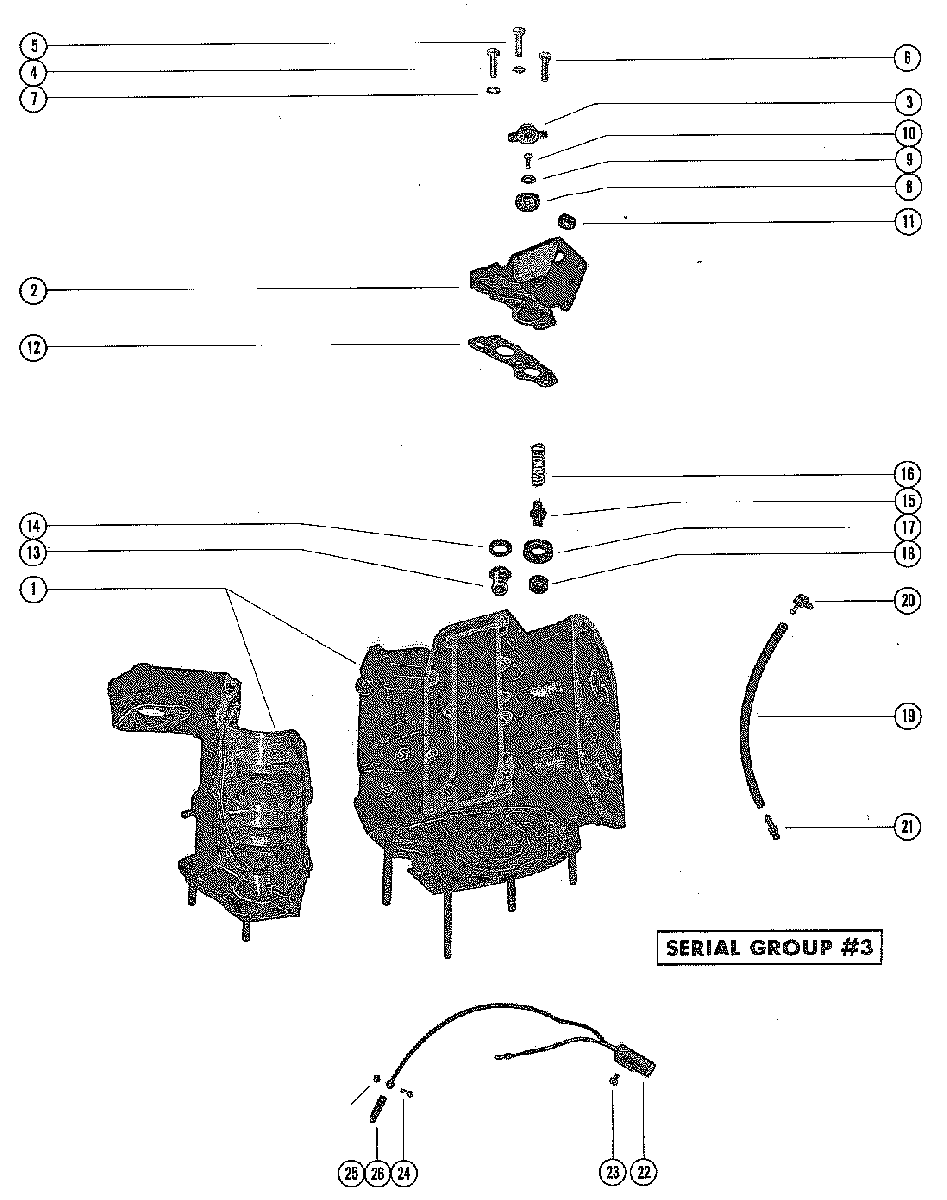

CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #3) для Mercury - 402 3340783 THRU 7047607

  • №
    Артикул
    Название
  • 1
    851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
    CYLINDER BLOCK AND CRANKCASE ASS'Y
  • 2
    66843T BRACKET, COIL MOUNTING
    BRACKET, COIL MOUNTING
  • 3
    99436A1 COVER, DIAPHRAGM
    COVER, DIAPHRAGM
  • 4
    10-31984 SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")
    SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")
  • 5
    10-37562 SCREW, STARTER BRACKET AND COVER TO COIL BRACKET (1")
    SCREW, STARTER BRACKET AND COVER TO COIL BRACKET (1")
  • 6
    10-58414 SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")
    SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")
  • 7
    13-26993 LOCKWASHER, COIL MOUNTING BRACKET SCREW
    LOCKWASHER, COIL MOUNTING BRACKET SCREW
  • 8
    648771 DIAPHRAGM, POPPET VALVE
    DIAPHRAGM, POPPET VALVE
  • 9
    12-76451 WASHER, DIAPHRAGM
    WASHER, DIAPHRAGM
  • 10
    10-45817 SCREW, WASHER AND DIAPHRAGM TO POPPET VALVE
    SCREW, WASHER AND DIAPHRAGM TO POPPET VALVE
  • 11
    25-39597 GROMMET, COIL MOUNTING BRACKET
    GROMMET, COIL MOUNTING BRACKET
  • 12
    27-66847 GASKET, COIL MOUNTING BRACKET TO BLOCK
    GASKET, COIL MOUNTING BRACKET TO BLOCK
  • 13
    75692 THERMOSTAT
    THERMOSTAT
  • 14
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 15
    64874 POPPET, RELIEF VALVE
    POPPET, RELIEF VALVE
  • 16
    24-66852 SPRING, COMPRESSION - POPPET RELIEF VALVE
    SPRING, COMPRESSION - POPPET RELIEF VALVE
  • 17
    65848 WASHER, POPPET VALVE
    WASHER, POPPET VALVE
  • 18
    25-64872 GROMMET, POPPET VALVE
    GROMMET, POPPET VALVE
  • 19
    32-9938779 HOSE, CYLINDER BLEED (8")
    HOSE, CYLINDER BLEED (8")
  • 20
    21-64871A3 ELBOW ASSEMBLY, CYLINDER BLEED
    ELBOW ASSEMBLY, CYLINDER BLEED
  • 21
    22-56759 FITTING, CYLINDERR BLEED
    FITTING, CYLINDERR BLEED
  • 22
    58124A17 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 23
    10-48409 SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")
    SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")
  • 24
    10-36046 SCREW, MERCURY SWITCH LEAD ATTACHING
    SCREW, MERCURY SWITCH LEAD ATTACHING
  • 25
    11-62590 NUT, MERCURY SWITCH LEAD SCREW
    NUT, MERCURY SWITCH LEAD SCREW
  • 26
    85-640801 SLEEVE, MERCURY SWITCH LEAD SCREW (2")
    SLEEVE, MERCURY SWITCH LEAD SCREW (2")
