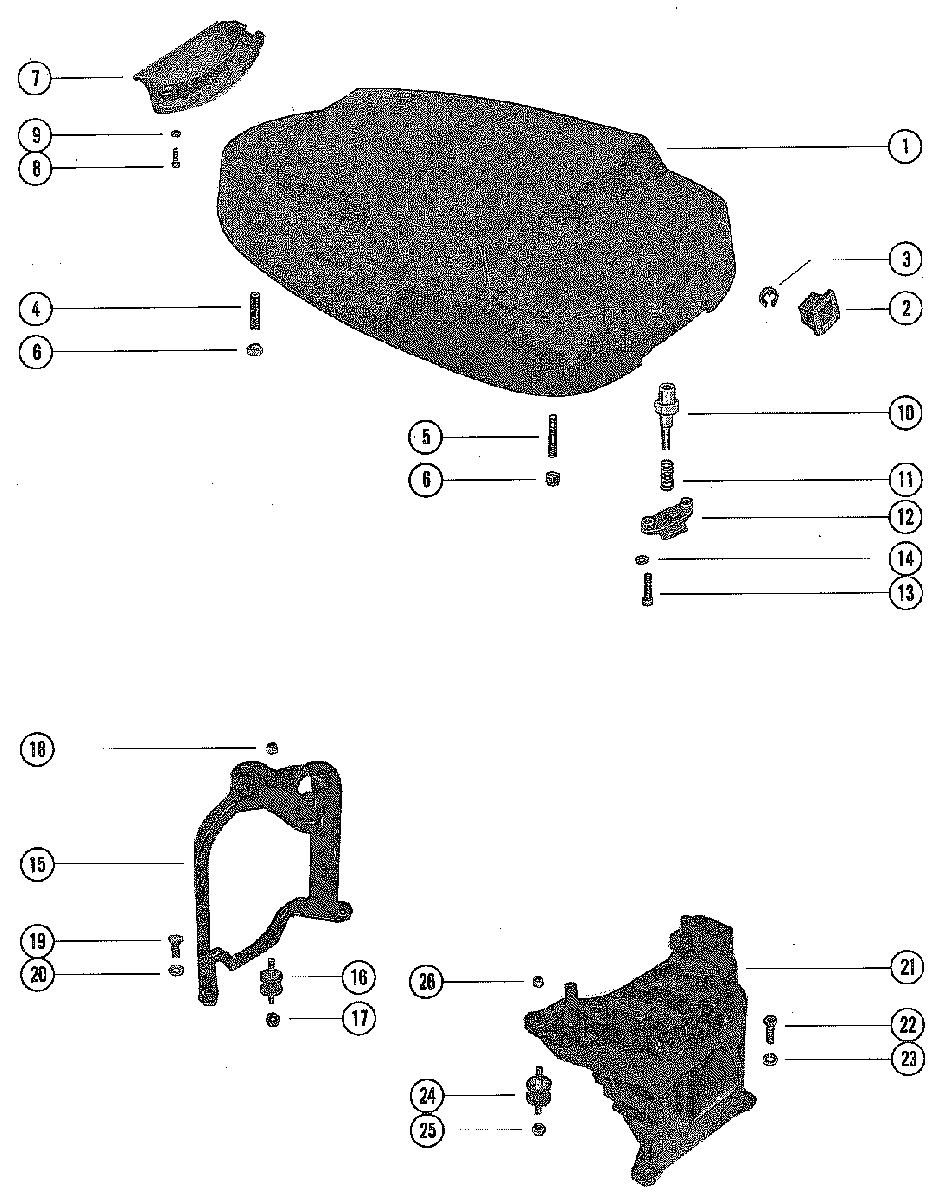

TOP COWL ASSEMBLY для Mercury - 402 3339688 THRU 9076838

  • №
    Артикул
    Название
  • 1
    2138-4413A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    58657 INSERT, ROPE GUIDE - TOP COWL
    INSERT, ROPE GUIDE - TOP COWL
  • 3
    53-72168 RING, RETAINING - ROPE GUIDE INSERT
    RING, RETAINING - ROPE GUIDE INSERT
  • 4
    16-21391 STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
    STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
  • 5
    16-21553 STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
    STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
  • 6
    11-82670911 NUT, TOP COWL STUD
    NUT, TOP COWL STUD
  • 7
    62236 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 8
    10-38055 SCREW, REAR SHIELD TO TOP COWL (5/8")
    SCREW, REAR SHIELD TO TOP COWL (5/8")
  • 9
    12-26014 WASHER, REAR SHIELD SCREW
    WASHER, REAR SHIELD SCREW
  • 10
    39619 BUTTON, FRONT COVER RELEASE - TOP COWL
    BUTTON, FRONT COVER RELEASE - TOP COWL
  • 11
    24-37911 SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
    SPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
  • 12
    60865 CATCH, FRONT COVER - TOP COWL
    CATCH, FRONT COVER - TOP COWL
  • 13
    10-69011 SCREW, FRONT COVER CATCH TO TOP COWL (7/8")
    SCREW, FRONT COVER CATCH TO TOP COWL (7/8")
  • 14
    13-26996 LOCK WASHER, FRONT COVER CATCH SCREW
    LOCK WASHER, FRONT COVER CATCH SCREW
  • 15
    67878 BRACKET, SUPPORT - TOP COWL
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    BRACKET, SUPPORT - TOP COWL
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 15
    67878 BRACKET, SUPPORT - TOP COWL
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    BRACKET, SUPPORT - TOP COWL
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 16
    90435 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 17
    11-8267089 NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER (LOWER)
    NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER (LOWER)
  • 18
    11-826709109 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET (UPPER)
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET (UPPER)
  • 19
    10-37562 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
  • 20
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 21
    67323 BRACKET, SUPPORT - TOP COWL (FRONT)
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
    BRACKET, SUPPORT - TOP COWL (FRONT)
    UNITED STATES 3859434 AND BELOW
    AUSTRALIA 8016689 AND BELOW
    BELGIUM 9051458 AND BELOW
    CANADA 7006601 AND BELOW
  • 21
    67323 BRACKET, SUPPORT - TOP COWL (FRONT)
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
    BRACKET, SUPPORT - TOP COWL (FRONT)
    UNITED STATES 3859435 AND UP
    AUSTRALIA 8016690 AND UP
    BELGIUM 9051459 AND UP
    CANADA 7032138 AND UP
  • 22
    10-37562 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
  • 23
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 24
    90435 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 25
    11-8267089 NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
    NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
  • 26
    11-826709109 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)
