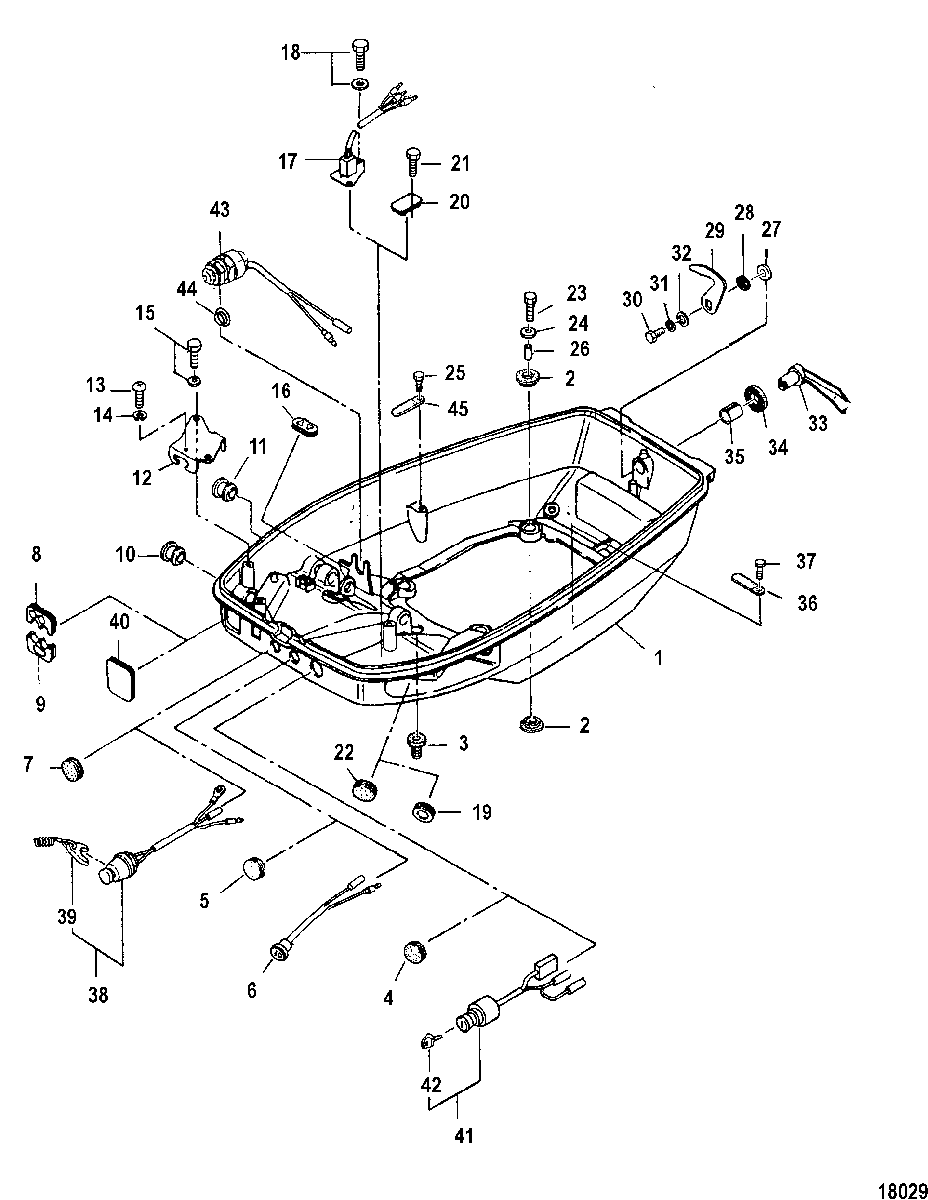

Bottom Cowl, 0N134078 and below для Mercury - 40 LIGHTNING XR (International) 0N056165 & Up
-
№АртикулНазвание
-
1100-8M0085711 BOTTOM COWLBOTTOM COWL
-
223-8537437 MOUNT, RubberMOUNT, Rubber
-
325-16823 GROMMETGROMMET
-
425-162263 GROMMET (Manual)GROMMET (Manual)
-
525-16226 GROMMET (Non-Oil Injection)GROMMET (Non-Oil Injection)
-
6804057 PILOT LAMP (Oil Injection)PILOT LAMP (Oil Injection)
-
725-16226 GROMMETGROMMET
-
825-8518502 GROMMETGROMMET
-
925-8518503 GROMMETGROMMET
-
1025-162284 GROMMETGROMMET
-
1119-855549 PLUGPLUG
-
128518364 BRACKETBRACKET
-
1310-823042075 SCREWSCREW
-
1413-168181 LOCKWASHERLOCKWASHER
-
1510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1625-8518506 GROMMET (Handle)GROMMET (Handle)
-
1625-8518504 GROMMET (Remote Control)GROMMET (Remote Control)
-
1787-851883 SWITCH (Power Trim)SWITCH (Power Trim)
-
1810-8230427 BOLT (Power Trim)BOLT (Power Trim)
-
1925-953871 GROMMET (Power Trim)GROMMET (Power Trim)
-
2025-8518507 GROMMET (Power Trim)GROMMET (Power Trim)
-
2110-168288 BOLT (Manual Tilt)BOLT (Manual Tilt)
-
2225-16226 GROMMET (Manual Tilt)GROMMET (Manual Tilt)
-
2310-8M0124428 BOLTBOLT
-
2412-161404 WASHERWASHER
-
2510-162231 BOLT (Handle)BOLT (Handle)
-
2623-8537154 SPACERSPACER
-
2712-953922 WASHERWASHER
-
2813-16221 WAVE WASHERWAVE WASHER
-
298M0146267 COVER HOOKCOVER HOOK
-
3010-8107552 BOLTBOLT
-
3113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3212-953921 WASHERWASHER
-
33162184 HOOK LEVERHOOK LEVER
-
3426-16219 SEALSEAL
-
3523-16220 BUSHINGBUSHING
-
3654-8M0130961 CLAMP (Power Trim)CLAMP (Power Trim)
-
3710-879194247 SCREW (Power Trim)SCREW (Power Trim)
-
3887-804051A1 LANYARD SWITCH (Handle)LANYARD SWITCH (Handle)
-
39823054 LANYARD (Handle)LANYARD (Handle)
-
4025-8518505 GROMMETGROMMET
-
4187-804052A1 MAIN SWITCH (Electric)MAIN SWITCH (Electric)
-
42802989 KEY (Electric)
(#301)KEY (Electric)
(#301) -
428029891 KEY (Electric)
(#302)KEY (Electric)
(#302) -
428029892 KEY (Electric)
(#303)KEY (Electric)
(#303) -
4387-8M0127937 NEUTRAL SWITCH (Electric)NEUTRAL SWITCH (Electric)
-
4412-9539211 WASHER (Electric)WASHER (Electric)
-
4554-8M0130961 CLAMP (Handle)CLAMP (Handle)
-
-8M0141823 STARTER MOTOR KITSTARTER MOTOR KIT
