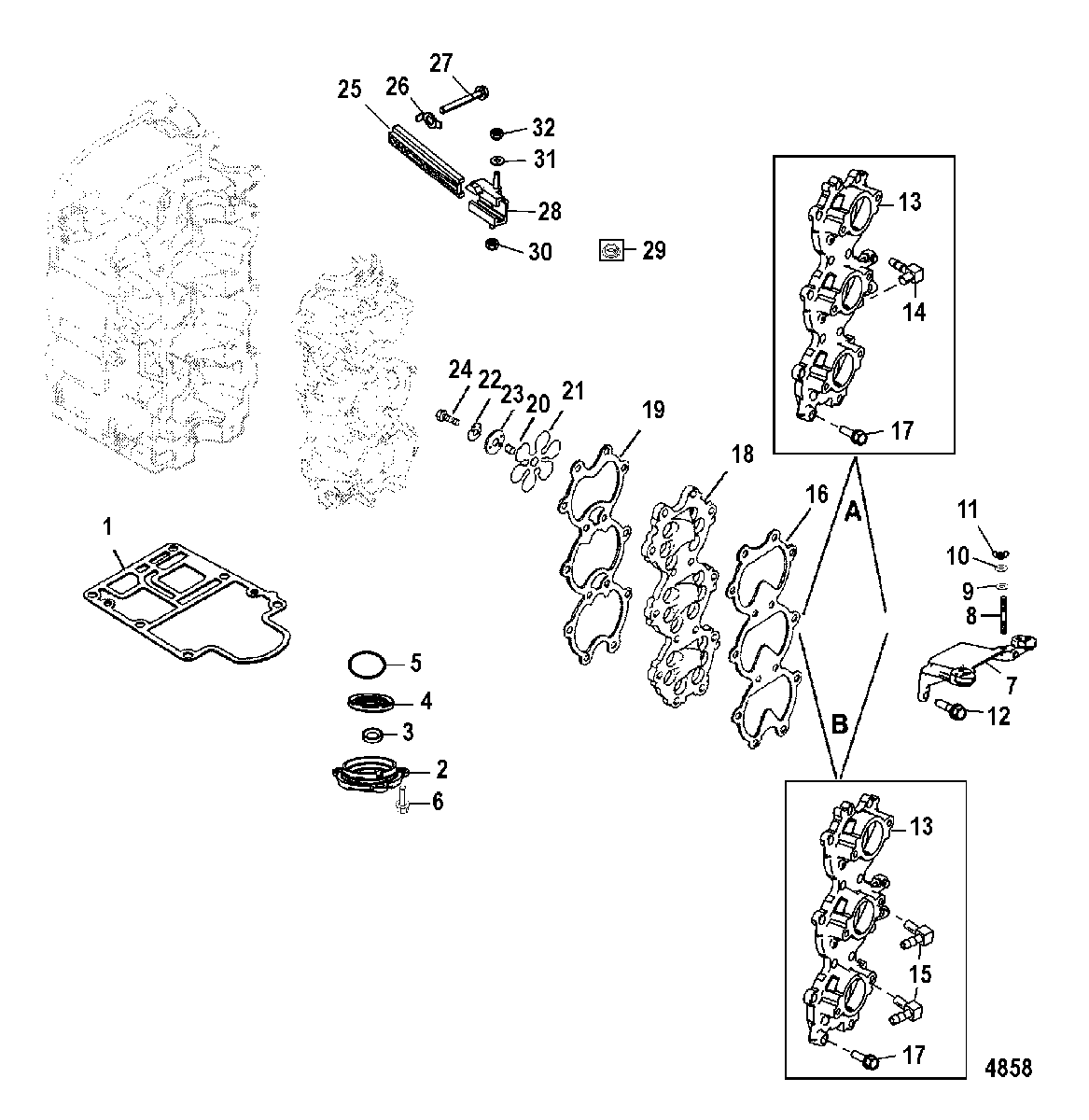

Induction Manifold and Reed Block для Mercury - 40 JET 0T980000 & Up
-
№АртикулНазвание
-
127-8M0000822 GASKETGASKET
-
21171-9812T9 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
326-66301 SEAL, OilSEAL, Oil
-
426-41953 SEALSEAL
-
525-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
610-81742720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
719077A07 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
816-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
912-49221 WASHER, (.187 x .500 x .062) Neoprene
(Electric)WASHER, (.187 x .500 x .062) Neoprene
(Electric) -
1012-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Electric)WASHER, (.255 x .620 x .030) Stainless Steel
(Electric) -
1111-816872 WING NUT
(Electric)WING NUT
(Electric) -
1210-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
13827998A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
-22-15026 CAP
(For use on Induction Manifold)CAP
(For use on Induction Manifold) -
1422-19725 ELBOW
(Electric)ELBOW
(Electric) -
1522-19725 ELBOW
(Manual)ELBOW
(Manual) -
1627-812869 GASKETGASKET
-
1710-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1819075A3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
1927-812868 GASKETGASKET
-
20NSS NOT SOLD SEPARATE, Dowel PinNOT SOLD SEPARATE, Dowel Pin
-
2134-812880A03 REED ASSEMBLYREED ASSEMBLY
-
2214-429821 TAB WASHERTAB WASHER
-
23812879002 RETAINER, ReedRETAINER, Reed
-
2410-88421471 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2542881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
2614-42981 TAB WASHERTAB WASHER
-
2710-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
28988851 SLIDESLIDE
-
2923-48475 BUSHINGBUSHING
-
3011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3112-35459 WASHERWASHER
-
3211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
-27-812867A97 GASKET SETGASKET SET
-
-852071T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
