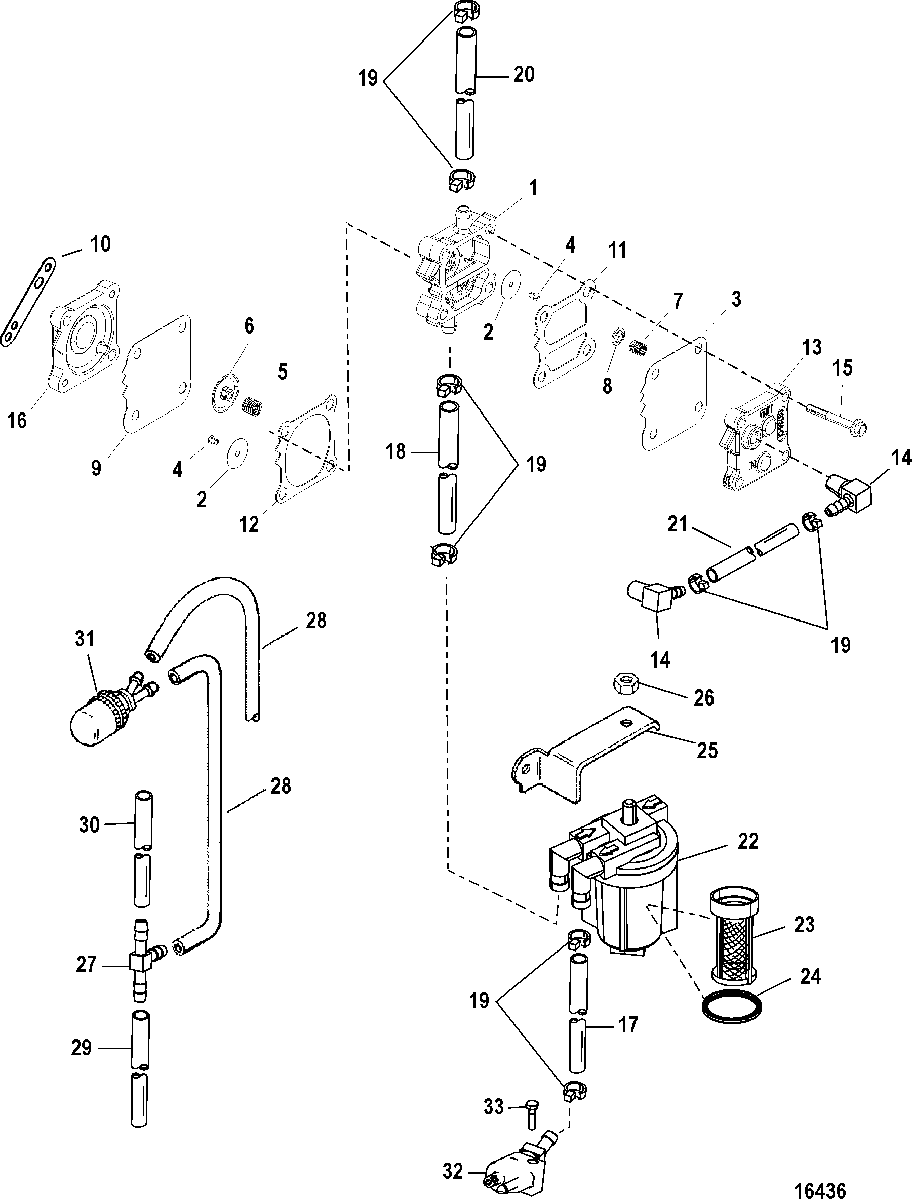

Fuel Pump, Manual для Mercury - 40 JET 0P325500 & Up

№

Артикул

Название
-

14360A78 PUMP KIT, Fuel

PUMP KIT, Fuel
1

NSS NOT SOLD SEPARATE, Fuel Pump

NOT SOLD SEPARATE, Fuel Pump
2

21-857005A1 DIAPHRAGM KIT

DIAPHRAGM KIT
3

NSS NOT SOLD SEPARATE, Diaphragm

NOT SOLD SEPARATE, Diaphragm
4

NSS NOT SOLD SEPARATE, Retainer

NOT SOLD SEPARATE, Retainer
5

NSS NOT SOLD SEPARATE, Spring

NOT SOLD SEPARATE, Spring
6

NSS NOT SOLD SEPARATE, Cap

NOT SOLD SEPARATE, Cap
7

NSS NOT SOLD SEPARATE, Spring

NOT SOLD SEPARATE, Spring
8

NSS NOT SOLD SEPARATE, Cap

NOT SOLD SEPARATE, Cap
9

NSS NOT SOLD SEPARATE, Diaphragm

NOT SOLD SEPARATE, Diaphragm
10

27-987691 GASKET

GASKET
11

NSS NOT SOLD SEPARATE, Gasket-Boost

NOT SOLD SEPARATE, Gasket-Boost
12

NSS NOT SOLD SEPARATE, Gasket-Pulse

NOT SOLD SEPARATE, Gasket-Pulse
13

987752 PLATE

PLATE
14

22-433351 CONNECTOR, 90 Degree - With Vibraseal
(To Crankcase)

CONNECTOR, 90 Degree - With Vibraseal
(To Crankcase)
15

10-82104540 SCREW, (M5 x 40)

SCREW, (M5 x 40)
15

10-82130050 SCREW, (M6 x 50)

SCREW, (M6 x 50)
16

144303 BASE

BASE
17

32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 10.00 Inch Length)

TUBING, (.312) (70.00 Inches Bulk)
(Cut to 10.00 Inch Length)
18

32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 14.25 Inch Length)

TUBING, (.312) (70.00 Inches Bulk)
(Cut to 14.25 Inch Length)
19

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
20

32-830768 HOSE
(To Carburetor)

HOSE
(To Carburetor)
21

32-9912878 HOSE, (.187) (26.00 Inches Bulk)
(Cut to 4.50 Inch Length)

HOSE, (.187) (26.00 Inches Bulk)
(Cut to 4.50 Inch Length)
22

35-8M0063726 FILTER ASSEMBLY, Fuel
(USA) SN# 1B153167 & Below

FILTER ASSEMBLY, Fuel
(USA) SN# 1B153167 & Below
22

35-8M0063726 FILTER ASSEMBLY, Fuel
(Belgium) SN# 0Y050040 & Below

FILTER ASSEMBLY, Fuel
(Belgium) SN# 0Y050040 & Below
22

35-889527T02 FILTER ASSEMBLY, Fuel
(USA) SN# 1B153168 & Up

FILTER ASSEMBLY, Fuel
(USA) SN# 1B153168 & Up
22

35-889527T02 FILTER ASSEMBLY, Fuel
(Belgium) SN# 0Y050041 & Up

FILTER ASSEMBLY, Fuel
(Belgium) SN# 0Y050041 & Up
23

35-87946Q04 FILTER KIT, Fuel
(Use with 891642T03 Fuel Filter) (Quicksilver Brand)

FILTER KIT, Fuel
(Use with 891642T03 Fuel Filter) (Quicksilver Brand)
23

35-87946K04 FILTER KIT, Fuel
(Use with 891642T03 Fuel Filter)(Mercury Brand)

FILTER KIT, Fuel
(Use with 891642T03 Fuel Filter)(Mercury Brand)
23

35-896375Q01 FILTER KIT
(Use with 889527T02 Fuel Filter) (Quicksilver Brand)

FILTER KIT
(Use with 889527T02 Fuel Filter) (Quicksilver Brand)
23

35-896375K01 FILTER KIT
(Use with 889527T02 Fuel Filter) (Mercury Brand)

FILTER KIT
(Use with 889527T02 Fuel Filter) (Mercury Brand)
24

25-897536 SEAL
(Use with 891642T03 Fuel Filter)

SEAL
(Use with 891642T03 Fuel Filter)
24

25-98277001 SEAL
(Use with 889527T02 Fuel Filter)

SEAL
(Use with 889527T02 Fuel Filter)
25

8170281 BRACKET

BRACKET
26

11-401366 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
27

22-59169003 FITTING, Tee

FITTING, Tee
28

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch Length)
(To Top Float Bowl)

TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch Length)
(To Top Float Bowl)
29

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
(To Lower Intake Manifold)

TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
(To Lower Intake Manifold)
30

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 1.50 Inch Lenght)
(To Top Intake Manifold)

TUBING, (240.00 Inches Bulk) (Cut to 1.50 Inch Lenght)
(To Top Intake Manifold)
31

858763 PRIMER BULB

PRIMER BULB
32

22-816856T01 CONNECTOR ASSEMBLY, Fuel

CONNECTOR ASSEMBLY, Fuel
33

10-4000332 SCREW, (M6 x 35)

SCREW, (M6 x 35)
-

27-812867A97 GASKET SET

GASKET SET
-

852071T97 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
