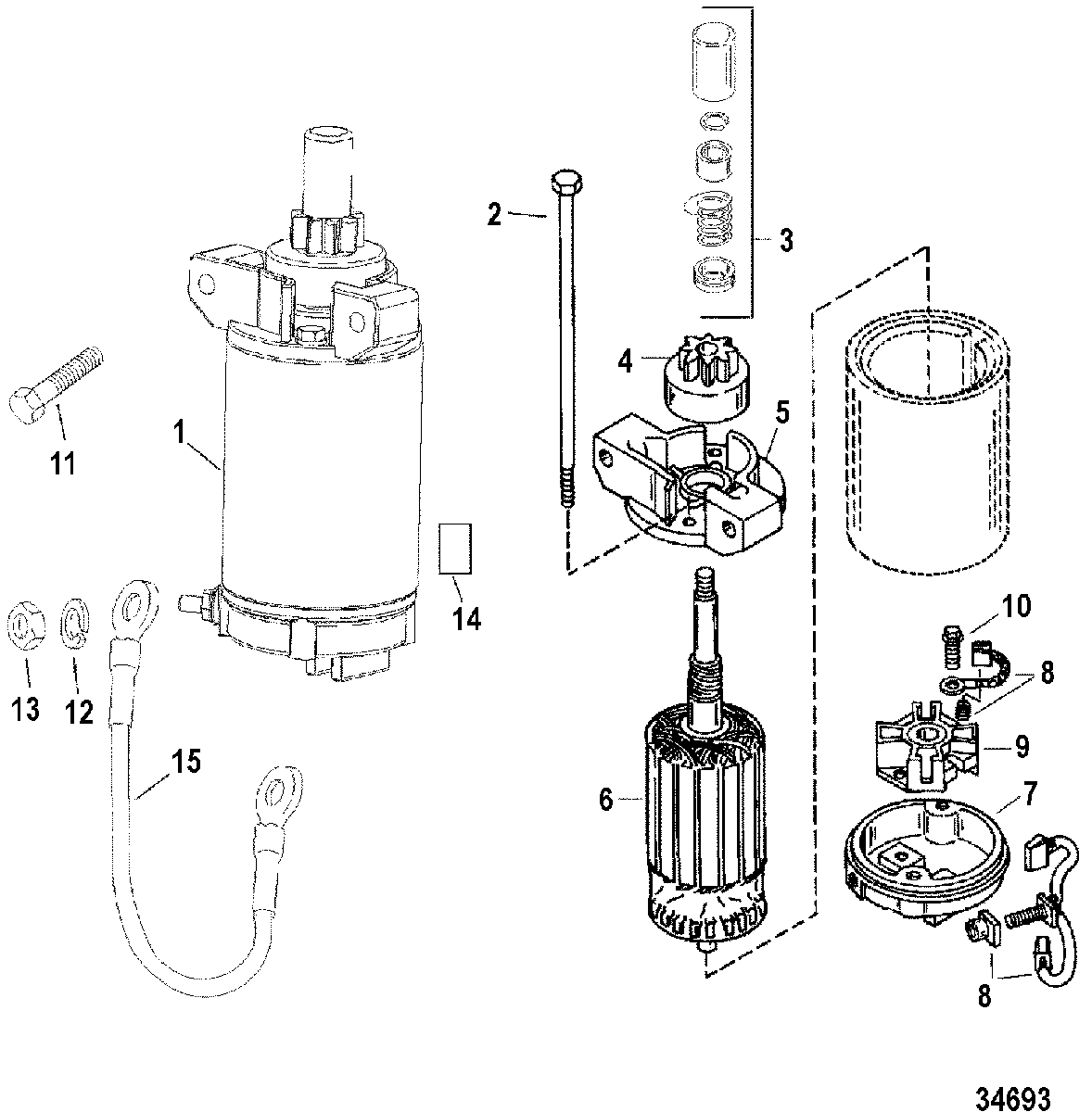

Starter Motor для Mercury - 40 ITALY (4-STROKE) 0P017000 THRU 0P094499

  • №
    Артикул
    Название
  • 1
    50-898265001 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-965661 THRU BOLT
    THRU BOLT
  • 3
    906431 DRIVE KIT
    DRIVE KIT
  • 4
    685751 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 5
    8236392 DRIVE CAP
    DRIVE CAP
  • 6
    8236382 ARMATURE
    ARMATURE
  • 7
    8119011 CAP, Commutator
    CAP, Commutator
  • 8
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 9
    898265014 HOLDER
    HOLDER
  • 10
    F15158 SCREW
    SCREW
  • 11
    10-81893450 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 13
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 14
    NSS NOT SOLD SEPARATE, Decal-Warning-High Voltage
    NOT SOLD SEPARATE, Decal-Warning-High Voltage
  • 15
    84-93388A13 CABLE ASSEMBLY
    CABLE ASSEMBLY
