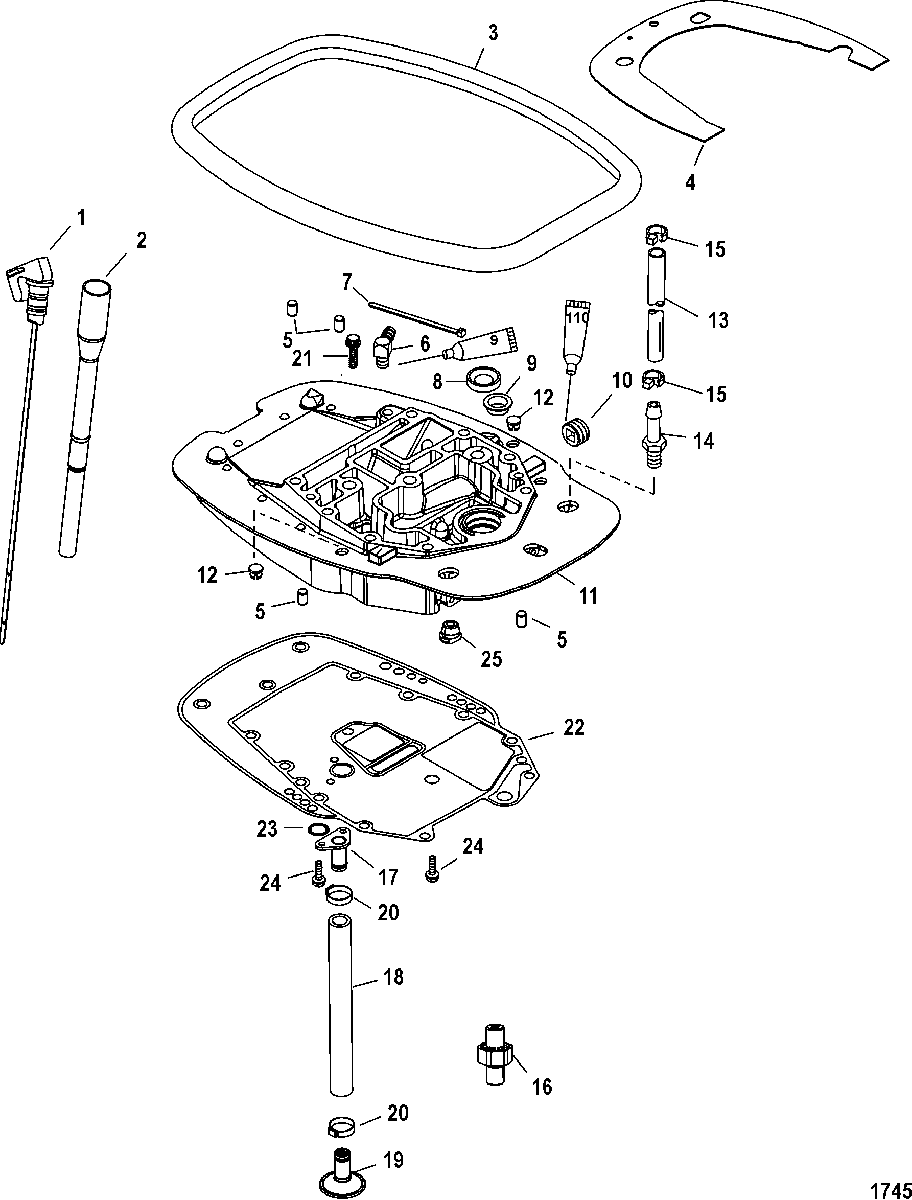

Adaptor Plate для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBE
SN# USA-0T979999/BEL-0P325499 & BelowDIPSTICK TUBE
SN# USA-0T979999/BEL-0P325499 & Below -
2825989003 DIPSTICK TUBE
SN# USA-0T980000/BEL-0P325500 & UpDIPSTICK TUBE
SN# USA-0T980000/BEL-0P325500 & Up -
38560552 SEALSEAL
-
48289151 HEAT SHIELDHEAT SHIELD
-
517-23784 PIN, DowelPIN, Dowel
-
622-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
826-66301 SEAL, OilSEAL, Oil
-
923-859594 BUSHINGBUSHING
-
1022-889567 PLUG, (.500-14)PLUG, (.500-14)
-
11825228A17 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
1219-822464 PLUGPLUG
-
1332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 17 Inches)HOSE, (57.00 Inches Bulk) (Cut to 17 Inches)
-
1422-291112 FITTINGFITTING
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
16881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
17893765 PLATE, Oil Pickup-TopPLATE, Oil Pickup-Top
-
1832-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
19893700 BAFFLEBAFFLE
-
2054-855228 CLAMPCLAMP
-
2110-4007455 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
2227-892320001 GASKET
SN# USA-0T979999/BEL-0P325499 & BelowGASKET
SN# USA-0T979999/BEL-0P325499 & Below -
2227-892320001 GASKET
SN# USA-0T980000/BEL-0P325500 & UpGASKET
SN# USA-0T980000/BEL-0P325500 & Up -
2325-845746 O-RINGO-RING
-
2410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2525-19565002 GROMMET
SN# USA-0T979999/BEL-0P325499 & BelowGROMMET
SN# USA-0T979999/BEL-0P325499 & Below -
2525-19565002 GROMMET
SN# USA-0T980000/BEL-0P325500 & UpGROMMET
SN# USA-0T980000/BEL-0P325500 & Up -
-27-883599A02 GASKET SETGASKET SET
