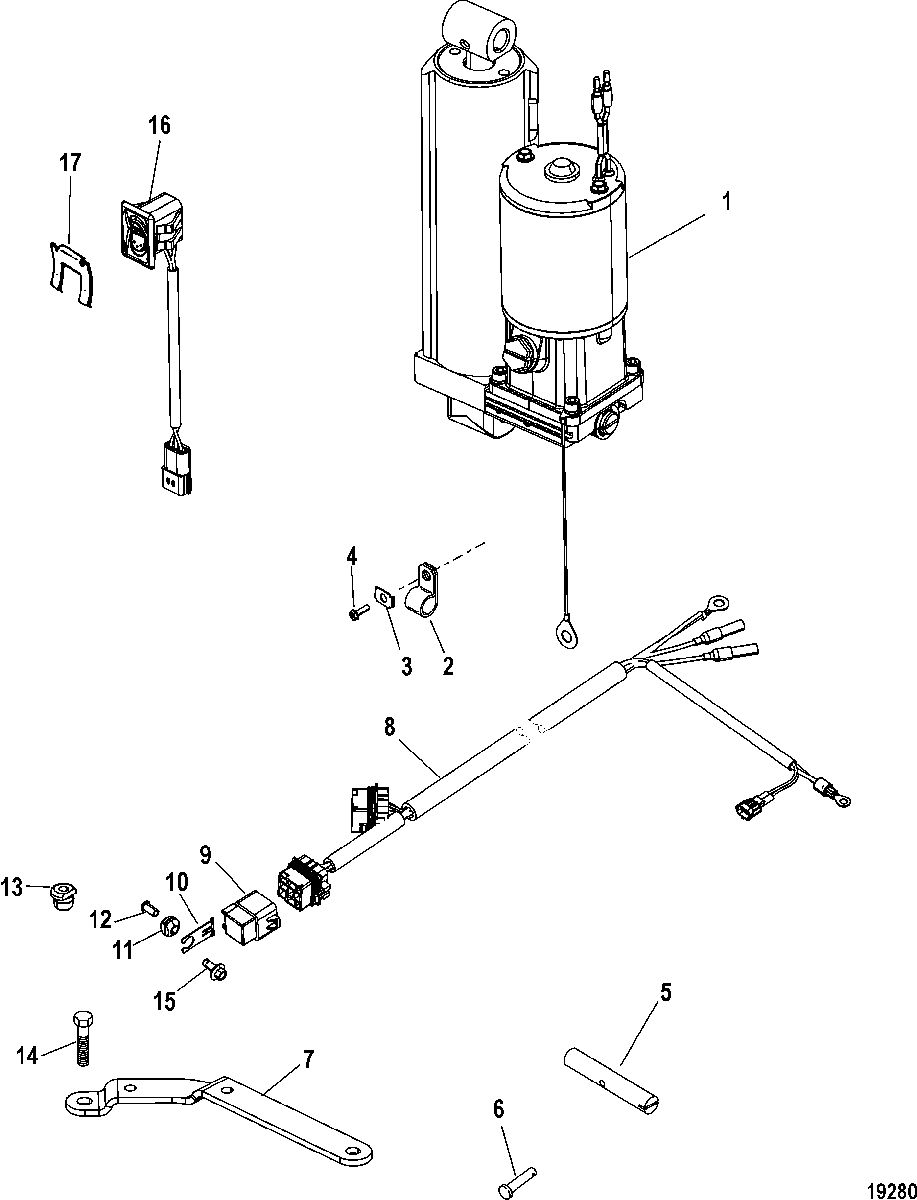

Power Trim Kit, 830150A11 для Mercury - 40 EFI (3 CYL.)(4-STROKE) 1C043417 & Up
-
№АртикулНазвание
-
_8M0055003 POWER TRIM KIT
EFI 30/40 4-StrokePOWER TRIM KIT
EFI 30/40 4-Stroke -
18M0055006 PUMP ASSEMBLY, Power Trim
See Pump/Motor Assembly Section For Parts BreakdownPUMP ASSEMBLY, Power Trim
See Pump/Motor Assembly Section For Parts Breakdown -
254-22740 CLIPCLIP
-
38M0084613 C WASHERC WASHER
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
517-822869001 PIN, UpperPIN, Upper
-
617-821539 PIN, TrilobePIN, Trilobe
-
7882831 BRACKETBRACKET
-
884-826802T34 HARNESS/RELAY ASSEMBLYHARNESS/RELAY ASSEMBLY
-
9882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
10828102 BRACKET, Relay MountBRACKET, Relay Mount
-
1125-818967 GROMMETGROMMET
-
1223-818968 BUSHINGBUSHING
-
1325-19565002 GROMMETGROMMET
-
1410-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1510-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1687-8M0042300 SWITCH, TrimSWITCH, Trim
-
178M0032848 RETAINER, Trim SwitchRETAINER, Trim Switch
