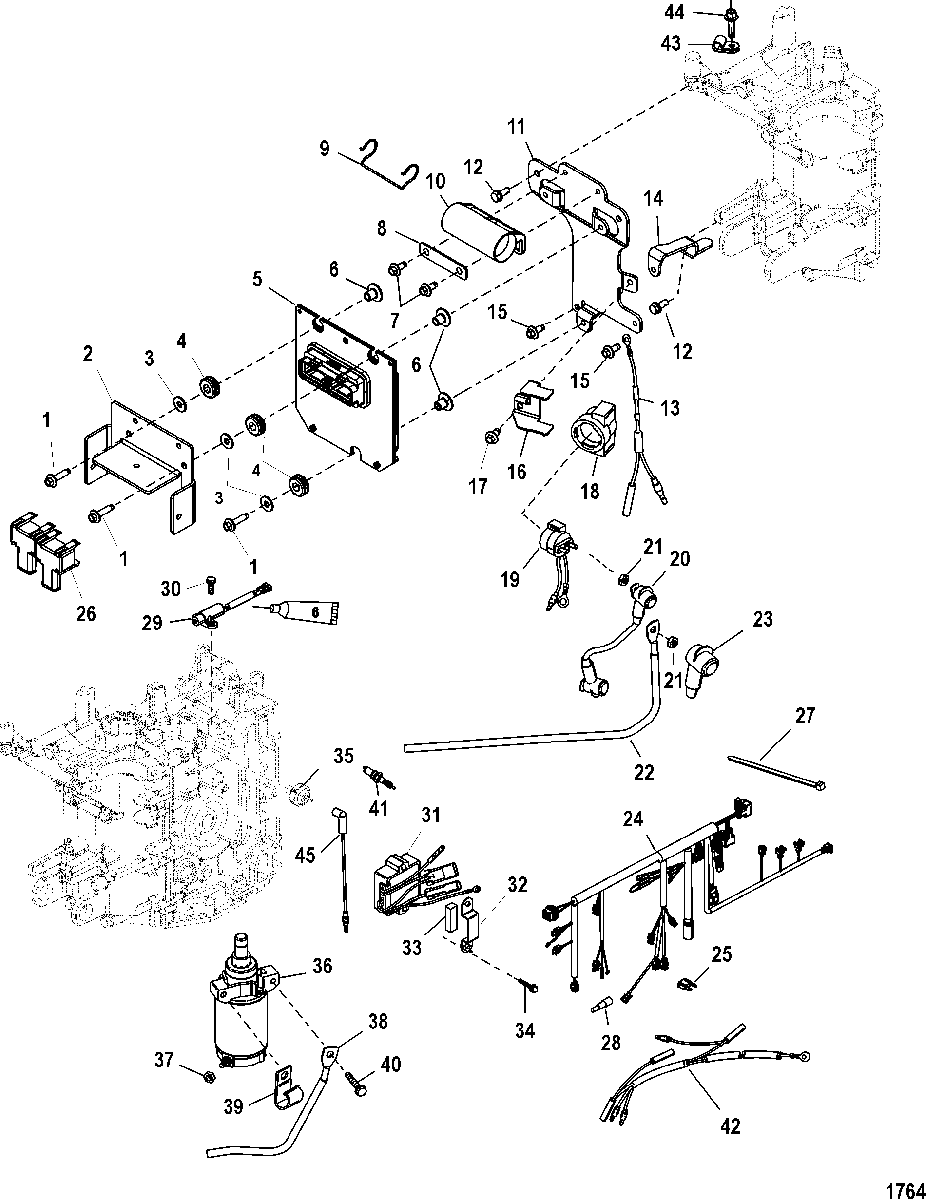

Electrical Components для Mercury - 40 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
110-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
28812902 PLATE
SN# USA-0T575361 & BelowPLATE
SN# USA-0T575361 & Below -
28812902 PLATE
SN# USA-0T575362/ALL BELGIUM & UpPLATE
SN# USA-0T575362/ALL BELGIUM & Up -
312-4002316 WASHERWASHER
-
425-834985 GROMMETGROMMET
-
5898369T14 ECM, Engine Control Module
(30) SN# USA-0T409000 THRU USA-0T842618ECM, Engine Control Module
(30) SN# USA-0T409000 THRU USA-0T842618 -
5898369T14 ECM, Engine Control Module
(30) SN# USA-0T842619 THRU USA-0T979999/BEL-0P325499ECM, Engine Control Module
(30) SN# USA-0T842619 THRU USA-0T979999/BEL-0P325499 -
5898369T21 ECM, Engine Control Module
(30) SN# USA-0T980000/BEL-0P325500 & UpECM, Engine Control Module
(30) SN# USA-0T980000/BEL-0P325500 & Up -
5898369T14 ECM, Engine Control Module
(30-CANADA)ECM, Engine Control Module
(30-CANADA) -
5898369T15 ECM, Engine Control Module
(40) SN# USA-0T409000 THRU USA-0T842618ECM, Engine Control Module
(40) SN# USA-0T409000 THRU USA-0T842618 -
5898369T15 ECM, Engine Control Module
(40) SN# USA-0T842619 THRU USA-0T979999/BEL-0P325499ECM, Engine Control Module
(40) SN# USA-0T842619 THRU USA-0T979999/BEL-0P325499 -
5898369T22 ECM, Engine Control Module
(40) SN# USA-0T980000/BEL-0P325500 THRU USA-1B036319/BEL-0P326604ECM, Engine Control Module
(40) SN# USA-0T980000/BEL-0P325500 THRU USA-1B036319/BEL-0P326604 -
5898369T22 ECM, Engine Control Module
(40) SN# USA-1B036320/BEL-0P326605 & UpECM, Engine Control Module
(40) SN# USA-1B036320/BEL-0P326605 & Up -
5898369T16 ECM, Engine Control Module
(40 BODENSEE) SN# USA-0T409000 THRU USA-0T842618ECM, Engine Control Module
(40 BODENSEE) SN# USA-0T409000 THRU USA-0T842618 -
5898369T16 ECM, Engine Control Module
(40 BODENSEE) SN# USA-0T842619 THRU USA-0T979999ECM, Engine Control Module
(40 BODENSEE) SN# USA-0T842619 THRU USA-0T979999 -
5898369T23 ECM, Engine Control Module
(40 BODENSEE) SN# USA-0T980000 & UpECM, Engine Control Module
(40 BODENSEE) SN# USA-0T980000 & Up -
623-856954 BUSHINGBUSHING
-
710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
8856040 BRACKETBRACKET
-
992753 RETAINERRETAINER
-
10856836001 RETAINERRETAINER
-
118M0009177 PLATEPLATE
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1384-883834T01 CABLE ASSEMBLY, DiodeCABLE ASSEMBLY, Diode
-
148M0007734 BRACEBRACE
-
1510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
16893768 PLATE, SolenoidPLATE, Solenoid
-
1710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
188M0010250 BRACKETBRACKET
-
1989-8M0098898 RELAYRELAY
-
2084-93388A16 CABLE ASSEMBLY, (8.50 Inches)CABLE ASSEMBLY, (8.50 Inches)
-
2111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2284-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2385-880786 BOOT, Insulator - RedBOOT, Insulator - Red
-
2484-878132T3 HARNESS ASSEMBLY, Engine Wiring
SN# 0T979999 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# 0T979999 & Below -
2484-878132T3 HARNESS ASSEMBLY, Engine Wiring
SN# 0P325499 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# 0P325499 & Below -
2484-878132T05 HARNESS ASSEMBLY, Engine Wiring
SN# 0T980000 THRU 1B062363HARNESS ASSEMBLY, Engine Wiring
SN# 0T980000 THRU 1B062363 -
2484-878132T05 HARNESS ASSEMBLY, Engine Wiring
SN# 0P325500 THRU 0P345378HARNESS ASSEMBLY, Engine Wiring
SN# 0P325500 THRU 0P345378 -
2484-878132T05 HARNESS ASSEMBLY, Engine
SN# 1B062256 & UpHARNESS ASSEMBLY, Engine
SN# 1B062256 & Up -
2484-878132T05 HARNESS ASSEMBLY, Engine
SN# 0P345379 & UpHARNESS ASSEMBLY, Engine
SN# 0P345379 & Up -
2588-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
2588-832969T15 FUSE, Mini - Blue - 15 Ampere
(15 AMP)FUSE, Mini - Blue - 15 Ampere
(15 AMP) -
26858754 COVER, FuseCOVER, Fuse
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2813541 PLUG, MalePLUG, Male
-
298M0082988 SENSOR, Crank PositionSENSOR, Crank Position
-
3010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
31883071T1 REGULATOR, VoltageREGULATOR, Voltage
-
32893771 BRACKETBRACKET
-
338308971 FOAM PADFOAM PAD
-
3410-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3587-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
3650-893887T STARTER MOTOR ASSEMBLY
SN# USA-0T800999/BEL-0P267999 & BelowSTARTER MOTOR ASSEMBLY
SN# USA-0T800999/BEL-0P267999 & Below -
3650-893887T STARTER MOTOR ASSEMBLY
SN# USA-0T801000/BEL-0P268000 & UpSTARTER MOTOR ASSEMBLY
SN# USA-0T801000/BEL-0P268000 & Up -
3711-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3884-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3954-65292 J CLIPJ CLIP
-
4010-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
4133-883323001 SPARK PLUG, RA8HCSPARK PLUG, RA8HC
-
4284-852375A6 HARNESS ASSEMBLY, Extension
(HANDLE)HARNESS ASSEMBLY, Extension
(HANDLE) -
4354-24836 CLIPCLIP
-
4410-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4584-881863A1 CABLE ASSEMBLYCABLE ASSEMBLY
-
-61-803017T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
