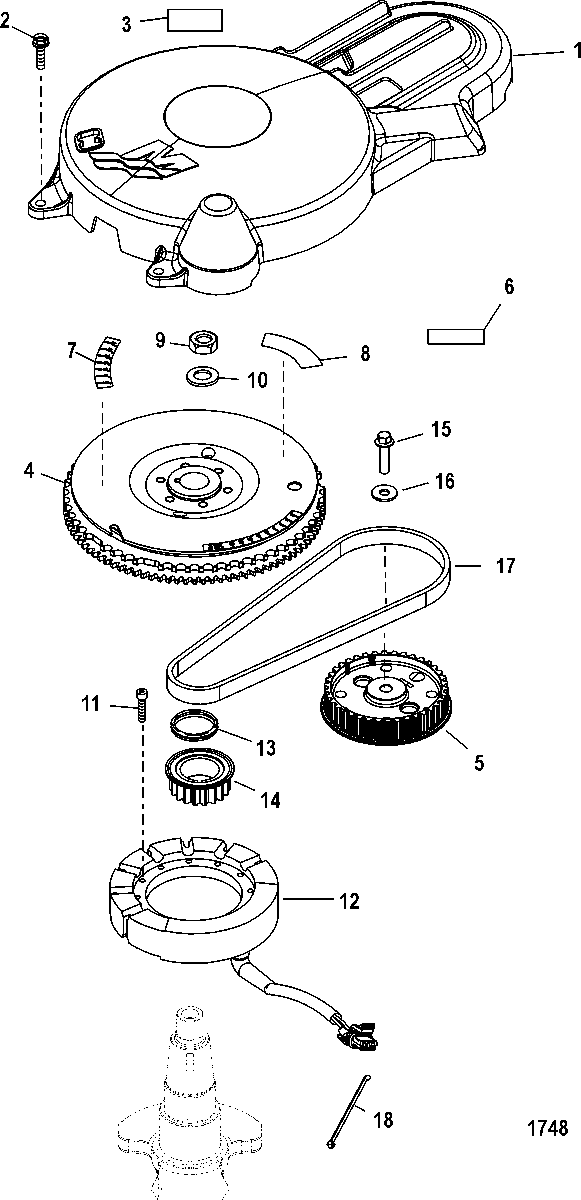

Flywheel для Mercury - 40 EFI (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    859284T2 FLYWHEEL COVER
    FLYWHEEL COVER
  • 2
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 3
    37-883927A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 3
    37-883927A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 3
    37-883927A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
  • 3
    37-883927A05 DECAL, EPA Label Information
    (2005)
    DECAL, EPA Label Information
    (2005)
  • 4
    200-8M0053921 FLYWHEEL
    FLYWHEEL
  • 5
    833104T6 GEAR, Driven
    GEAR, Driven
  • 6
    NSS NOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
    NOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
  • 7
    NSS NOT SOLD SEPARATE, Decal-Timing Marks
    NOT SOLD SEPARATE, Decal-Timing Marks
  • 8
    NSS NOT SOLD SEPARATE, Decal-Warning-Neutral
    NOT SOLD SEPARATE, Decal-Warning-Neutral
  • 9
    11-893789 NUT
    NUT
  • 10
    12-893762 WASHER
    WASHER
  • 11
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 12
    398-878143T05 STATOR
    (ELECTRIC) SN# USA-0T800999/BEL-0P267999 & Below
    STATOR
    (ELECTRIC) SN# USA-0T800999/BEL-0P267999 & Below
  • 12
    398-878143T05 STATOR
    (ELECTRIC) SN# USA-0T801000/BEL-0P268000 & Up
    STATOR
    (ELECTRIC) SN# USA-0T801000/BEL-0P268000 & Up
  • 13
    834838 LOAD RING
    LOAD RING
  • 14
    833102T GEAR, Drive
    GEAR, Drive
  • 15
    10-82761140 SCREW, (M10 x 40)
    SCREW, (M10 x 40)
  • 16
    12-4002320 WASHER
    WASHER
  • 17
    57-8M0065179 BELT
    BELT
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    893504T01 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
