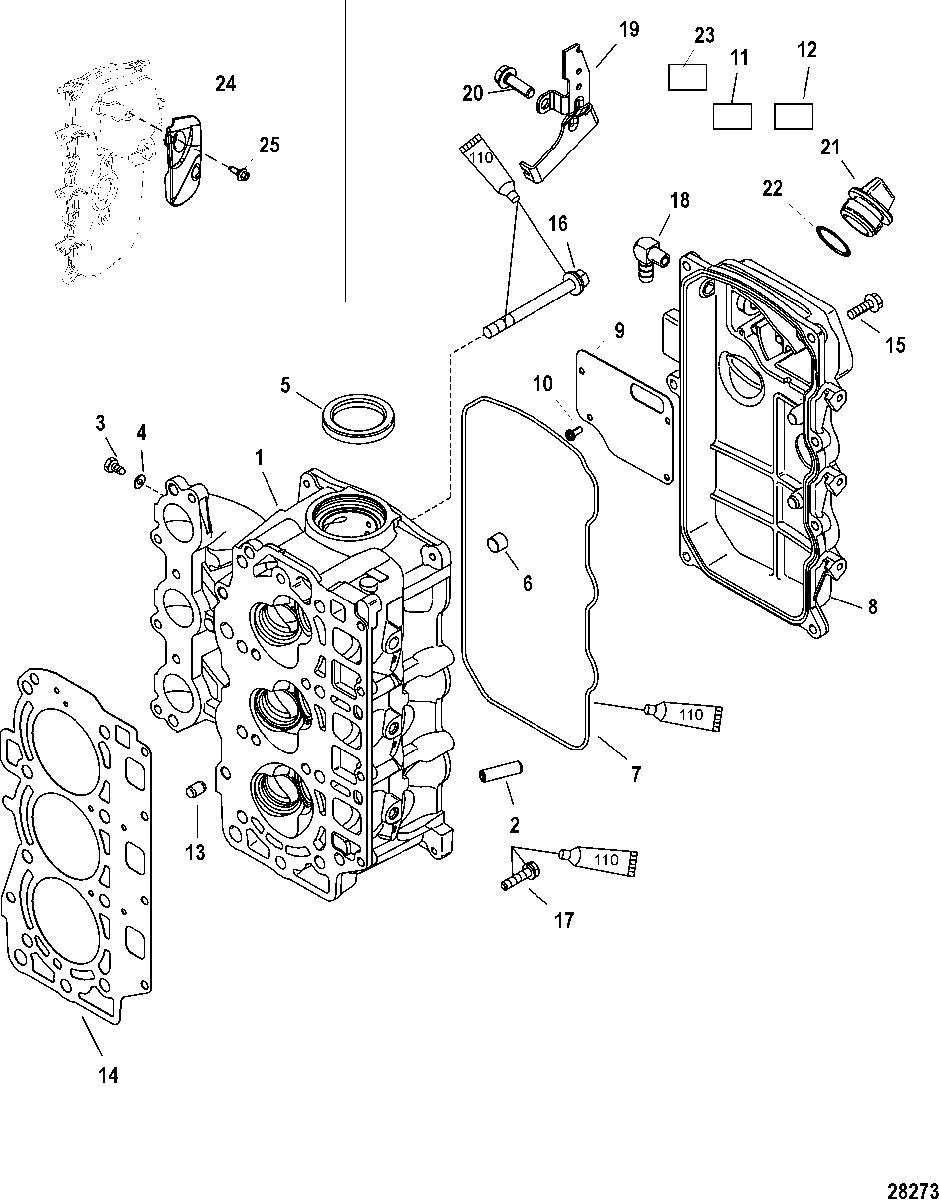

Cylinder Head для Mercury - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up

  • №
    Артикул
    Название
  • -
    893504T02 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 1
    893504T CYLINDER HEAD
    CYLINDER HEAD
  • 2
    858266 GUIDE
    GUIDE
  • 3
    10-4000325 SCREW, (M6 x 8)
    SCREW, (M6 x 8)
  • 4
    12-859768 WASHER
    WASHER
  • 5
    26-893549 SEAL, Oil
    SEAL, Oil
  • 6
    22-875209 PIPE PLUG
    PIPE PLUG
  • 7
    25-893898 SEAL
    SEAL
  • 8
    893693A04 COVER ASSEMBLY
    COVER ASSEMBLY
  • 9
    893711 PLATE, Baffle
    PLATE, Baffle
  • 10
    10-8M0001075 SCREW, (M4)
    SCREW, (M4)
  • 11
    NSS NOT SOLD SEPARATE, Decal- Servicing Referral
    NOT SOLD SEPARATE, Decal- Servicing Referral
  • 12
    NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
    NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
  • 13
    17-825010 PIN, Dowel
    PIN, Dowel
  • 14
    27-8M0118180 GASKET
    GASKET
  • 15
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 16
    10-82503395 SCREW, (M9 x 95)
    SCREW, (M9 x 95)
  • 17
    10-893745025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 18
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 19
    830294T1 BRACKET
    Handle
    BRACKET
    Handle
  • 20
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    Handle
    SCREW, (M6 x 13) Stainless Steel
    Handle
  • 21
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 22
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 23
    NSS NOT SOLD SEPARATE, Decal- Horse Power Identification
    NOT SOLD SEPARATE, Decal- Horse Power Identification
  • 24
    8M0026326 DEFLECTOR, Cowl
    DEFLECTOR, Cowl
  • 25
    10-8M0012661 SCREW
    SCREW
  • -
    27-825231A02 GASKET SET, Engine
    GASKET SET, Engine
  • -
    893714T05 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
